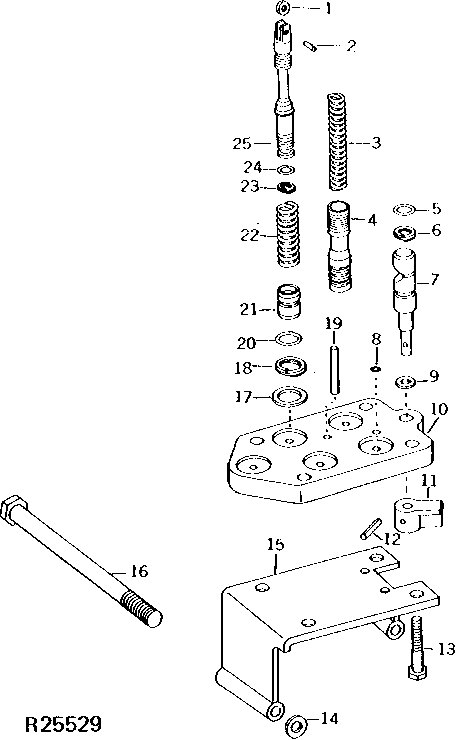

SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVE (EARLY DESIGN) [03E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R51409	4	SPACER	(SUB FOR R41613)
2	34H242	4	Spring Pin	1/8" X 7/16"
3	R41549	1	SPRING	-
4	R52549	1	SHUT-OFF VALVE	(SUB FOR R41154)
5	P46051	1	O-Ring	-
6	R40937	1	Back-Up Ring	-
7	R52547	1	VALVE	(SUB FOR R41333)
8	R34812	1	O-Ring	-
9	R41339	1	Shim	-
10	AR40688	1	COVER	(MARKED R49708)
11	R62652	1	Arm	(SUB FOR R41338)
12	34H231	1	SPRING PIN	3/32" X 3/4"
13	19H1800	4	Cap Screw	3/8" X 1-1/2"
13	19H1732	4	Cap Screw	3/8" X 1-1/4", (DUAL)
14	24H1111	1	Washer	17/32" X 1-1/16" X 0.090"
15	AR99025	1	BRACKET	(SUB FOR AR39162)
16	19H3597	2	CAP SCREW	1/2" X 4-3/4"
16	19H3542	2	Cap Screw	1/2" X 6-1/2", (HEAVY-DUTY REAR AXLE HOUSING)
17	R26149	6	PACKING	-
18	R41057	4	BACK-UP RING	-
19	34H284	1	Spring Pin	3/16" X 1-1/4"
20	R27166	4	O-Ring	-
21	R66416	4	Bushing	(SUB FOR R41156, THIS APPLICATION)
22	R65501	2	Spring	(SUB FOR R41055, THIS APPLICATION)
22	R65502	2	Spring	(SUB FOR R44310)
23	R26484	1	Back-Up Ring	(4 USED PRESSURE VALVE) (2 USED RETURN VALVE)
24	A3917R	1	O-Ring	(4 USED PRESSURE VALVE) (2 USED RETURN VALVE) (SUB FOR R65286, THIS APPLICATION)
25	AR86535	4	Valve	(SUB FOR AR52629, AR56120, AR70150 OR AR78396)

SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVE (EARLY DESIGN) [03E06]

Нет текстового описания
