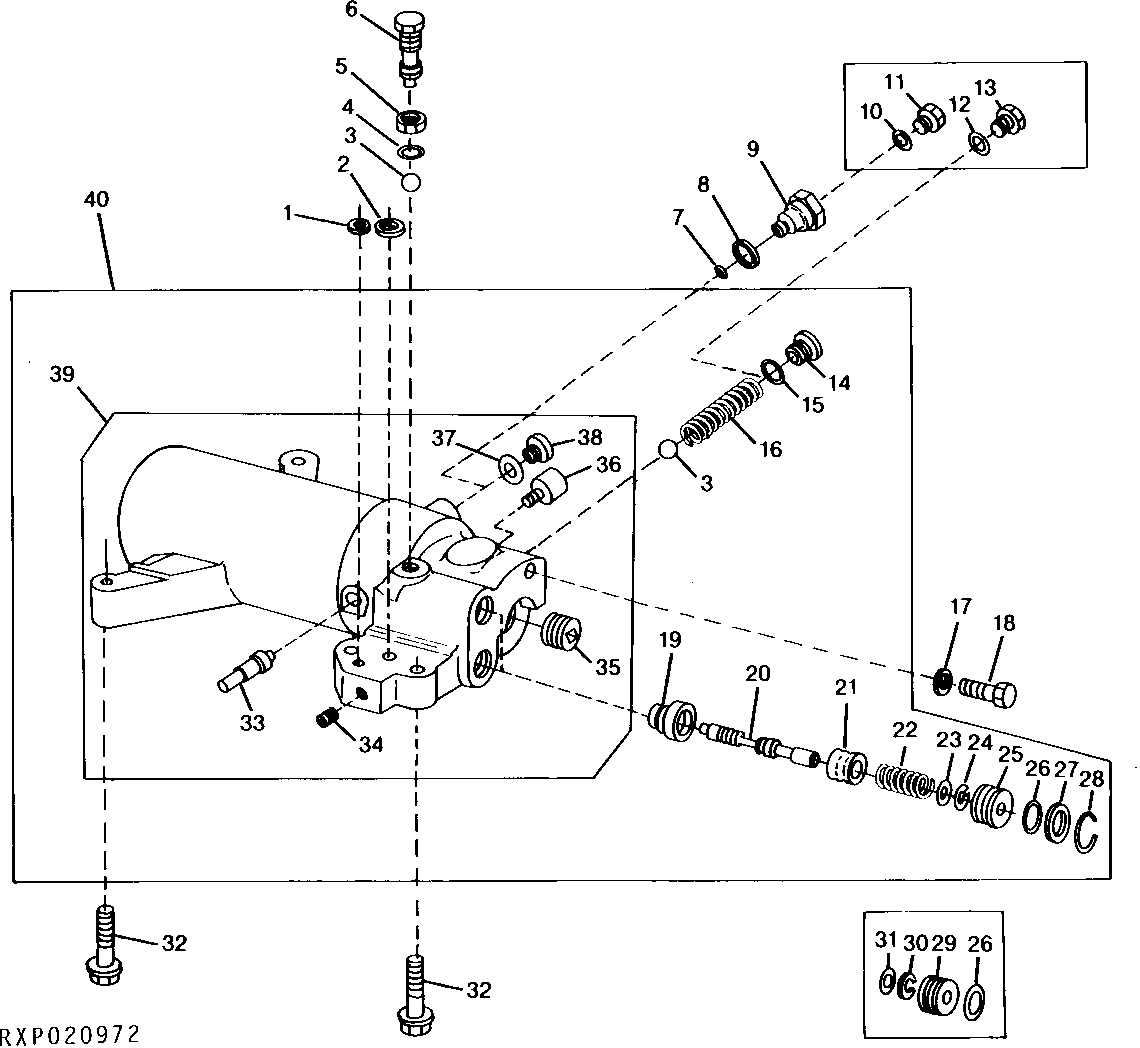

ROCKSHAFT CYLINDER AND VALVE HOUSING [03C14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L34383	1	Sealing Ring	(SUB FOR A4847R)
2	L34382	1	WASHER	-
3	D2361R	2	Ball	-
4	R26448	1	O-Ring	-
5	14H888	1	Nut	9/16"
6	T22471	1	SCREW	-
7	R26448	1	O-Ring	-
8	F1791R	1	WASHER	-
9	T21638	1	ADAPTER FITTING	(USE WITH R55137)
9	L62507	1	Adapter Fitting	(USE WITH L41725)
10	R26448	1	O-Ring	(USE WITH AR63911)
11	R27218	1	Fitting Plug	(USE WITH AR63911)
12	R26375	1	O-Ring	(USE WITH AR63911)
13	T22867	1	Drain Plug	(USE WITH AR63911)
14	T22867	1	Drain Plug	(USE WITH R55137)
14	L41384	1	Pipe Plug	(USE WITH L41725)
15	R26375	1	O-Ring	(USE WITH R55137)
15	L41383	1	Ring	(USE WITH L41725)
16	F3322R	1	SPRING	-
17	R26286	1	O-Ring	-
18	19H3217	1	Cap Screw	3/8" X 1-3/4"
19	T28538	2	VALVE SEAT INSERT	(ALSO ORDER R54969) (SUB FOR T22483)
20	R54969	2	VALVE SPOOL	(ALSO ORDER T28538) (SUB FOR T24484 OR T28537)
21	T24540	2	SLEEVE	-
22	R49648	2	SPRING	(SUB FOR A354R OR T19526)
23	L55203	2	O-RING	-
24	L56957	2	BACK-UP RING	-
25	L42314	2	PLUG	-
26	L55204	2	O-RING	(SUB FOR R65548)
27	L55202	2	Back-Up Ring	-
28	M3265T	2	SNAP RING	-
29	L34381	2	PLUG	(ORDER L42314, L55202, L55204, L56957, L55203) (SUB FOR T24485)
30	R31136	2	BACK-UP RING	-
31	R10093	2	O-Ring	-
32	R48593	4	CAP SCREW	-
33	L64852	1	Pin Fastener	(SUB FOR T22469)
34	15H559	1	Pipe Plug	1/4"
35	15H562	1	Pipe Plug	-
36	AT21781	1	VALVE	-
37	R26448	1	O-Ring	(USE WITH R55137)
37	L41536	1	O-Ring	(USE WITH L41725)
38	R27218	1	Fitting Plug	(USE WITH R55137)
38	L41726	1	Pipe Plug	(USE WITH L41725)
39	AR63911	1	HOUSING	(MARKED R55137) (SUB FOR AT20197) (ALSO ORDER R27218, R26448 AND F3322R) (SUB AL64830, F1791R, L41383, L41384, (2) L41536 AND L41538)
39	AL40888	1	HOUSING	(MARKED L41725) (SUB AL64830)
40	AL64830	1	COMPLETE GOODS/SHIP. BUNDLE	(MARKED L41725)
