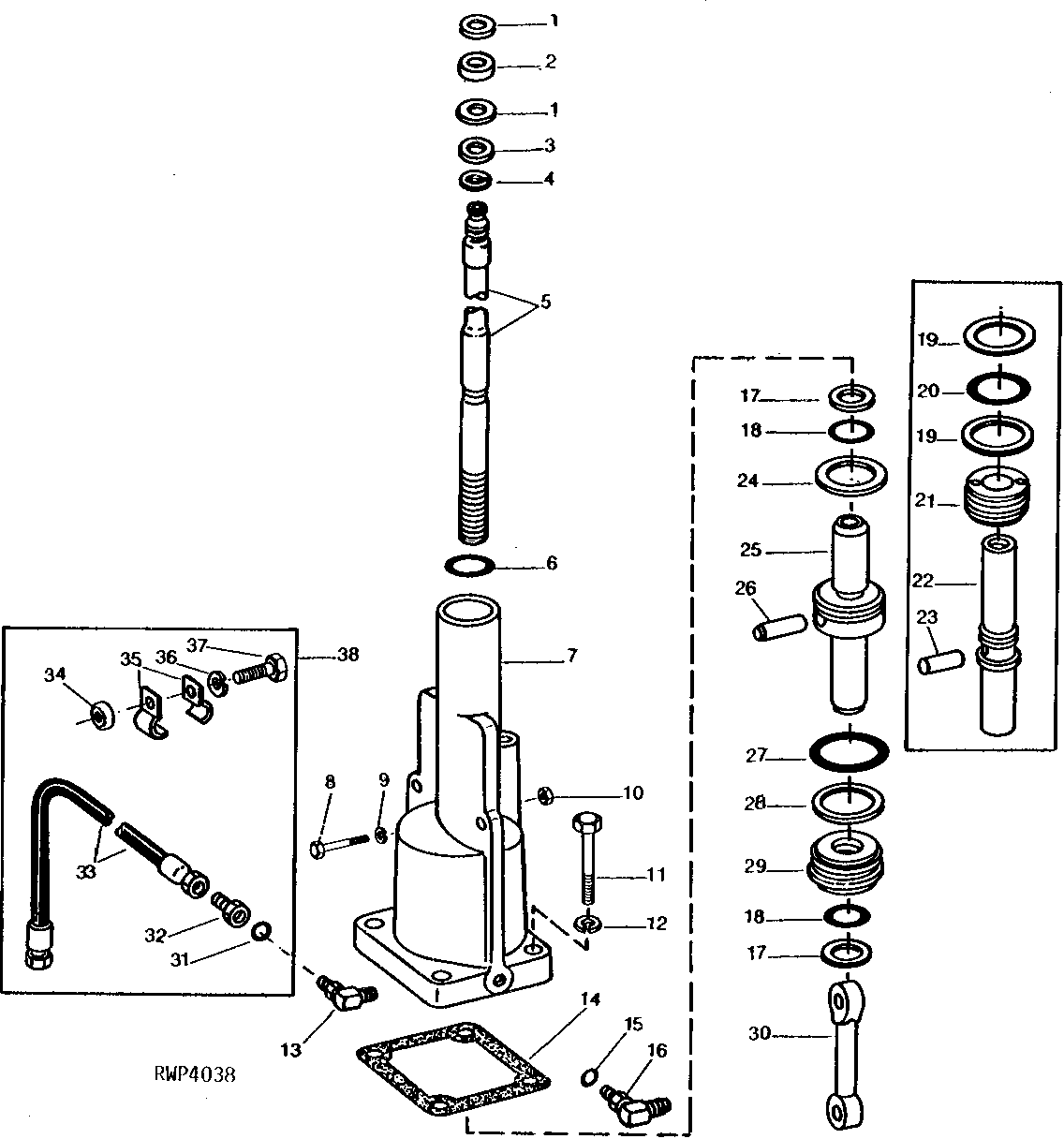

POWER STEERING VALVE HOUSING AND SHAFT [02I16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T25329	2	WASHER	-
2	JD9832	1	THRUST BEARING	-
3	T22824	1	BUSHING	-
4	R35226	1	SNAP RING	-
5	T34332	1	STEERING SHAFT	(FINE THREAD) (SUB R57446, T13555 AND L29197) (4-START)
5	R57446	1	STEERING SHAFT	(FINE THREAD) (SUB FOR T34332 OR R55484)
5	L29199	1	STEERING SHAFT	(A) (COARSE THREAD) (2-START)
6	L34451	6	O-Ring	(SUB FOR T25335, THIS APPLICATION)
7	AT23175	1	HOUSING	(MARKED T25295) (SUB RE10800)
8	19H1849	2	Cap Screw	5/16" X 1-1/4"
9	12H303	2	Lock Washer	5/16"
10	14H785	2	Nut	5/16"
11	19H1801	4	CAP SCREW	3/8" X 2"
12	12H304	4	Lock Washer	3/8"
13	AT37209	1	Elbow Fitting	(SUB AR89099)
14	R98910	1	GASKET	(SUB FOR T25337)
15	R26448	1	O-Ring	-
16	AT35121	1	Elbow Fitting	(SUB FOR AR26725)
17	T25327	2	BACK-UP RING	-
18	U10289	2	O-Ring	-
19	T25326	2	BACK-UP RING	-
20	F3450R	1	O-Ring	-
21	T25325	1	PISTON	(SUB R57292, THIS APPLICATION)
22	T34331	1	ROD	(SUB R60945, R60946 AND R57293)
22	T25323	1	ROD	(A) (SUB AL70300)
23	T21655	1	PIN	(SUB R60945, R60946 AND R57293)
24	R57293	1	SEAL	-
25	R60945	1	SHAFT	(ALSO ORDER R57293)
26	R60946	1	Dowel Pin	-
27	U12331	1	O-Ring	-
28	R35684	1	BACK-UP RING	-
29	T25336	1	GUIDE	-
30	T25324	1	TIE ROD ASSEMBLY	-
31	R26448	1	O-Ring	-
32	AT54132	1	CHECK VALVE	-
33	AH83485	1	HYDRAULIC HOSE - FABRICATE	-
34	28H1878	1	SPACER	3/8" X 7/16"
35	R35726	2	CLAMP	-
36	12H304	1	Lock Washer	3/8"
37	19H1801	1	CAP SCREW	3/8" X 2"
38	AR89099	1	VALVE	KIT, STEERING INLET CHECK VALVE, (SUB FOR AR63623)
