Открытый узел

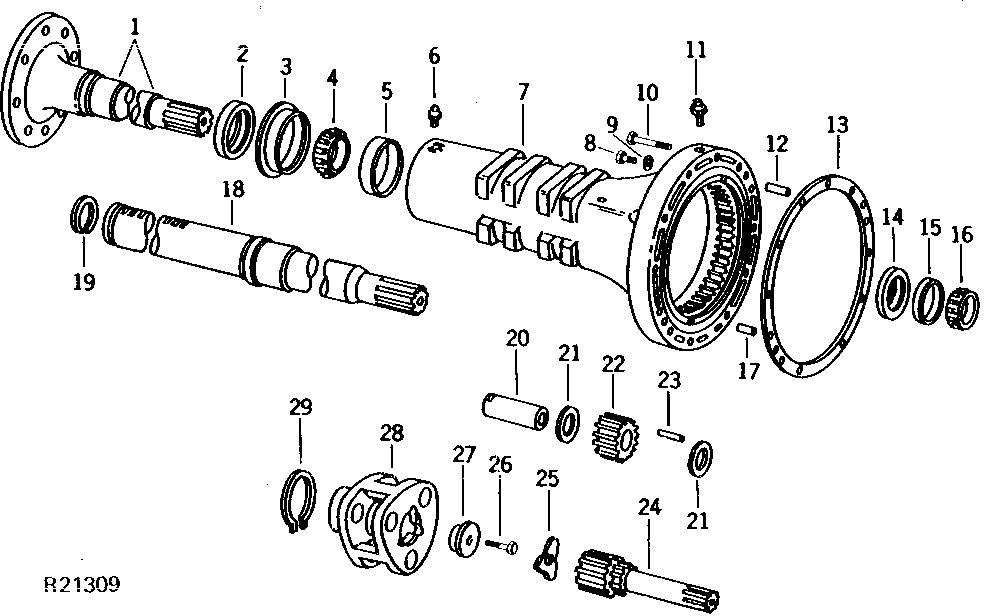

PLANETARY AND REAR AXLE [02I12]

PLANETARY AND REAR AXLE [02I12]

PLANETARY AND REAR AXLE [02I12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

PLANETARY AND REAR AXLE [02I12]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T21566	1	HALF AXLE	(660 MM (26") OR SMALLER TIRE)
1	T24519	1	SPINDLE	(C)
1	T24519	1	SPINDLE	-
1	T21570	1	SPINDLE	(711 MM (28") TIRE)
2	AT20703	1	SEAL	-
3	T21429	1	BOWL	-
4	JD8946	1	Bearing Cone	-
5	JD8206	1	Bearing Cup	-
6	JD7759	1	Lubrication Fitting	-
7	AT19626	1	HOUSING	(711 MM (28") TIRE) (MARKED T21411) (SUB AT22761)
7	AT19831	1	HOUSING	(660 MM (26") OR SMALLER TIRE) (MARKED T21565)
7	AR54321	1	HOUSING	(A) (C) (MARKED R50070) (SUB AT106668, R26287 AND R27216)
7	AT106668	1	HOUSING	(MARKED T105801) (WITH GEAR T125844 MARKED R57200) (ALSO ORDER R26287 AND R27216) (SUB FOR AR68402) (MARKED R55800)
8	R27216	1	DRAIN PLUG	-
9	R26287	1	O-Ring	-
10	19H1990	12	Cap Screw	1/2" X 2-1/4", (LESS REAR EXHAUST)
10	19H1990	11	Cap Screw	1/2" X 2-1/4", (REAR EXHAUST)
10	19H1974	1	Cap Screw	1/2" X 2-3/4", (REAR EXHAUST)
11	R21612	1	Bleed Valve	-
12	-	1	Part 20	(NLR)
13	R98915	1	GASKET	(SUB FOR T21419)
14	AT124397	1	SEAL	(C) (SUB FOR T21693)
14	AT20702	1	SEAL	(B)
14	AT124397	1	SEAL	(SUB FOR T21693)
15	JD8206	1	Bearing Cup	-
15	JD7425	1	Bearing Cup	(B)
15	JD8206	1	Bearing Cup	(C)
16	JD8147	1	Bearing Cone	(B)
16	JD9007	1	Bearing Cone	(C)
16	JD9007	1	Bearing Cone	-
17	T21428	3	DOWEL PIN	-
18	R54622	1	HALF AXLE	(711 MM (28") TIRE) (SUB FOR T21550) (NLA)
18	R54623	1	REAR AXLE	(C) (SUB FOR R49991)
18	R54623	1	REAR AXLE	-
19	R53656	1	Snap Ring	-
20	T21548	3	PINION SHAFT	(B)
20	T35793	4	SHAFT	(C)
20	T38049	1	PINION SHAFT	(3 USED, THREE-PINION) (4 USED, FOUR-PINION) (SUB T149083)
21	T21424	1	THRUST WASHER	(6 USED, THREE-PINION) (8 USED, FOUR-PINION)
22	T21547	1	GEAR	(3 USED, THREE PINION) (4 USED, FOUR-PINION)
23	T21418	1	PIN	(69 USED, THREE-PINION) (92 USED, FOUR-PINION)
24	T28908	1	DRIVE SHAFT	L.H. (SUB T71926)
24	T28907	1	DRIVE SHAFT	R.H. (SUB T71925)
25	T21427	1	LOCK PLATE	(B)
25	R49993	1	PLATE	(C)
26	L37325	1	CAP SCREW	-
27	L38057	1	WASHER	(SUB FOR T21423)
28	T21414	1	PLANET PINION CARRIER	(B)
28	R55779	1	PLANET PINION CARRIER	(B)
28	L33479	1	PLANET PINION CARRIER	(C) (SUB FOR R49992)
29	T21409	1	SNAP RING	(B)
29	T35791	1	SNAP RING	(C)
29	T35791	1	SNAP RING	-
