Открытый узел

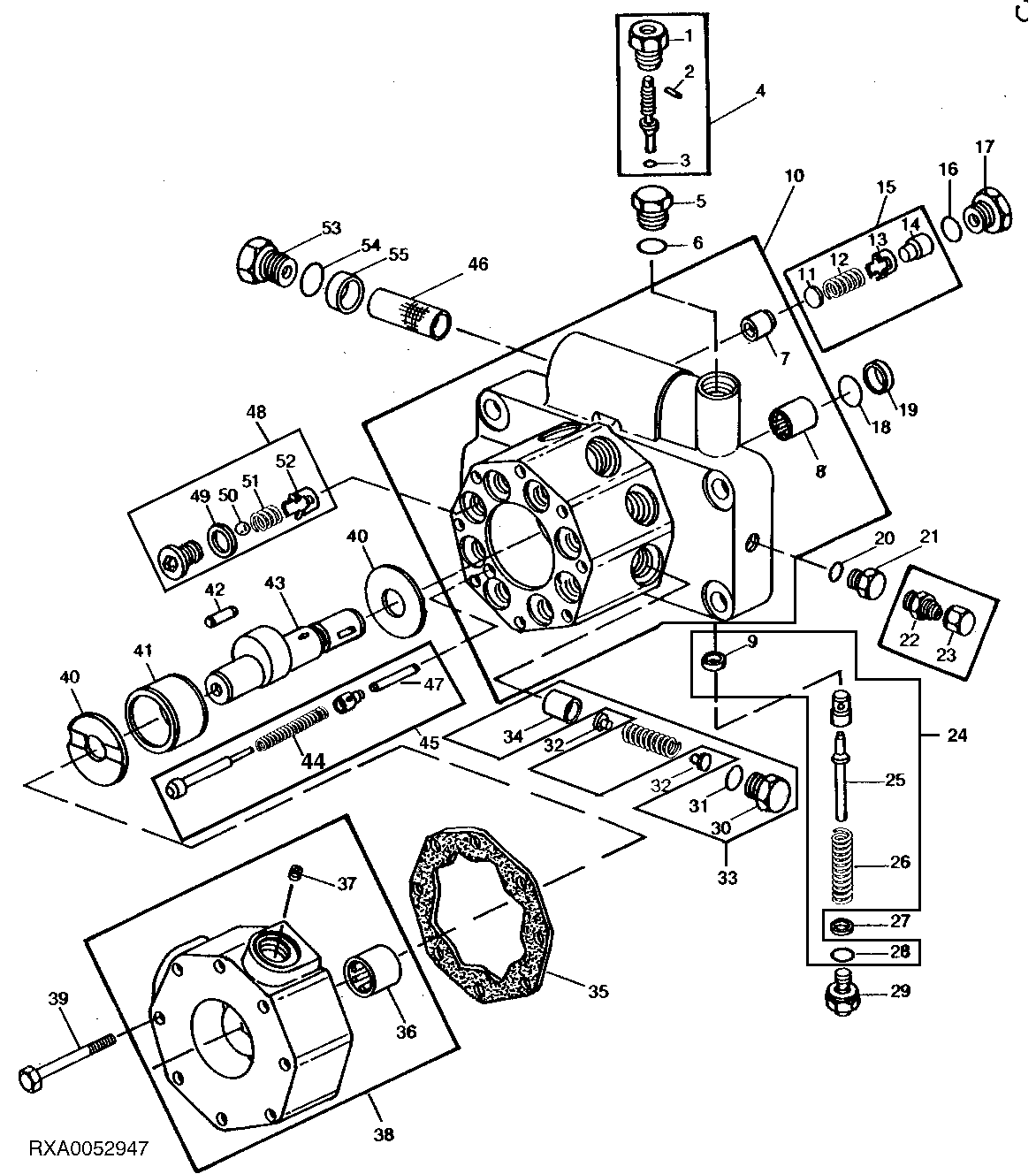

HYDRAULIC PUMP 23 CM3 (1.38 IN.3) [03B07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R38053	1	DRAIN PLUG	-
2	34H254	1	Spring Pin	1/8" X 1-1/2"
3	R30903	1	O-Ring	-
4	AR38225	1	Hydraulic Pump	(MANUAL DESTROKE) (OPTIONAL)
5	R39112	1	Fitting	(LESS MANUAL DESTROKE)
6	R26375	1	O-Ring	-
7	R105583	8	Valve Seat Insert	-
8	JD9858	1	NEEDLE BEARING	-
9	R72936	1	VALVE SEAT INSERT	(SUB AL71019) (SUB FOR R38041, R68502 OR R69302)
10	AR39170	1	HOUSING	(MARKED R39317 OR R60969) (SUB AR89075) (ALSO ORDER (2) R68382, R68381, R39112 AND R26375)
11	R49297	8	DISK	-
12	R39228	8	SPRING	-
13	R48738	8	GUIDE	-
14	R83508	8	Stop	(SUB FOR R49298 OR R72886)
15	RE23382	8	Valve	(OUTLET) (SUB FOR AR52785 OR AR96613)
16	R26375	8	O-Ring	-
17	R39112	8	Fitting	-
18	R39182	1	RING	-
19	AR39052	1	SEAL	-
20	R26286	1	O-Ring	-
21	R27094	1	Drain Plug	-
22	R27272	1	Fitting	-
23	R36926	1	FITTING	-
24	R68384	1	CONTROL VALVE	(SUB FOR R40756) (SUB AL71019)
25	R68383	1	GUIDE	(SUB FOR R39242) (SUB AL71019 AND AR103040)
26	R39240	1	SPRING	-
27	24M7096	1	Washer	10.500 X 18 X 1.600 MM
28	R26906	1	O-Ring	-
29	AR39106	1	SCREW	(SUB AR103040 AND AL71019)
30	R39112	8	Fitting	-
31	R26375	8	O-Ring	-
32	R39070	16	GUIDE	-
33	AL71018	1	Piston Kit	(SET OF 8) (SUB FOR AR39041)
34	R63022	8	PISTON	(ALSO ORDER R63629) (SUB FOR R39068)
35	L62442	1	Gasket	(SUB FOR R39178 OR R59234)
36	JD9858	1	NEEDLE BEARING	-
37	R39321	1	ORIFICE	-
38	AR90453	1	COVER	(MARKED R39318) (SUB FOR AR39173)
39	19H1944	8	Cap Screw	3/8" X 2-3/4"
40	R66164	2	THRUST WASHER	(SUB FOR R39016)
41	R63629	1	BEARING RACE	(ALSO ORDER (8) R63022) (SUB FOR R39017)
42	R39073	33	NEEDLE ROLLER	-
43	R39319	1	SHAFT	-
44	R68390	1	SPRING	(SUB FOR R31630)
45	AL71017	1	Valve Kit	(SUB FOR R39181)
46	R27173	1	FILTER ELEMENT	-
47	R39179	1	NEEDLE ROLLER	-
48	AL71016	8	Valve Kit	(SUB FOR R39075 OR R68553)
49	R26375	8	O-Ring	-
50	D2361R	8	Ball	-
51	R39078	8	Spring	-
52	R39076	8	Guide	-
53	R27175	1	Drain Plug	-
54	F3171R	1	O-Ring	-
55	R27174	2	PACKING	-
..	AR103033	1	HYDRAULIC PUMP	(SUB FOR AR39168 OR AR89064)

HYDRAULIC PUMP 23 CM3 (1.38 IN.3) [03B07]

Нет текстового описания
