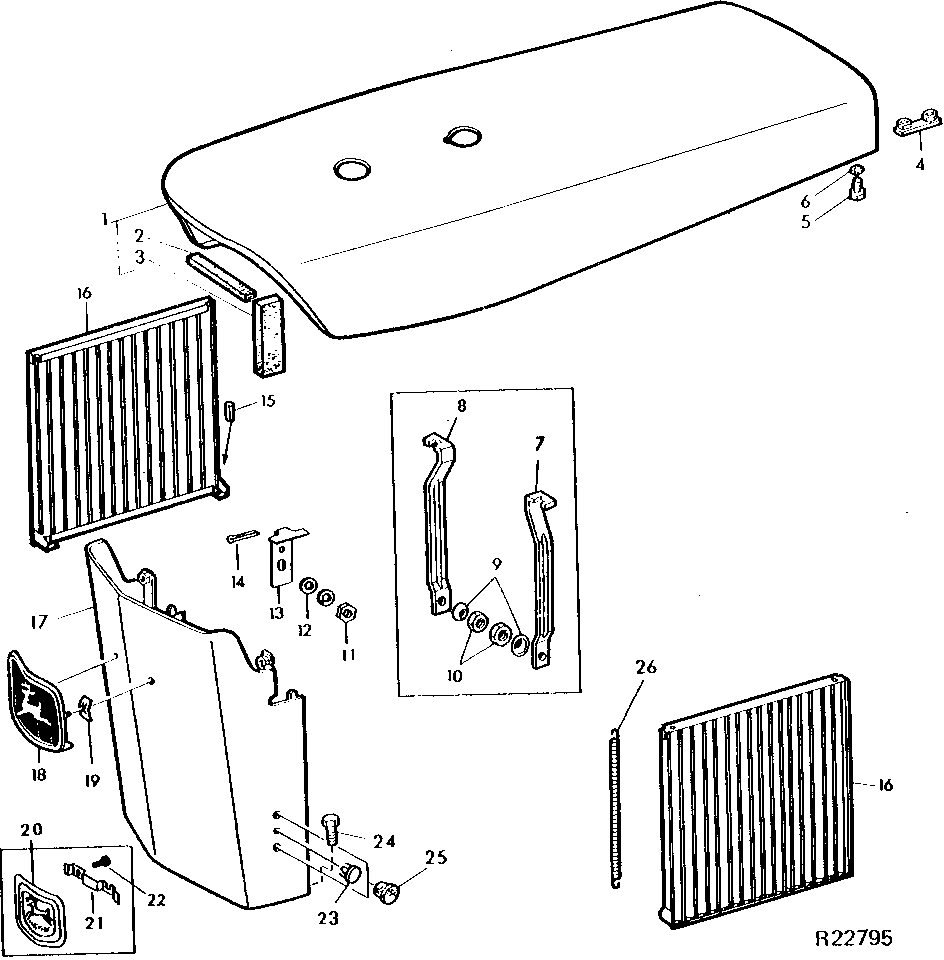

FRONT PLATE, HOOD AND GRILLE ASSEMBLY [03H08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR64004	1	HOOD	(HORIZONTAL EXHAUST)
1	AT19785	1	HOOD	(HORIZONTAL EXHAUST) (SUB AR64004 AND (2) R55211)
1	T22085	2	BUMPER	-
1	AR64003	1	HOOD	(VERTICAL EXHAUST) (ALSO ORDER (2) R55211) (ON "L" TRACTORS)
1	AT19787	1	HOOD	(VERTICAL EXHAUST) (SUB AR64003 AND (2) R55211)
2	T21491	2	ISOLATOR	RADIATOR TOP
3	R58666	2	ISOLATOR	RADIATOR SIDE
4	T25291	2	REINFORCEMENT	-
4	T25291	2	REINFORCEMENT	(A)
4	R55211	2	PLATE	-
5	19H1936	4	Cap Screw	3/8" X 3/4"
6	12H310	4	Lock Washer	3/8"
7	T21865	1	LATCH	L.H.
7	T21865	1	LATCH	(A) L.H.
8	T21864	1	LATCH	R.H.
8	T21864	1	LATCH	(A) R.H.
9	T21863	2	WASHER	-
9	T21863	2	WASHER	(A)
10	M63440	2	LOCK NUT	(SUB T11234)
10	M63440	2	LOCK NUT	(A) (SUB T11234)
11	14H812	2	NUT	3/8"
11	12H304	2	Lock Washer	3/8"
12	24H1302	2	Washer	13/32" X 11/16" X 0.035"
13	R59519	2	LATCH	(SUB FOR R49524)
14	11M7012	2	Cotter Pin	0.126" X 0.630"
15	34H340	4	SPRING PIN	5/16" X 13/16"
16	AT19880	2	GRILLE	-
17	AR71851	1	PLATE	(SUB FOR AT19774 OR AR64005) (ALSO ORDER (2) R59519 AND (2) 11H235) (NLA)
18	R59991	1	MEDALLION	(SUB FOR R55213) (SUB R67027)
19	L31750	2	CLIP	(SUB FOR R27888)
20	R48294	1	MEDALLION	-
21	R48295	1	RETAINER	-
22	37H29	2	Screw	5/16" X 5/8"
23	H84660	2	PLUG	(A) (SUB FOR P48093)
24	19H3530	9	Cap Screw	1/2" X 7/8"
25	99M5913	4	Plug	(A)
26	R26858	2	SPRING	-
