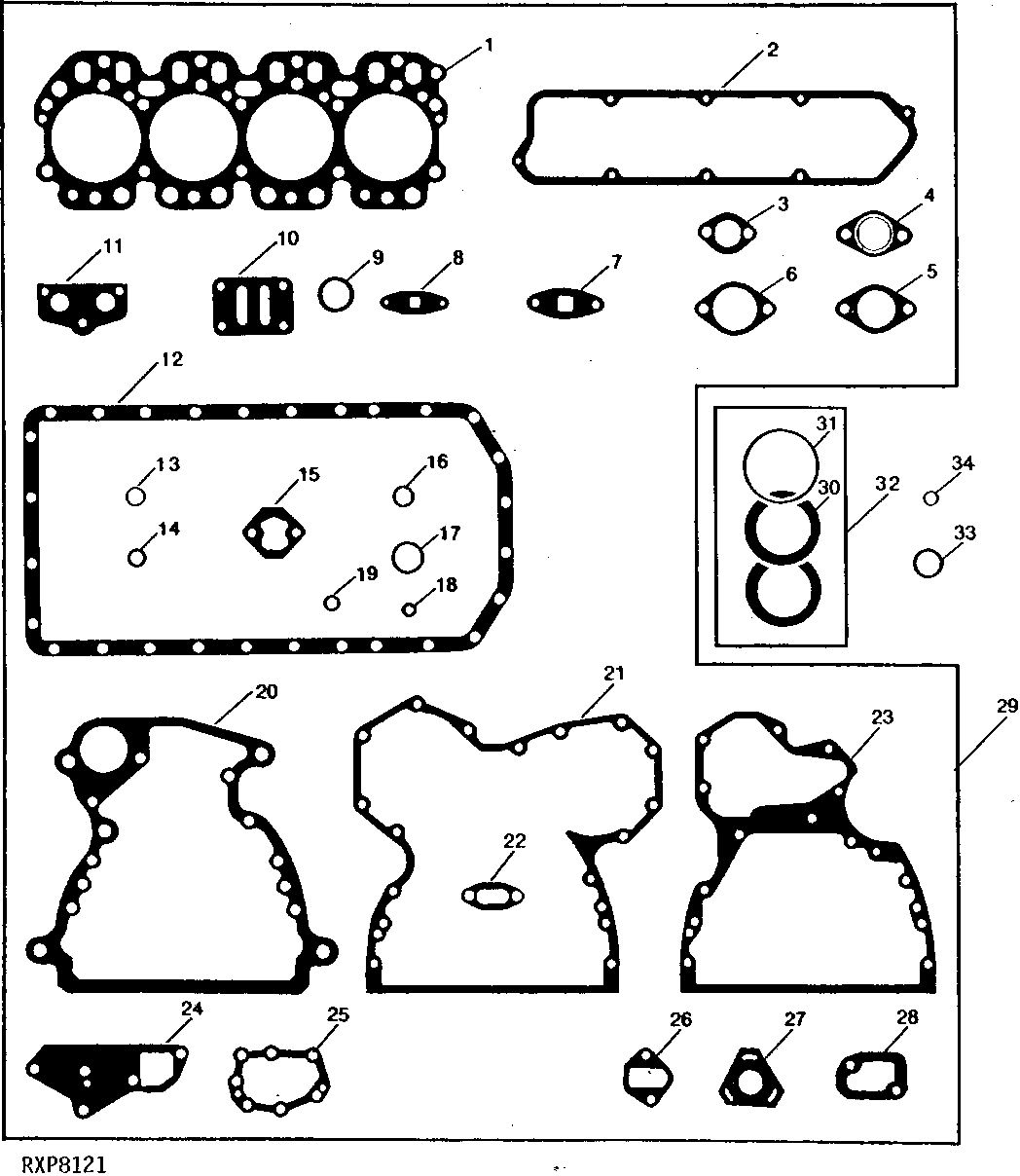

ENGINE OVERHAUL GASKET KIT (DIESEL) [01C19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R98461	1	ENGINE CYLINDER HEAD GASKET	(CYLINDER HEAD) (STANDARD) (SUB FOR T20040 OR R52790) (SUB R125863)
2	R73521	1	GASKET	(ROCKER ARM COVER) (ALSO ORDER (8) AR100124) (SUB FOR T20075)
3	R90658	4	Gasket	(SUB FOR T20006) (EXHAUST MANIFOLD)
4	R81275	1	Gasket	(AIR INLET) (SUB FOR T20159)
5	T20219	1	GASKET	(THERMOSTAT)
6	T20215	1	GASKET	(THERMOSTAT COVER)
7	R97348	1	GASKET	(SUB FOR R43413) (TURBO CHARGER OIL INLET)
8	R105346	1	Gasket	(SUB FOR R43416 OR R97349) (TURBO CHARGER OIL OUTLET)
9	R87627	8	O-RING	(VALVE STEM)
10	R89879	1	Gasket	(SUB FOR R55509) (TURBO CHARGER)
11	R54638	1	GASKET	(SUB R501373) (DUAL THERMOSTAT)
12	T24535	1	GASKET	(SUB R119360) (OIL PAN)
12	R97342	1	Gasket	(SUB FOR R49515) (OIL PAN)
13	T20304	1	WASHER	(TACHOMETER DRIVE SHAFT)
14	T13213	1	WASHER	(OIL DRAIN PLUG) (ALUMINUM)
15	R97350	1	GASKET	(FUEL PUMP)
16	T20328	1	Gasket	(OIL FILLER CAP)
17	R70956	1	Washer	(OIL COOLER)
18	R56463	1	O-Ring	(VENT OUTLET TUBE) (SUB FOR R495R, THIS APPLICATION)
19	R74354	1	O-Ring	(OIL PUMP OUTLET TUBE) (SUB FOR R27166, THIS APPLICATION)
20	R97351	1	Gasket	(FLYWHEEL HOUSING) (SUB FOR T23596, R49516 OR R70483)
21	R119269	1	GASKET	(TIMING GEAR COVER) (SUB FOR T20155 OR R97454)
22	R97352	1	Gasket	(SUB FOR T20336) (OIL FILTER INLET)
23	R90648	1	GASKET	(CYLINDER BLOCK PLATE) (SUB FOR T24965) (SUB R131794)
24	T20243	1	Gasket	(WATER PUMP COVER)
25	T20273	1	GASKET	(TIMING GEAR COVER OPENING COVER)
26	R97773	1	GASKET	(INJECTION PUMP GEAR COVER) (SUB FOR T20364, R69260 OR R78366) (SUB R125066)
27	R97354	1	Gasket	(SUB FOR R77126) (INJECTION PUMP TO CYLINER BLOCK PLATE)
28	R54641	1	Gasket	(DUAL THERMOSTAT)
29	RE38857	1	GASKET KIT	(SUB FOR AT24968, AR53371, AR71998, AR79923, AR97191, AR100424 OR RE16922, RE38857) (ALSO ORDER R125066)
30	T32344	4	O-RING	(CENTER) (USE WITH AR71618)
30	R26121	4	O-Ring	(CENTER) (USE WITH AR65507)
31	R48768	4	WASHER	(UPPER) (USE WITH AR71618)
31	R48767	4	Packing	(UPPER) (USE WITH AR65507)
32	AR71618	4	KIT	(O-RING) (FOR 4.02" BORE)
32	AR65507	4	O-Ring Kit	(O-RING) (FOR 4.19" BORE)
33	R48000	4	Seal	(INJECTION NOZZLE - LOWER) (SUB FOR R34767)
34	R34764	4	WASHER	(INJECTION NOZZLE - UPPER)
