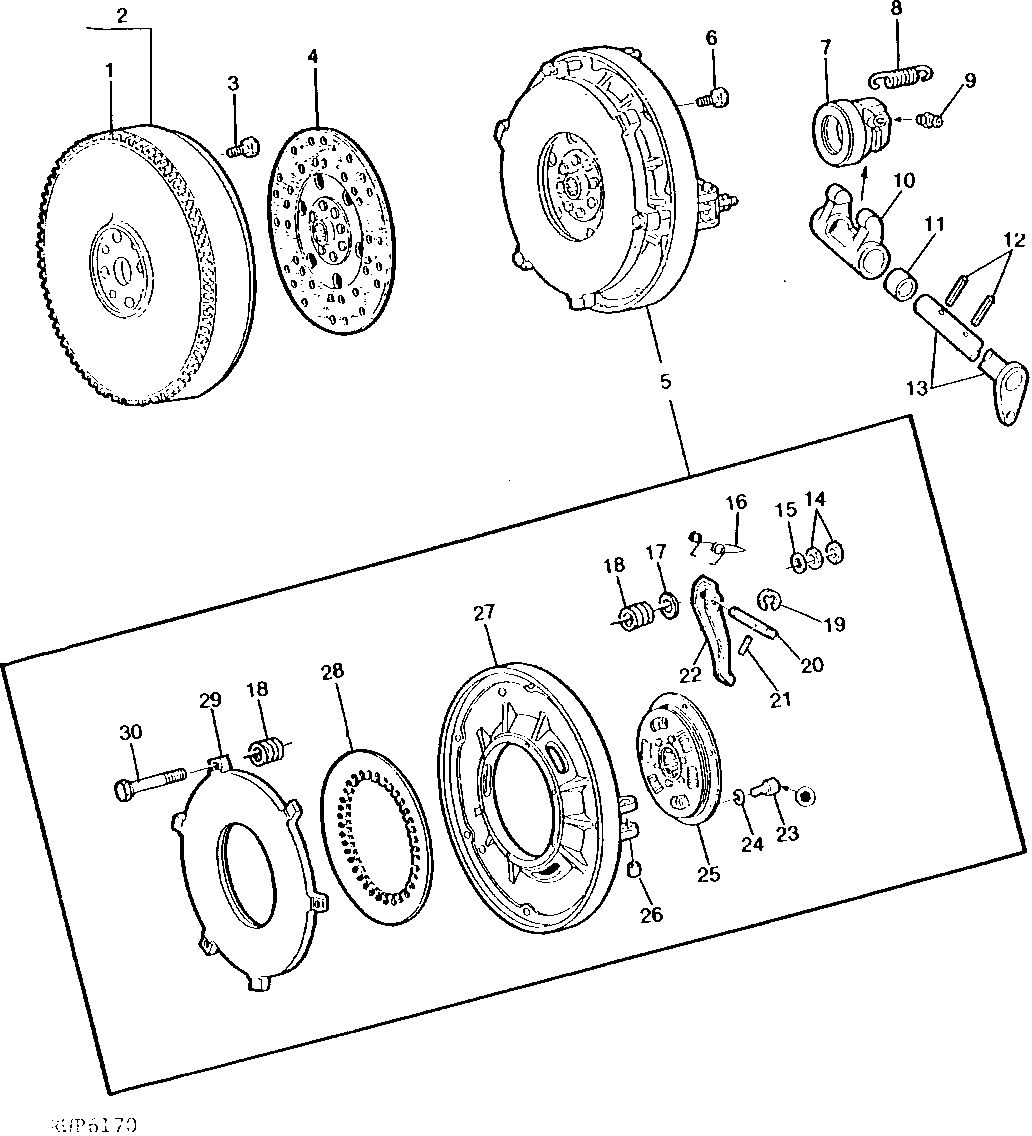

ENGINE CLUTCH (INDEPENDENT PTO) [02F12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20088	1	GEAR	-
2	AT21382	1	FLYWHEEL	-
3	R46162	4	SCREW	-
4	RE29881	1	CLUTCH DISK	(SUB FOR AR66923)
5	AL39618	1	CLUTCH PLATE	(SUB FOR AL19084 OR AL32965) (SUB AL56167)
5	AL56167	1	CLUTCH	(SUB FOR AL39618)
6	19H3219	6	Cap Screw	3/8" X 1-3/8"
7	AT24699	1	BEARING	(SUB R51469 AND AR43065)
8	T21450	1	EXTENSION SPRING	-
9	T27178	1	LUBRICATION FITTING	-
10	T21999	1	FORK	-
11	T21446	1	BUSHING	-
12	34H353	2	SPRING PIN	3/8" X 1-3/4"
13	AT19837	1	SHAFT	(SUB FOR AR101631)
14	T29649	6	NUT	-
15	T29650	3	WASHER	-
15	L56083	3	WASHER	(B)
16	T28230	3	SPRING	(SUB AL60270)
16	L55214	3	TORSION SPRING	(B)
17	L41589	3	WASHER	(A)
18	L41588	3	COMPRESSION SPRING	(A)
19	L38513	6	SNAP RING	(SUB T28231)
20	T28222	3	PIN	-
20	L41387	3	PIN FASTENER	(A) (SUB L55215)
20	L55215	3	PIN	(B)
21	T28226	3	SPRING PIN	-
21	34M7010	3	Spring Pin	(A) (B) 3 X 20 MM
22	T28221	3	LEVER	(SUB AL60272) ( AL60272 CONTAINS (3) LEVERS)
22	L56084	3	LEVER	(A) (SHEET METAL) (SUB FOR L41386)
22	L56084	3	LEVER	(B) (CAST)
23	L27184	6	SCREW	-
24	12M7135	6	Lock Washer	10 MM
25	AL32964	1	TORSIONAL DAMPENER	(SUB FOR AL19085)
26	T28225	6	BUSHING	(SUB FOR L27183)
27	L27185	1	PLATE	-
27	L38511	1	PLATE	(A) (B)
28	L39302	1	DIAPHRAGM	(SUB FOR L29246)
28	L56085	1	DISK SPRING	(B)
29	L39950	1	CLUTCH PLATE	(SUB FOR L27182)
30	T29648	3	CAP SCREW	-
30	L41388	3	CAP SCREW	(A) (B)

ENGINE CLUTCH (INDEPENDENT PTO) [02F12]

Нет текстового описания
