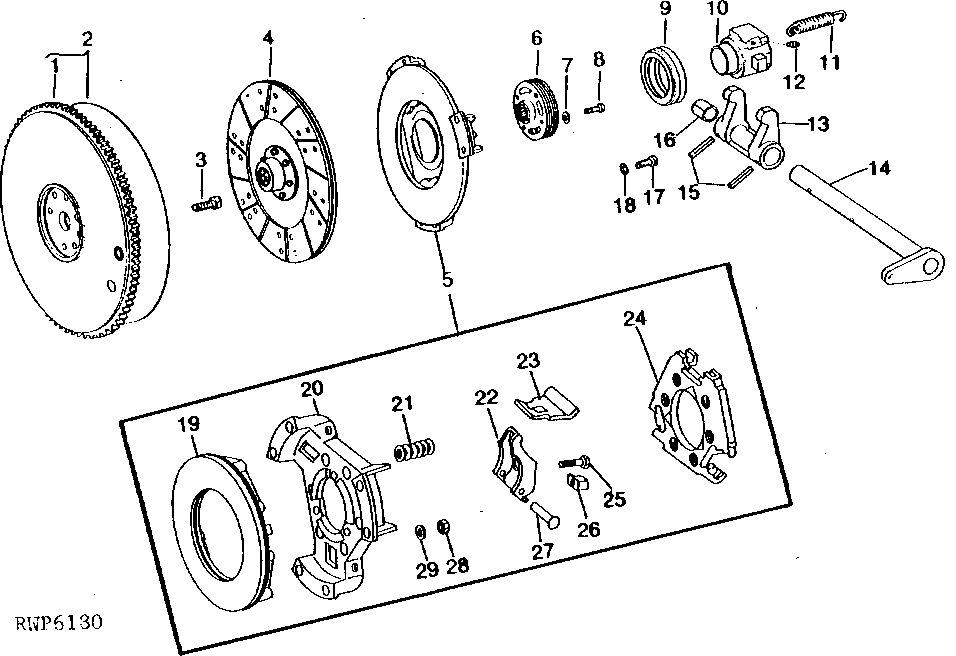

ENGINE CLUTCH AND FLYWHEEL (INDEPENDENT PTO) (LESS REVERSER) [02F16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20088	1	GEAR	-
2	AT29695	1	FLYWHEEL	(NLA)
2	AR66781	1	FLYWHEEL	-
3	R46162	4	SCREW	(SUB FOR T20139)
4	AR66925	1	DISK	(SUB FOR AT32209) (SUB RE29880)
5	AR71587	1	PLATE	(GASOLINE) (ALSO ORDER R51469 AND AR43065) (SUB FOR AT30045)
5	AT30046	1	PLATE	(A) (SUB AR100649)
5	AR100649	1	CLUTCH	(A) (SUB FOR AR63784 AND AR76395)
6	AT29700	1	ABSORBER	(A) (SUB AR100649)
7	24H1136	3	Washer	(A) 11/32" X 11/16" X 0.065"
8	19H2020	3	Cap Screw	(A) 5/16" X 1/2"
9	AR43065	1	THRUST BEARING	(ALSO ORDER R51469) (SUB FOR AT17464)
10	R51469	1	PLANET PINION CARRIER	(ALSO ORDER AR43065) (SUB FOR T23011)
11	T21450	1	EXTENSION SPRING	-
12	JD7797	1	Lubrication Fitting	1/4", (USE WITH T23011)
13	T21999	1	FORK	-
14	AT19837	1	SHAFT	(SUB FOR AR101631)
15	34H353	2	SPRING PIN	3/8" X 1-3/4"
16	T21446	1	BUSHING	-
17	L372T	6	CAP SCREW	-
18	12H303	6	Lock Washer	5/16"
19	R55038	1	PLATE	-
20	T35299	1	BRACKET	-
21	T35295	6	SPRING	-
22	T35301	3	LEVER	-
23	T35298	3	LINK	-
24	T35300	1	RING	-
25	T35294	3	BOLT	-
26	T35296	3	CLAMP	-
27	T35297	3	PIN	-
28	14H882	3	Nut	5/16"
29	T15940	3	WASHER	-

ENGINE CLUTCH AND FLYWHEEL (INDEPENDENT PTO) (LESS REVERSER) [02F16]
