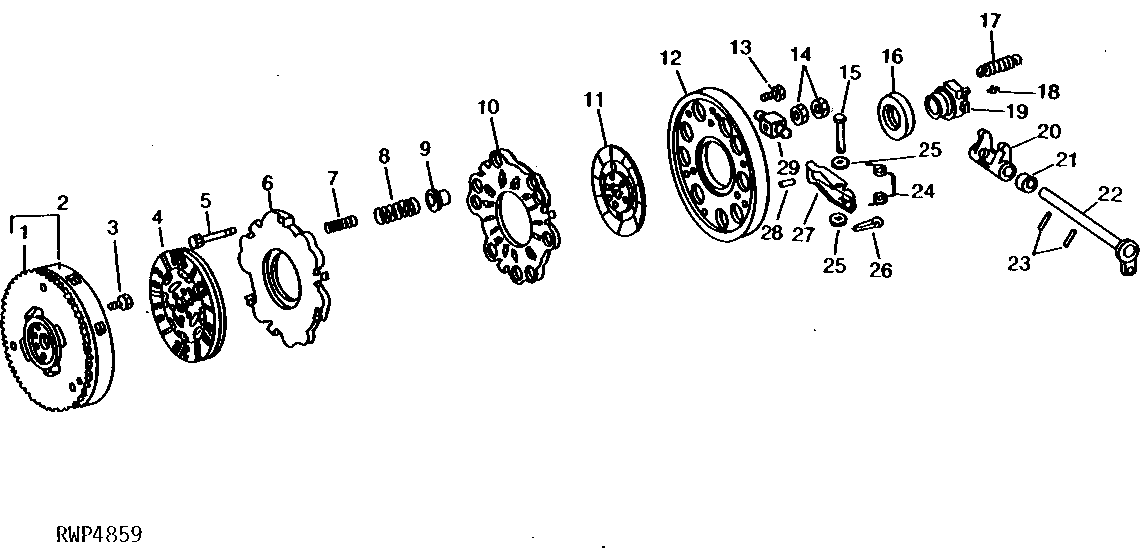

ENGINE AND PTO CLUTCH AND FLYWHEEL (CONTINUOUS DRIVEN PTO) [02F17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20088	1	GEAR	-
2	AT21381	1	FLYWHEEL	-
2	AR66779	1	FLYWHEEL	-
3	T20306	4	CAP SCREW	-
4	AR66923	1	CLUTCH DISK	(SUB FOR AT32207) (SUB RE29881)
5	T23008	3	BOLT	-
6	T22194	1	CLUTCH PLATE	-
7	R38185	9	Spring	(SUB FOR R26638)
8	T22927	9	SPRING	-
9	R27033	9	ROUND RETAINER	-
10	T22195	1	CLUTCH PLATE	-
11	AL19092	1	CLUTCH	(A) (SUB FOR AT21675)
11	AT20916	1	CLUTCH DISK	(B)
12	T27706	1	COVER	-
13	19H3219	6	Cap Screw	3/8" X 1-3/8"
14	14H774	6	Nut	3/8"
15	T27708	3	PIN FASTENER	-
16	AR43065	1	THRUST BEARING	(SUB FOR AT17464)
17	T21450	1	EXTENSION SPRING	-
18	JD7797	1	Lubrication Fitting	1/4"
19	R51469	1	PLANET PINION CARRIER	(ALSO ORDER AR43065) (SUB FOR T23011)
20	T21999	1	FORK	-
21	T21446	1	BUSHING	-
22	AT19837	1	SHAFT	(SUB FOR AR101631)
23	34H353	2	SPRING PIN	3/8" X 1-3/4"
24	T27707	3	SPRING	-
25	24H1325	6	Washer	15/32" X 59/64" X 0.065"
26	11M7059	3	Cotter Pin	3.200 X 20 MM
27	R96514	3	LEVER	(SUB FOR T22197)
28	T24381	3	DOWEL PIN	-
29	T21932	3	BAR	-

ENGINE AND PTO CLUTCH AND FLYWHEEL (CONTINUOUS DRIVEN PTO) [02F17]

Нет текстового описания
