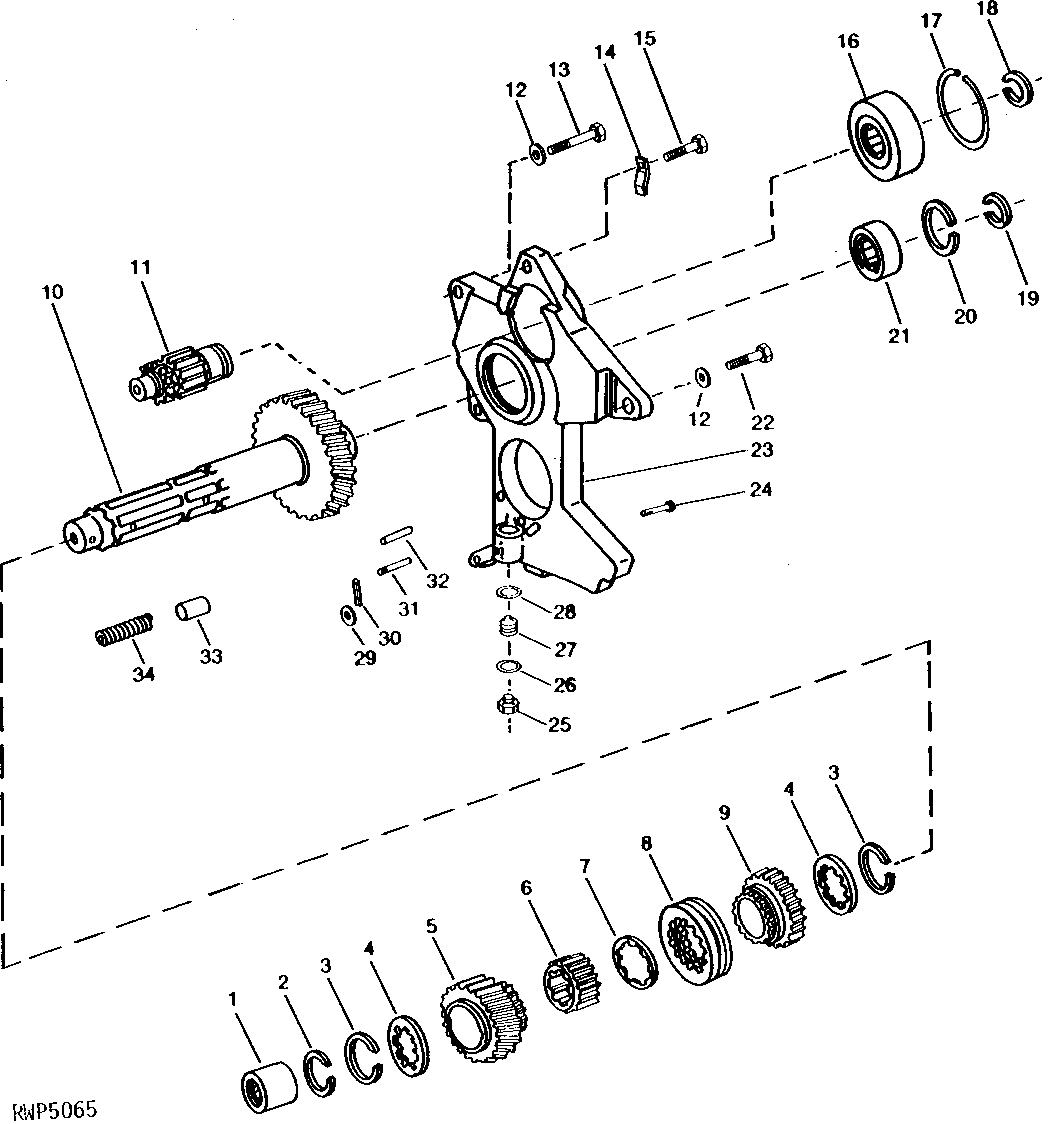

COUNTERSHAFT AND BEARING SUPPORT (INDEPENDENT PTO) [02H14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD9822	1	NEEDLE BEARING	(C)
1	JD9822	1	NEEDLE BEARING	-
1	JD9878	1	NEEDLE BEARING	-
2	R34399	1	Snap Ring	-
2	R34399	1	Snap Ring	(C)
2	L29048	1	SNAP RING	-
3	T19242	2	SNAP RING	-
4	T19245	2	THRUST WASHER	-
5	T30065	1	GEAR	LOW RANGE
6	T21964	1	SLEEVE	-
7	R55721	1	THRUST WASHER	(SUB FOR T24730)
8	R50655	1	SHIFT COLLAR	-
9	T21981	1	GEAR	REVERSE RANGE
10	T24726	1	COUNTERSHAFT	-
10	T24726	1	COUNTERSHAFT	(C)
10	R56615	1	COUNTERSHAFT	-
11	R67341	1	GEAR	(A) (SUB FOR T24728 OR R65576)
11	R65577	1	STEERING GEAR	(B) (SUB FOR T25620) (SUB R67338)
12	R1870R	2	Washer	(SUB R57696)
13	19H1801	2	CAP SCREW	3/8" X 2"
14	T24736	1	CLAMP	-
15	19H1732	1	Cap Screw	3/8" X 1-1/4"
16	JD7674	1	BALL BEARING	(A)
16	JD9361	1	BALL BEARING	(B)
17	T24737	1	SNAP RING	-
18	T25621	1	SNAP RING	(B)
18	A364R	1	Snap Ring	(A)
19	F215R	1	RING	-
20	B190R	1	SNAP RING	-
21	JD9258	1	Ball Bearing	(SUB FOR JD9465)
22	19H1731	1	Cap Screw	3/8" X 1"
23	AR78203	1	SUPPORT	(MARKED R63296) (ALSO ORDER L31514) (SUB FOR T30749 OR AR67704)
23	AR78202	1	SUPPORT	(ALSO ORDER L31514 AND L31515) (SUB FOR AR66561) (MARKED R53064 OR L31516)
24	N6704DN	1	Pin Fastener	-
25	R51912	1	FITTING	(SUB FOR R44823)
25	R53066	1	FITTING PLUG	-
26	U17409	1	O-Ring	-
26	R27149	1	O-Ring	-
27	T30758	1	PISTON	-
27	R53065	1	PISTON	-
28	P42061	1	O-Ring	-
28	R27928	1	O-Ring	-
29	U13489	1	WASHER	-
30	11M7059	1	Cotter Pin	3.200 X 20 MM
31	R26822	1	PIN FASTENER	-
31	R53072	1	PIN	-
32	H826R	1	DOWEL PIN	-
33	T21969	2	FRICTION PLUG	-
34	T24732	2	SPRING	-
