BATTERY AND BATTERY CABLES [02B10]

BATTERY AND BATTERY CABLES [02B10]

BATTERY AND BATTERY CABLES [02B10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

BATTERY AND BATTERY CABLES [02B10]

Нет текстового описания

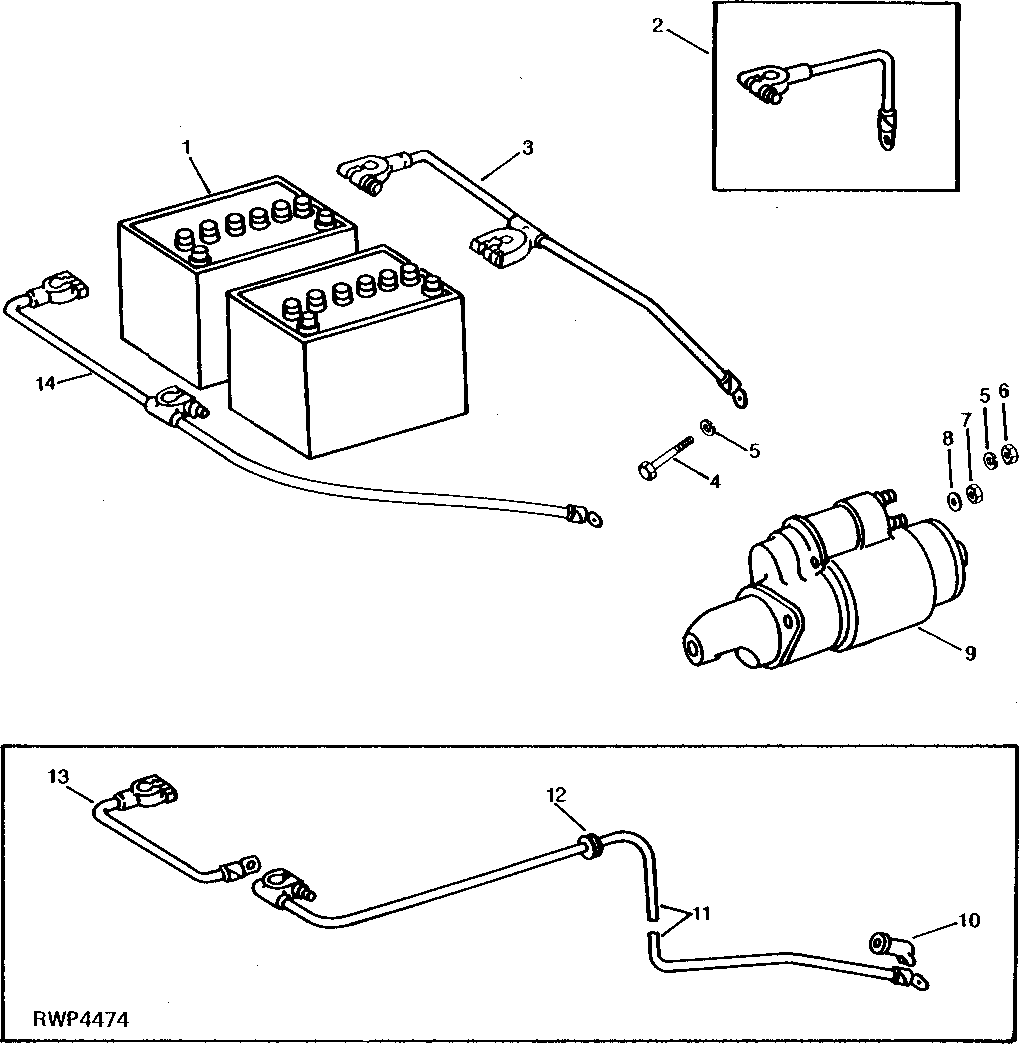

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY21730	1	DRY CHARGED BATTERY	(1 USED GASOLINE OR DIESEL) (2 USED DIESEL) (12-VOLT) 420 COLD CRANKING AMPS AT -18°C (0°F) 70 MINUTE RESERVE CAPACITY AT 25 AMPS, (SUB FOR AT29157 OR AR67338)
1	AT29157	1	BATTERY	(GASOLINE) (12-VOLT) 250 COLD CRANKING AMPS AT -18°C (0°F) 59 MINUTE RESERVE CAPACITY AT 25 AMPS, (SUB TY21730)
2	AR67453	1	BATTERY CABLE	(B) (D) (SUB RE14515 OR RE14513, THIS APPLICATION) (SUB FOR AT20751) (2 BATTERIES, DIESEL)
2	AT18702	1	GROUND CABLE	(A) (B) (D) (SUB RE14515 OR RE14513, THIS APPLICATION) (SUB FOR AT20749)
3	RE14513	1	BATTERY CABLE	(B) (D) (SUB FOR AR67453, THIS APPLICATION)
3	RE14515	1	CABLE	(A) (D) (SUB FOR AR67453, THIS APPLICATION) (SUB AT14764)
4	19H2021	1	Cap Screw	3/8" X 5/8"
5	12H304	3	Lock Washer	3/8"
6	14H732	1	Nut	3/8"
7	14H605	1	Nut	0.164"
8	T19603	1	LOCK WASHER	-
9	TY6702	1	STARTER MOTOR	(DIESEL) (DELCO-REMY) (REMANUFACTURED)
9	TY6706	1	STARTER MOTOR	(GASOLINE) (REMANUFACTURED) (SUB FOR TY6639, AT18150 OR AT91813)
9	AR91813	1	STARTER MOTOR	(GASOLINE) (DELCO-REMY NO. 1109421 OR 1109576) (SUB FOR AT18025) (SUB TY6706)
9	TY6720	1	STARTER MOTOR	(DIESEL) (R. BOSCH) (REMANUFACTURED) (SUB FOR AT23401 OR AR70436)
9	AR70436	1	STARTER MOTOR	(DIESEL) (R. BOSCH) (SUB TY6720, THIS APPLICATION)
9	AT23401	1	STARTER MOTOR	(DIESEL) (R. BOSCH) (SUB TY6720)
9	RE62916	1	Starter Motor Kit	(DIESEL) (DELCO-REMY) (SUB FOR AT18150, AT25619, RE19187, RE42730 OR RE50095)
10	R30964	1	Cover	-
11	AR103525	1	BATTERY CABLE	(B) (C) (SUB RE14512, THIS APPLICATION) (SUB FOR AR70711, T21887 OR T21888)
11	AR103525	1	BATTERY CABLE	(A) (C)
12	R40445	1	Grommet	-
13	T21889	1	BATTERY CABLE	(B) (C) (DIESEL)
14	RE14512	1	BATTERY CABLE	(B) (C) (SUB FOR AR103525, THIS APPLICATION) (SUB FOR AR70711)
..	R60035	6	ADAPTER FITTING	(WITH ROLL-GARD) (SUB FOR AR72847)
