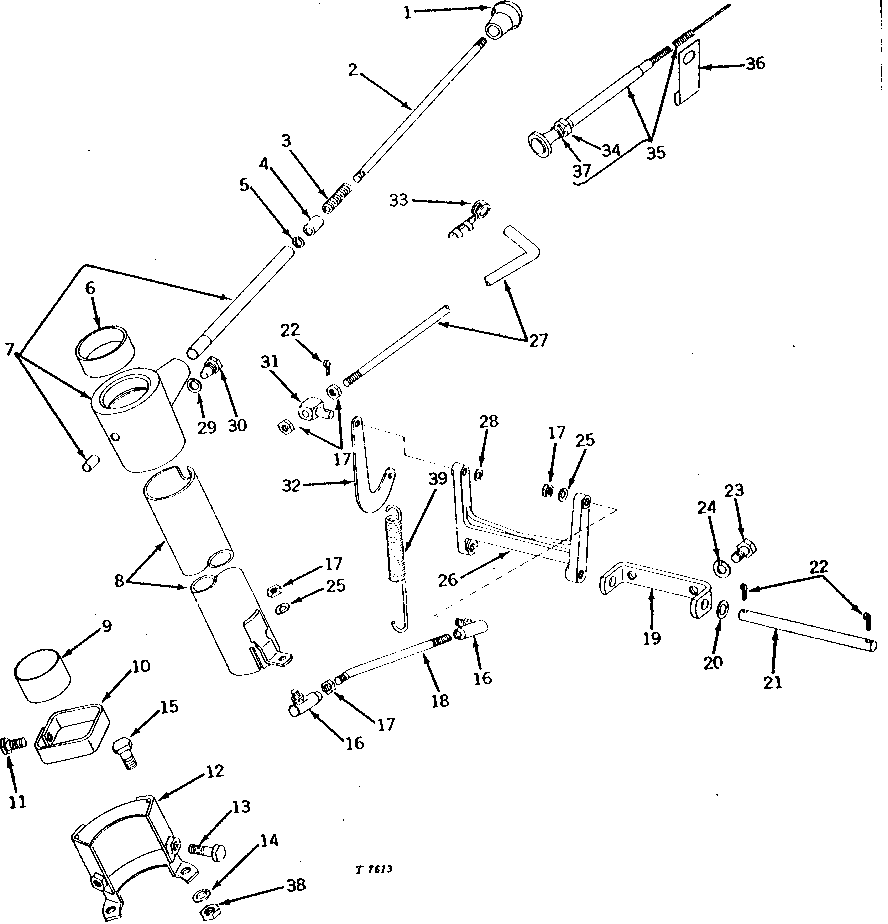

THROTTLE CONTROL (HAND OPERATED) (GASOLINE AND LP-GAS) [01F13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26670	1	KNOB	-
2	R38376	1	LEVER	(ALSO ORDER R38377) (SUB FOR T15179)
3	R28009	1	SPRING	-
4	R26952	1	GUIDE	(SUB R38376 AND R38377)
5	R30828	1	SNAP RING	-
6	R27075	1	BUSHING	-
7	AT16821	1	LEVER	(MARKED T19156) (SUB FOR AR26614 OR AR30472)
8	AT12866	1	TUBE	(A) (C) (NLA)
8	AT16597	1	TUBE	(A) (C) (NLA)
8	AT12959	1	TUBE	(B) (NLA)
8	AT16598	1	TUBE	(B) (NLA)
9	R105811	1	ISOLATOR	(SUB FOR R26958)
10	AR26613	1	CLAMP	-
11	19H1227	1	Cap Screw	1/4" X 1/2"
12	AT12867	1	BRACKET	(NLA)
13	19H3512	2	Cap Screw	1/4" X 1-1/4"
14	12H304	2	Lock Washer	3/8", (LESS POWER STEERING)
15	19H1731	2	Cap Screw	3/8" X 1", (LESS POWER STEERING)
16	T23688	2	BALL JOINT	(SUB FOR AL2096T)
17	14H649	5	Nut	1/4"
18	T18435	1	LEVER	(NLA)
18	T14106	1	LEVER	(NLA)
19	T14110	1	BRACKET	(NLA)
20	24H1290	2	Washer	21/64" X 3/4" X 0.035"
21	T14109	1	PIN FASTENER	(NLA)
22	11M7079	3	Cotter Pin	0.098" X 0.472"
23	19H1900	2	Cap Screw	5/16" X 3/4"
24	12H303	2	Lock Washer	5/16"
25	12H302	2	Lock Washer	1/4"
26	T14108	1	CLEVIS	(NLA)
27	T18579	1	ROD	(SUB FOR T14107) (NLA)
28	24H1286	1	Washer	9/32" X 1/2" X 1/16"
29	12H304	1	Lock Washer	3/8"
30	R28007	1	BOLT	-
31	A4948R	1	SWIVEL	-
32	T18580	1	ARM	(NLA)
33	R26491	1	CLIP	-
34	14H774	1	Nut	3/8"
35	AT21782	1	PUSH PULL CABLE	(SUB FOR AM1799T)
36	T12441	1	CLIP	(NLA)
37	12H310	1	Lock Washer	3/8"
38	14H1076	2	Nut	3/8"
39	M2112T	1	Spring	-

THROTTLE CONTROL (HAND OPERATED) (GASOLINE AND LP-GAS) [01F13]

Нет текстового описания
