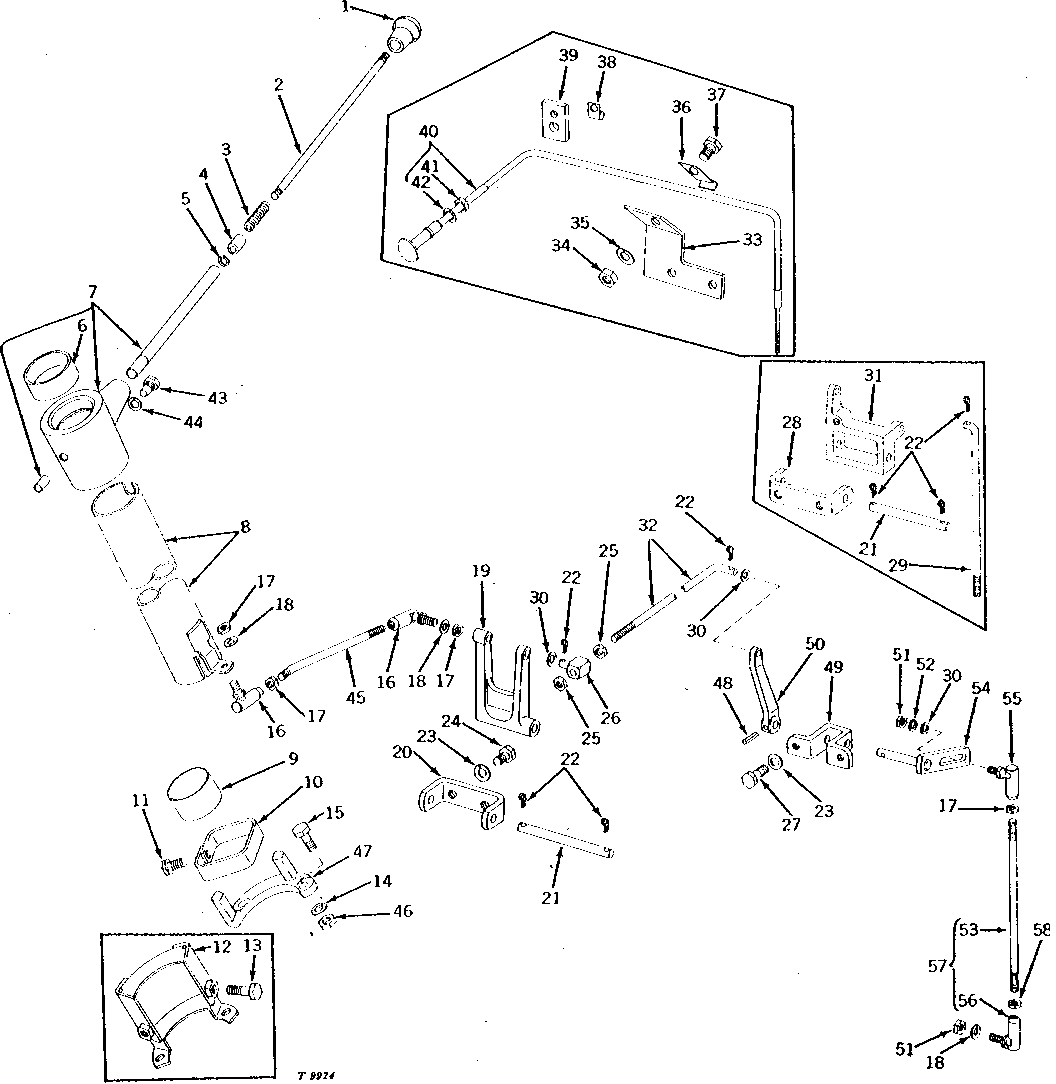

THROTTLE CONTROL (HAND OPERATED) (DIESEL) [01F11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26670	1	KNOB	-
2	T15179	1	SHAFT	(SUB R38376 AND R38377)
3	R28009	1	SPRING	-
4	R26952	1	GUIDE	(SUB R38376 AND R38377)
5	R30828	1	SNAP RING	-
6	R27075	1	BUSHING	-
7	AT16821	1	LEVER	(MARKED T19156) (SUB FOR AR26614 OR AR30472)
8	AT12866	1	TUBE	(A) (C) (NLA)
8	AT16481	1	TUBE	(A) (C) (NLA)
8	AT12959	1	TUBE	(B) (NLA)
8	AT16482	1	TUBE	(B) (NLA)
9	R105811	1	ISOLATOR	(SUB FOR R26958)
10	AR26613	1	CLAMP	-
11	19H1227	1	Cap Screw	1/4" X 1/2"
12	AT12867	1	BRACKET	(NLA)
13	19H1914	2	Cap Screw	1/4" X 1"
14	12H304	2	Lock Washer	3/8"
15	19H1731	2	Cap Screw	3/8" X 1"
16	T23688	2	BALL JOINT	(SUB FOR AL2096T)
17	14H649	4	Nut	1/4"
18	12H302	3	Lock Washer	1/4"
19	T14112	1	CLEVIS	(NLA)
20	T14117	1	BRACKET	(NLA)
21	T14115	2	PIN FASTENER	(NLA)
21	T14115	1	PIN FASTENER	(NLA)
22	11M7079	7	Cotter Pin	0.098" X 0.472"
22	11M7079	4	Cotter Pin	0.098" X 0.472"
23	12H303	4	Lock Washer	5/16"
24	19H1900	2	Cap Screw	5/16" X 3/4"
25	14H786	2	Nut	1/4"
26	A4948R	1	SWIVEL	-
27	19H2020	2	Cap Screw	5/16" X 1/2"
28	T14116	1	BRACKET	(NLA)
29	T14111	1	BOLT	(NLA)
30	24H1286	3	Washer	9/32" X 1/2" X 1/16"
31	T14114	1	CRANK	(NLA)
32	T14113	1	BOLT	(NLA)
33	T14118	1	BRACKET	(NLA)
34	14H785	1	Nut	5/16"
35	12H303	1	Lock Washer	5/16"
36	T11337	1	CLAMP	(NLA)
37	19H2020	1	Cap Screw	5/16" X 1/2"
38	T15358	1	CLIP	(NLA)
39	T15357	1	STRAP	(NLA)
40	AT12868	1	PUSH PULL CABLE	-
41	14H774	1	Nut	3/8"
42	12H310	1	Lock Washer	3/8"
43	R28007	1	BOLT	-
44	12H304	1	Lock Washer	3/8"
45	T14106	1	LEVER	(NLA)
46	14H1076	2	Nut	3/8"
47	T18338	1	STOP	(NLA)
48	25H42	1	GROOVE PIN	1/8" X 3/4"
49	T18337	1	BRACKET	(NLA)
50	T18336	1	LEVER	(NLA)
51	14H860	2	Nut	1/4"
52	12H302	1	Lock Washer	1/4"
53	AT17269	1	ROD	(SUB FOR T18335) (NLA)
53	T18999	1	STUD	(NLA)
54	AT16480	1	BELLCRANK	-
55	T23688	1	BALL JOINT	(SUB FOR AL2096T)
56	T23688	1	BALL JOINT	(SUB FOR AL2096T)
56	AT17267	1	BALL JOINT	(NLA)
57	AT17269	1	ROD	-
58	14H649	1	Nut	1/4"
58	14H1025	1	Nut	1/4"

THROTTLE CONTROL (HAND OPERATED) (DIESEL) [01F11]
