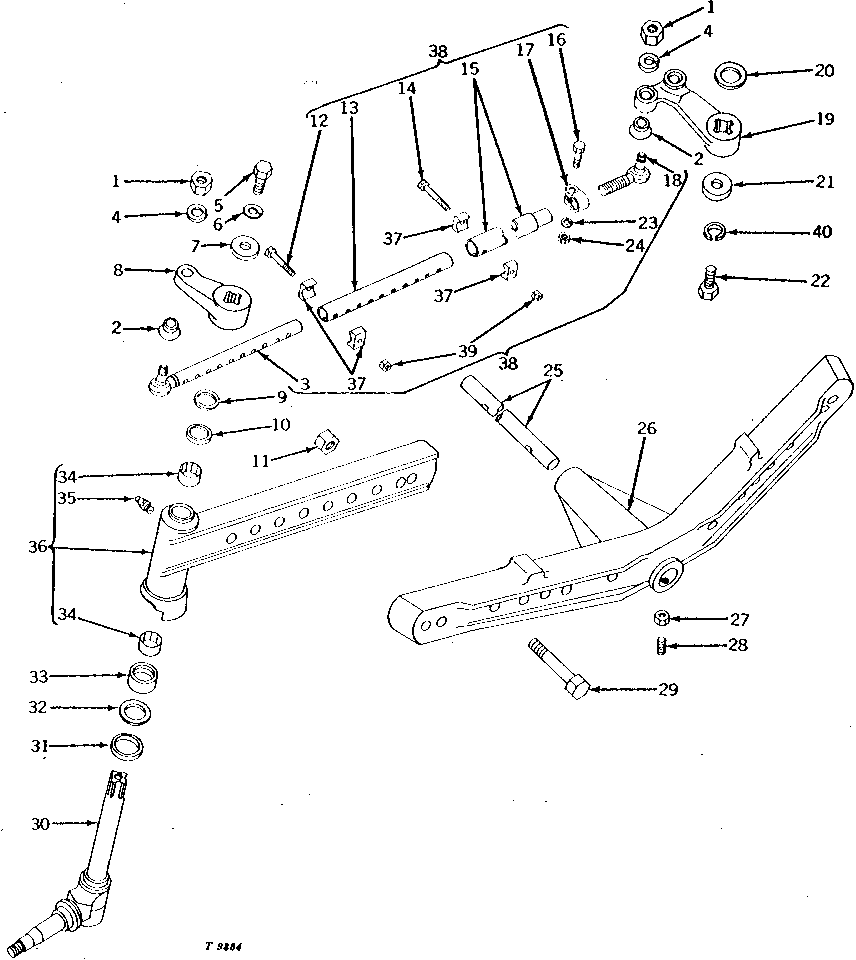

SWEPT BACK ADJUSTABLE FRONT AXLE (ROW-CROP UTILITY) [02H12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H888	4	Nut	9/16"
2	M648T	4	Dust Shield	(SUB FOR T15688)
3	AT13972	2	TIE ROD ASSEMBLY	-
4	12H317	4	Lock Washer	9/16"
5	19H1756	2	Cap Screw	5/8" X 1-1/2"
6	12H294	2	Lock Washer	5/8"
7	M1006T	2	WASHER	-
8	T12802	1	LEVER	(NLA)
8	T12803	1	LEVER	(NLA)
9	M1250T	1	SHIM	(0.69 MM (.027")
10	M1518T	2	WASHER	-
11	14H794	4	Nut	3/4"
11	14H794	4	Nut	3/4"
12	19H1913	2	Cap Screw	5/16" X 2-1/4"
13	T15691	2	TUBE	-
14	19H1949	2	Cap Screw	5/16" X 2-1/2"
15	T15692	1	TUBE	(SUB T18057 AND T17700)
15	T18057	2	TUBE	-
16	19H1765	2	Cap Screw	3/8" X 1-3/4"
16	19H3552	2	Cap Screw	5/16" X 1-1/2"
17	M2300T	2	CLAMP	(SUB FOR T15689) (SUB H145112)
17	T17700	2	CLAMP	(NLA)
18	AT13971	2	BALL JOINT	-
19	T12799	1	ARM	(A) (NLA)
19	T12800	1	ARM	(B) (NLA)
20	D1821R	1	WASHER	-
21	F3607R	1	Washer	(B)
21	M1006T	1	WASHER	(A) (NLA)
22	19H1768	1	Cap Screw	(B) 3/4" X 2"
22	19H1756	1	Cap Screw	(A) 5/8" X 1-1/2"
23	12H304	2	Lock Washer	3/8"
23	12H303	2	Lock Washer	5/16"
24	14H1076	2	Nut	3/8"
24	14H785	2	Nut	5/16"
25	T12786	1	DOWEL PIN	-
26	T12801	1	AXLE	(NLA)
27	14H826	2	Nut	1/2"
28	22H988	2	SET SCREW	1/2" X 1-1/4"
29	19H2084	4	Cap Screw	3/4" X 4-1/2"
29	19H2084	4	Cap Screw	3/4" X 4-1/2"
30	AT11976	2	KNUCKLE	(MARKED T12761) (NLA)
30	AT17644	2	SPINDLE	(C) (MARKED T19355) (NLA)
31	M2282T	2	WASHER	-
32	M2283T	2	WASHER	-
33	JD8407	2	THRUST BEARING	-
34	JD8820	4	NEEDLE BEARING	-
35	JD7759	2	Lubrication Fitting	-
36	AT11925	1	END	R.H. (MARKED T12205) (NLA)
36	AT11926	1	END	L.H. (MARKED T12206) (NLA)
36	AT17643	1	END	(C) R.H. (MARKED T19357) (NLA)
36	AT17642	1	END	(C) L.H. (MARKED T19356) (NLA)
37	T15690	8	CLAMP	-
38	AT16230	2	TIE ROD ASSEMBLY	(SUB FOR AT13970) (NLA)
39	T16464	4	Lock Nut	-
39	BP12232	4	LOCK NUT	(SUB FOR M376T) (SUB T16464)
40	12H236	1	Lock Washer	(B) 3/4"
40	12H294	1	Lock Washer	(A) 5/8"
