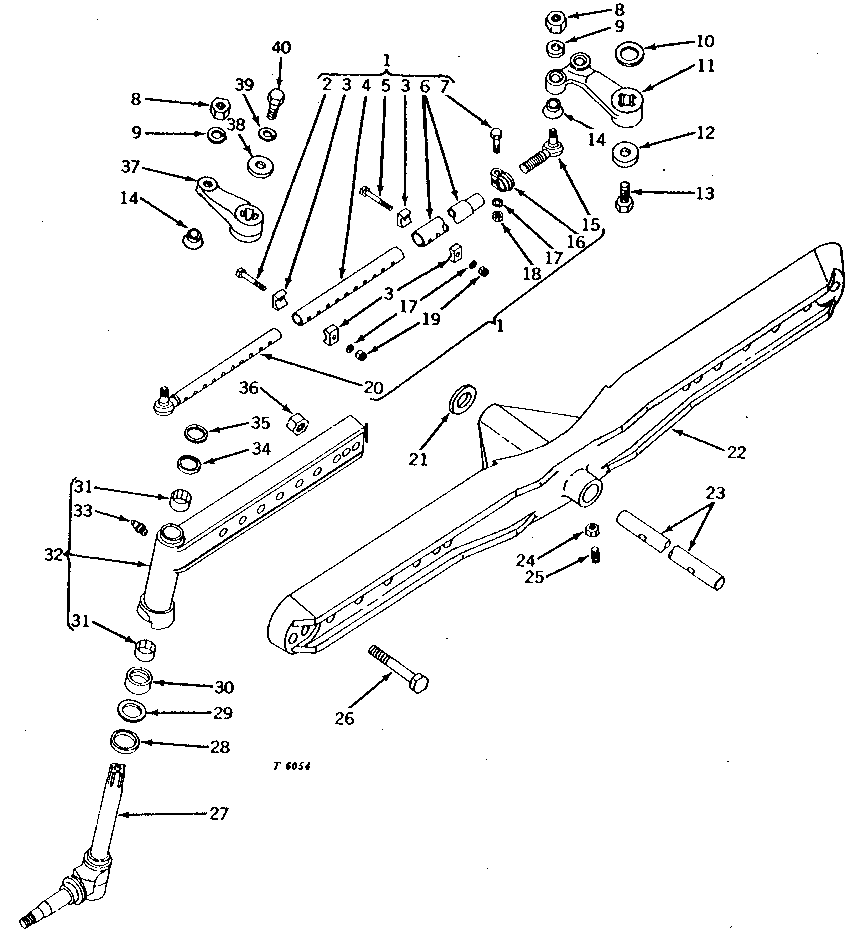

STRAIGHT ADJUSTABLE FRONT AXLE (1575-2235MM (62"-88")) (ROW-CROP UTILITY) [02H10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT15904	2	TIE ROD ASSEMBLY	(NLA)
2	19H1913	2	Cap Screw	5/16" X 2-1/4"
3	T15690	8	CLAMP	-
4	T18855	2	TUBE	(NLA)
5	19H1949	2	Cap Screw	5/16" X 2-1/2"
6	T17699	2	TUBE	-
7	19H3552	2	Cap Screw	5/16" X 1-1/2"
8	14H888	4	Nut	9/16"
9	12H317	4	Lock Washer	9/16"
10	D1821R	1	WASHER	(A)
10	T15285	1	Shim	-
11	T12784	1	ARM	(A) (NLA)
11	T12805	1	ARM	(B) (NLA)
12	F3607R	1	Washer	(B)
12	M1006T	1	WASHER	(A) (NLA)
13	19H1756	1	Cap Screw	(A) 5/8" X 1-1/2"
13	19H1768	1	Cap Screw	(B) 3/4" X 2"
14	M648T	4	Dust Shield	-
15	AT13971	2	BALL JOINT	-
16	T17700	2	CLAMP	(NLA)
17	12H303	6	Lock Washer	5/16"
18	14H785	2	Nut	5/16"
19	BP12232	4	LOCK NUT	(SUB FOR M376T) (SUB T16464)
20	AT13972	2	TIE ROD ASSEMBLY	-
21	M4145T	1	SHIM	-
21	M4142T	1	WASHER	(SUB M4145T)
22	T17687	1	AXLE	(NLA)
23	T12786	1	DOWEL PIN	-
24	14H826	2	Nut	1/2"
25	22H988	2	SET SCREW	1/2" X 1-1/4"
26	19H2084	4	Cap Screw	3/4" X 4-1/2"
27	AT11976	2	KNUCKLE	(MARKED T12761) (NLA)
27	AT12484	2	SPINDLE	(C) (MARKED T13428) (NLA)
28	M2282T	2	WASHER	-
29	M2283T	2	WASHER	-
30	JD8407	2	THRUST BEARING	-
31	JD8820	4	NEEDLE BEARING	-
32	AT11974	1	END	R.H. (MARKED T12762) (NLA)
32	AT12483	1	EXTENSION	(C) L.H. (MARKED T13427) (NLA)
32	AT12482	1	EXTENSION	(C) R.H. (MARKED T13426) (NLA)
32	AT11975	1	END	L.H. (MARKED T12763) (NLA)
33	JD7759	2	Lubrication Fitting	-
34	M1518T	2	WASHER	-
35	M1250T	1	SHIM	0.69 MM (.027")
36	14H794	4	Nut	3/4"
37	T12782	1	LEVER	(NLA)
37	T12783	1	LEVER	(NLA)
38	M1006T	2	WASHER	(NLA)
39	12H294	2	Lock Washer	5/8"
40	19H1756	2	Cap Screw	5/8" X 1-1/2"
