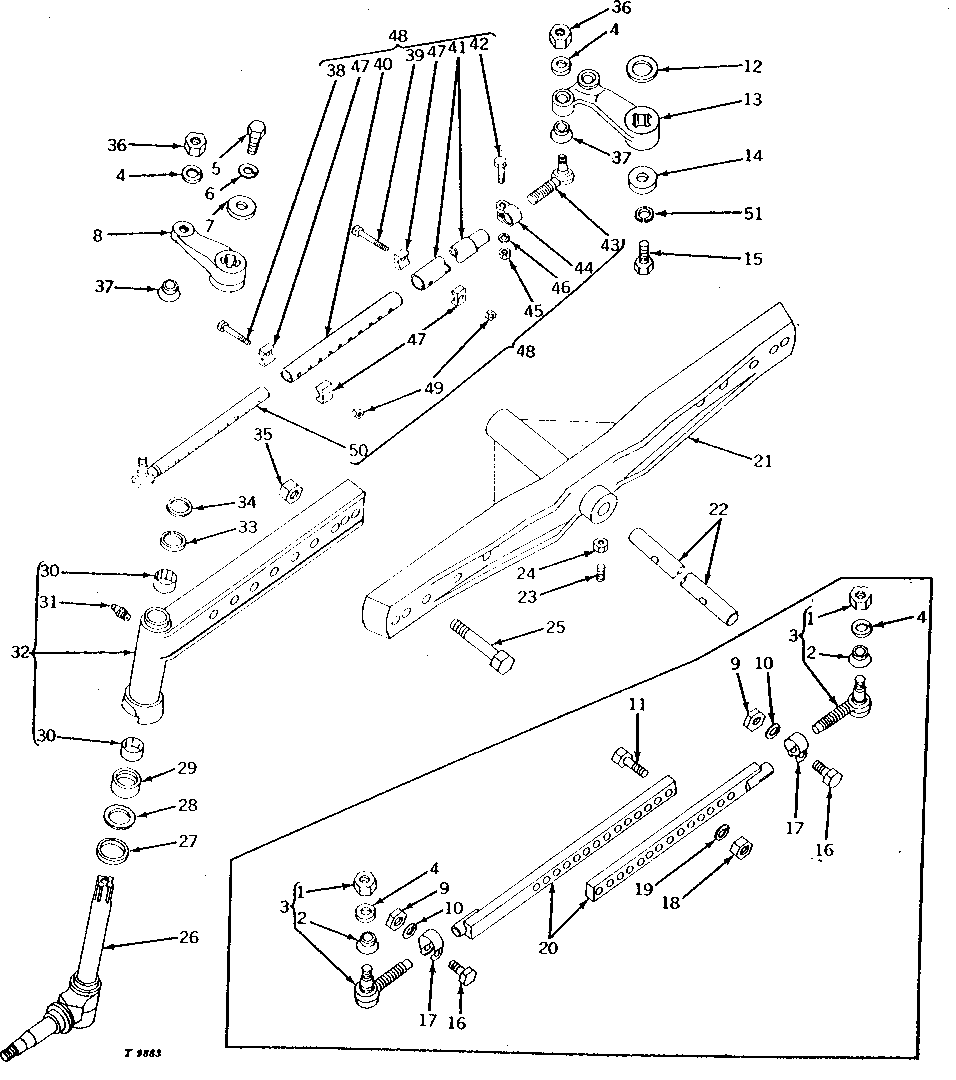

STRAIGHT ADJUSTABLE FRONT AXLE (1270-1880MM (50"-74")) (ROW-CROP UTILITY) [02H08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H888	4	Nut	9/16"
2	M648T	4	Dust Shield	(SUB FOR F3208R)
3	AR21944	4	BALL JOINT	(SUB FOR AF3177R)
4	12H317	4	Lock Washer	9/16"
5	19H1756	2	Cap Screw	5/8" X 1-1/2"
6	12H294	2	Lock Washer	5/8"
7	M1006T	2	WASHER	(NLA)
8	T12782	1	LEVER	(NLA)
8	T12783	1	LEVER	(NLA)
9	14H650	4	Nut	5/16"
10	12H303	4	Lock Washer	5/16"
11	19H1765	4	Cap Screw	3/8" X 1-3/4"
12	D1821R	1	WASHER	(A)
12	T15285	1	Shim	-
13	T12784	1	ARM	(A) (NLA)
13	T12805	1	ARM	(B) (NLA)
14	F3607R	1	Washer	(B)
14	M1006T	1	WASHER	(A) (NLA)
15	19H1768	1	Cap Screw	(B) 3/4" X 2"
15	19H1756	1	Cap Screw	(A) 5/8" X 1-1/2"
16	L410T	4	CAP SCREW	(NLA)
17	L409T	4	Clamp	-
18	14H1076	4	Nut	3/8"
19	12H304	4	Lock Washer	3/8"
20	AT16230	1	TIE ROD ASSEMBLY	(SUB FOR AT11982) (NLA)
20	AT16230	1	TIE ROD ASSEMBLY	(SUB FOR AT11983) (NLA)
21	T12785	1	AXLE	(NLA)
22	T12786	1	DOWEL PIN	-
23	22H988	2	SET SCREW	1/2" X 1-1/4"
24	14H826	2	Nut	1/2"
25	19H2084	4	Cap Screw	3/4" X 4-1/2"
25	19H2084	4	Cap Screw	3/4" X 4-1/2"
26	AT11976	2	KNUCKLE	(MARKED T12761) (NLA)
26	AT12484	2	SPINDLE	(C) (MARKED T13428) (NLA)
27	M2282T	2	WASHER	-
28	M2283T	2	WASHER	-
29	JD8407	2	THRUST BEARING	-
30	JD8820	4	NEEDLE BEARING	-
31	JD7759	2	Lubrication Fitting	-
32	AT11974	1	END	R.H. (MARKED T12762) (NLA)
32	AT11975	1	END	L.H. (MARKED T12763) (NLA)
32	AT12482	1	EXTENSION	(C) R.H. (MARKED T13426) (NLA)
32	AT12483	1	EXTENSION	(C) L.H. (MARKED T13427) (NLA)
33	M1518T	2	WASHER	-
34	M1250T	1	SHIM	0.69MM (.027")
35	14H794	4	Nut	3/4"
35	14H794	4	Nut	3/4"
36	14H888	4	Nut	9/16"
37	M648T	4	Dust Shield	(SUB FOR T15688)
38	19H1913	2	Cap Screw	5/16" X 2-1/4"
39	19H1949	2	Cap Screw	5/16" X 2-1/2"
40	T15691	2	TUBE	-
41	T18057	2	TUBE	-
41	T15692	1	TUBE	(SUB T18057 AND T17700)
42	19H1765	2	Cap Screw	3/8" X 1-3/4"
42	19H3552	2	Cap Screw	5/16" X 1-1/2"
43	AT13971	2	BALL JOINT	-
44	M2300T	2	CLAMP	(SUB FOR T15689) (SUB H145122)
44	T17700	2	CLAMP	(NLA)
45	14H1076	2	Nut	3/8"
45	14H785	2	Nut	5/16"
46	12H304	2	Lock Washer	3/8"
46	12H303	2	Lock Washer	5/16"
47	T15690	8	CLAMP	-
48	AT16230	2	TIE ROD ASSEMBLY	(SUB FOR AT13970) (NLA)
49	T16464	4	Lock Nut	-
49	BP12232	4	LOCK NUT	(SUB FOR M376T) (SUB T16464)
50	AT13972	2	TIE ROD ASSEMBLY	-
51	12H294	1	Lock Washer	(A) 5/8"
51	12H236	1	Lock Washer	(B) 3/4"
