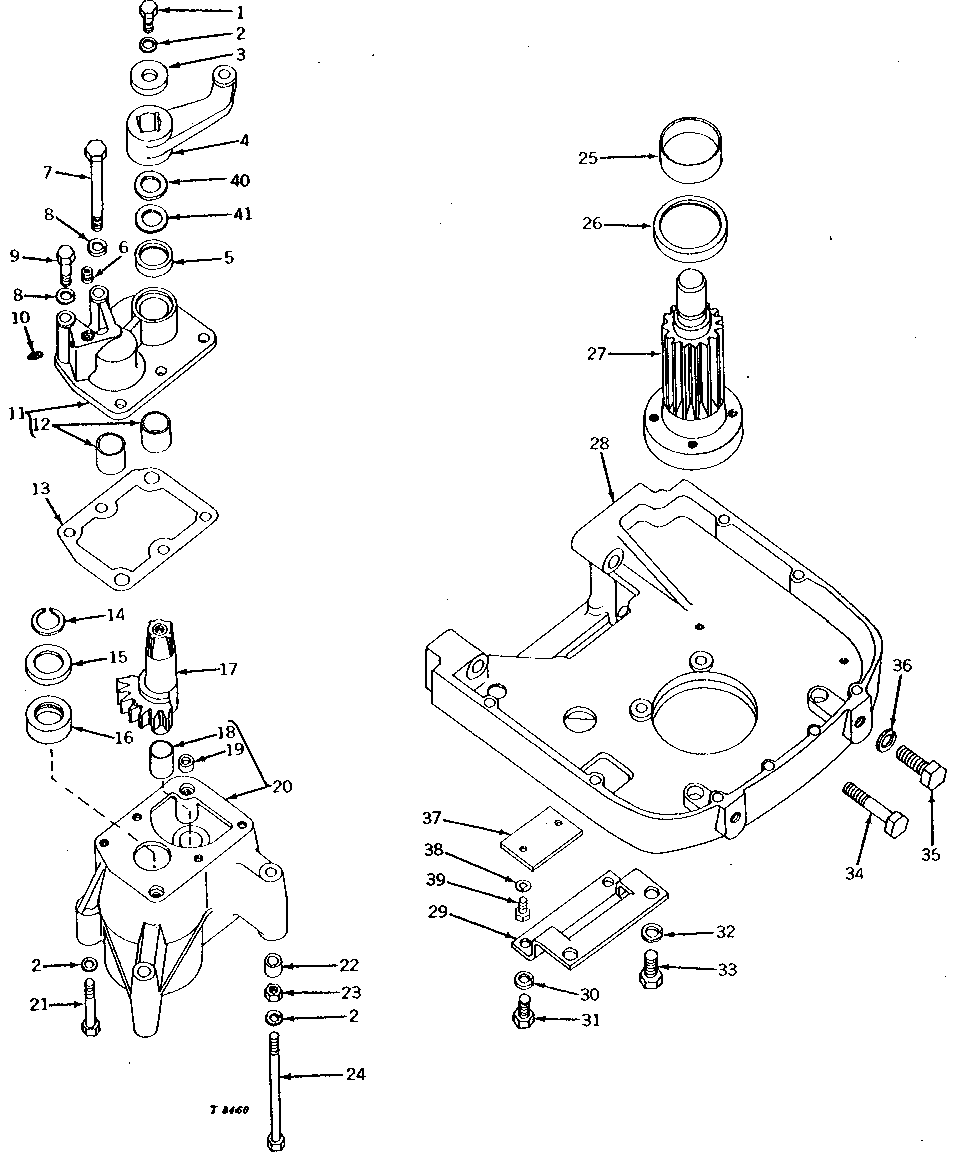

STEERING SPINDLE HOUSING AND FRONT END SUPPORT (ROW-CROP) [02C22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1756	1	Cap Screw	5/8" X 1-1/2"
2	12H294	5	Lock Washer	5/8"
3	M1006T	1	WASHER	-
4	T13506	1	LEVER	(NLA)
5	AT11665	1	SEAL	(SUB H2586B)
6	15H666	1	Pipe Plug	3/8"
7	19H1840	2	CAP SCREW	1/2" X 5-1/2"
8	12H301	6	Lock Washer	1/2"
9	19H2473	4	Cap Screw	1/2" X 1-3/4"
10	15H558	1	Pipe Plug	1/8"
11	AT12558	1	BEARING HOUSING W/O BEARING	(MARKED T13497) (NLA)
12	T15998	2	BUSHING	(SUB FOR T13498)
13	T13505	1	GASKET	-
14	A562R	1	SNAP RING	-
15	R507R	1	WASHER	-
16	JD8410	1	THRUST BEARING	-
17	T13504	1	SHAFT	(NLA)
18	T14670	1	BUSHING	(NLA)
19	T12099	2	BUSHING	(NLA)
20	AT12561	1	HOUSING	(MARKED T13507) (NLA)
21	19H2641	2	Cap Screw	5/8" X 3-1/4"
22	T12100	1	BUSHING	(NLA)
23	14H1039	2	Nut	5/8"
24	08H4136	2	CAP SCREW	5/8" X 8"
25	T14669	1	BUSHING	-
26	AT43688	2	SEAL	(SUB FOR AT12557)
27	T13503	1	SPINDLE	(NLA)
28	T16156	1	SUPPORT	(SUB FOR T13292) (NLA)
29	T13293	1	GUARD	(DUAL WHEELS) (ROLL-O-MATIC) (NLA)
30	12H301	2	Lock Washer	1/2"
31	19H1895	2	CAP SCREW	1/2" X 3/4"
32	12H294	2	Lock Washer	5/8"
33	19H2367	2	Cap Screw	5/8" X 3/4"
34	T477T	4	BOLT	-
35	19H1768	2	Cap Screw	3/4" X 2"
36	12H236	2	Lock Washer	3/4"
37	T16157	1	STRAP	(MANUAL STEERING) (NLA)
38	12H303	2	Lock Washer	5/16"
39	19H2319	2	CAP SCREW	5/16" X 3/8"
40	T15285	1	Shim	-
41	D1821R	2	WASHER	-

STEERING SPINDLE HOUSING AND FRONT END SUPPORT (ROW-CROP) [02C22]
