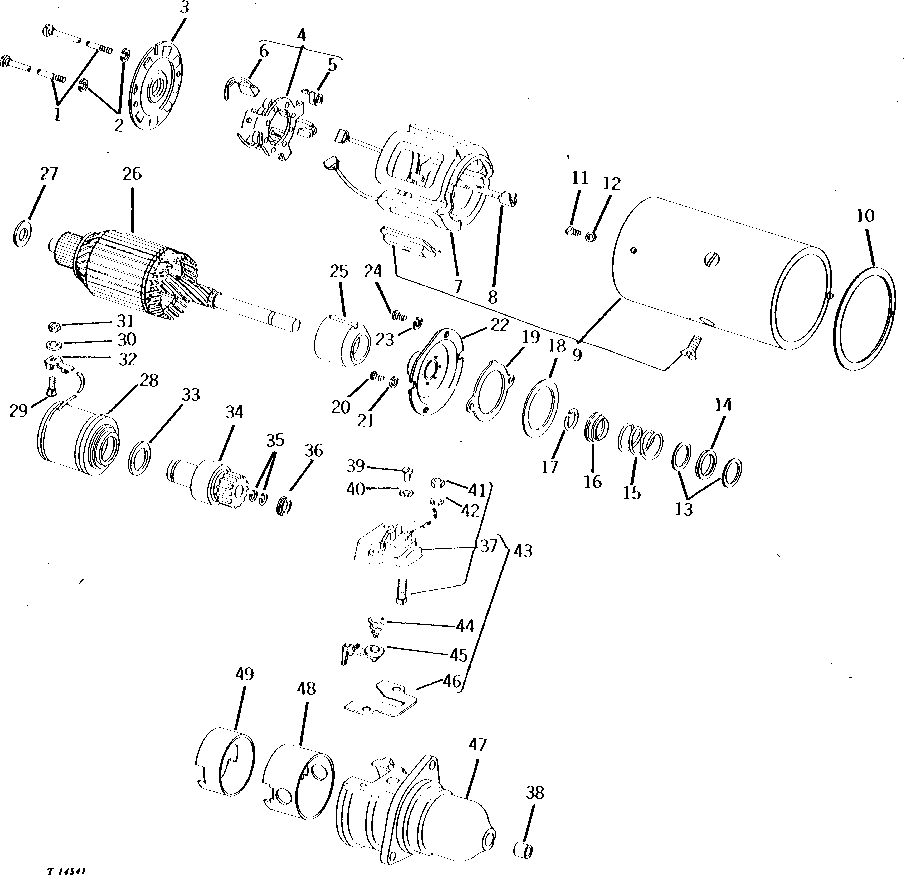

STARTING MOTOR (DIESEL) (PRESTOLITE NO. MFX-8001A) (TRACTOR SERIAL NO. 042001- ) [01H17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T19474	2	BOLT	(NLA)
2	12H302	2	Lock Washer	1/4"
3	T19480	1	MANIFOLD	(NLA)
4	AT17837	1	PLATE	(NLA)
5	T19482	4	BRUSH	-
6	AT17839	1	KIT	-
7	T19481	1	FIELD WINDING COIL	(NLA)
8	T19496	1	WIRING LEAD	(NLA)
9	-	1	Part 9	(ORDER TY6695)
10	T19477	1	GASKET	(NLA)
11	37H10	3	Screw	0.164" X 3/8", (SUB FOR T19501)
12	12H315	3	Lock Washer	0.164"
13	T19489	1	SPRING	(SUB AT21699)
14	T19497	1	WASHER	(SUB AT21699)
15	T19488	1	SPRING	(SUB AT21699)
16	T19487	1	SPRING	(SUB AT21699)
17	T19486	1	SPRING	(SUB AT21699)
18	T19490	1	BEARING CONE	(SUB AT21699)
19	T19882	1	STOP	(NLA)
20	21H1269	2	SCREW	0.190" X 3/8"
21	12H246	2	LOCK WASHER	0.190"
22	T19479	1	BEARING	(NLA)
23	12H246	2	LOCK WASHER	0.190"
24	21H1269	2	SCREW	0.190" X 3/8"
25	T19478	1	CORE	(NLA)
26	T19483	1	ARMATURE	-
27	AT21698	1	THRUST WASHER	(SUB FOR T19484) (NLA)
28	T19491	1	SOLENOID	-
29	T19879	1	STUD	(SUB FOR T19463) (NLA)
30	24H1283	1	Washer	7/32" X 1/2" X 0.049"
31	14H631	1	Nut	0.190"
32	T19492	1	TERMINAL	-
33	T19494	1	WASHER	(SUB AT21699)
34	T19485	1	CLUTCH	-
35	T19475	1	SNAP RING	(SUB AT21701)
36	T19476	1	THRUST WASHER	(SUB AT21702)
37	AT17838	1	COVER	(SUB FOR AT17835)
38	T19495	1	BUSHING	(NLA)
39	T19502	2	SCREW	-
40	12H246	2	LOCK WASHER	0.190"
41	14H732	1	Nut	3/8"
42	12H304	1	Lock Washer	3/8"
43	AT17838	1	COVER	-
44	R14023	1	SPRING	(SUB AT17838) (SUB FOR T19498)
45	T19500	1	COVER	(SUB AT17838)
46	T19499	1	GASKET	(NLA)
47	AT17834	1	HOUSING	(NLA)
48	T19880	1	SLEEVE	(SUB AT21703)
49	T19881	1	SLEEVE	(SUB AT21703)
..	AT17515	1	STARTER MOTOR	(SUB TY6695)
..	TY6695	1	STARTER MOTOR	(REMANUFACTURED) (SUB FOR AT17515 OR TY1457)
