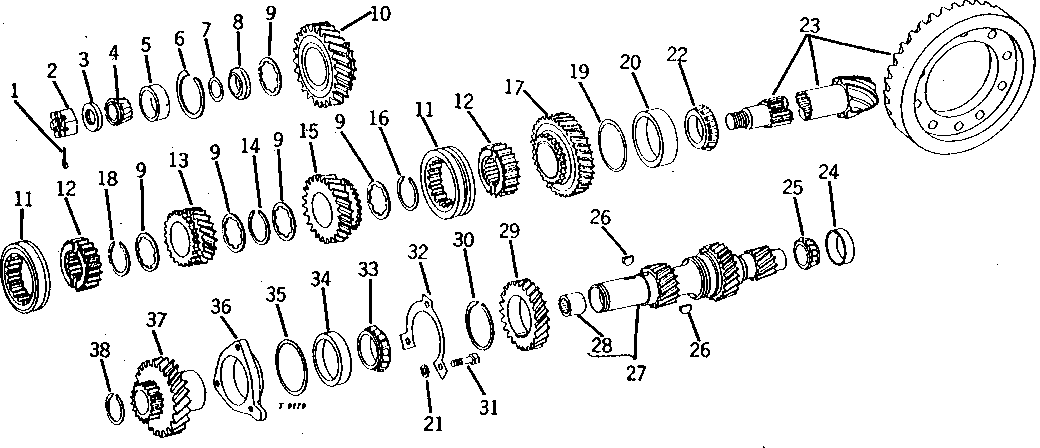

SPEED CHANGE GEARS AND SHAFTS (TRACTOR SERIAL NO. 042001- ) [02C01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7087	1	Cotter Pin	4 X 40 MM
2	14H875	1	Nut	7/8"
3	T19411	1	WASHER	-
3	T12387	1	WASHER	(NLA)
4	JD7390	1	BEARING CONE	-
4	JD8990	1	BEARING CONE	-
5	JD7415	1	Bearing Cup	-
6	T13379	1	SNAP RING	-
7	T12388	1	SHIM	0.05 MM (.002") (SUB M2059T)
7	M2057T	1	SHIM	0.13 MM (.005") (SUB FOR T12389) (SUB AT146268)
7	M2058T	1	SHIM	0.25 MM (.010") (SUB FOR T12390) (SUB AT14268)
8	T12391	1	SPACER	(NLA)
9	T19245	5	THRUST WASHER	-
10	T19187	1	GEAR	(THIRD AND FOURTH SPEED) (NLA)
11	T31800	2	SHIFT COLLAR	(SUB FOR R26251 OR T23519) (SUB T80380)
12	T19192	2	STEERING GEAR	(NLA)
13	T19189	1	GEAR	(SEVENTH AND EIGHTH SPEED) (NLA)
14	T19243	1	SNAP RING	(NLA)
15	T19188	1	GEAR	(FIFTH AND SIXTH SPEED) (NLA)
16	T19244	1	SNAP RING	(NLA)
17	T19186	1	GEAR	(FIRST AND SECOND SPEED) (NLA)
18	T19242	1	SNAP RING	-
19	M4262T	1	SHIM	0.25 MM (.010")
19	M4261T	1	SHIM	0.13 MM (.005") (NLA)
19	M4260T	1	SHIM	0.05 MM (.002") (NLA)
20	JD8240	1	Bearing Cup	-
21	24H1307	3	Washer	13/32" X 1" X 1/16"
22	JD8907	1	BEARING CONE	-
23	AT17521	1	STEERING GEAR	(MARKED T19190, T17665 AND T12995) (MATCHED SET) (NLA)
24	JD8225	1	Bearing Cup	-
25	JD8187	1	Bearing Cone	-
26	26H15	2	Shaft Key	1/4" X 3/4"
27	AT12288	1	SHAFT	(NLA)
28	JD8865	1	Needle Bearing	-
29	T13165	1	STEERING GEAR	(MARKED T19190) (SEVENTH AND EIGHTH SPEED) (NLA)
30	B1876R	1	SNAP RING	(NLA)
31	19H3219	3	Cap Screw	3/8" X 1-3/8"
32	T12789	1	LOCK PLATE	-
33	JD8171	1	Bearing Cone	-
34	JD8217	1	Bearing Cup	-
35	T31792	1	SHIM	0.05 MM (.002") (SUB FOR T17199)
35	T31793	1	SHIM	0.13 MM (.005") (SUB FOR T17200)
35	T31794	1	SHIM	0.25 MM (.010") (SUB FOR T17201)
36	T17251	1	RETAINER	(NLA)
37	T13180	1	STEERING GEAR	(NLA)
38	T13179	1	SNAP RING	(SUB T164199)

SPEED CHANGE GEARS AND SHAFTS (TRACTOR SERIAL NO. 042001- ) [02C01]
