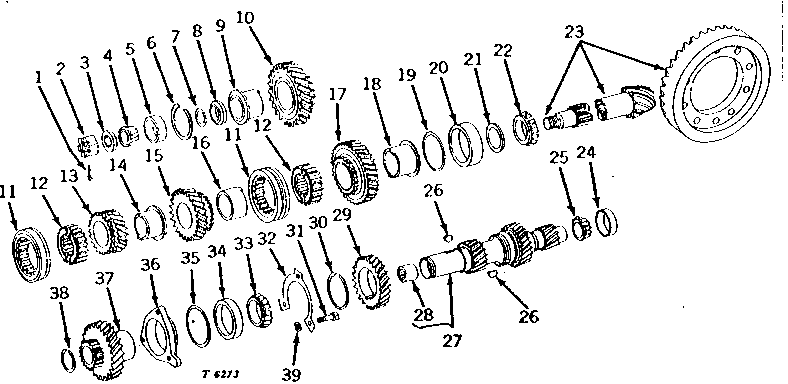

SPEED CHANGE GEARS AND SHAFTS (TRACTOR SERIAL NO. 010001-042000) [02B23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7087	1	Cotter Pin	4 X 40 MM
2	14H875	1	Nut	7/8"
3	T12387	1	WASHER	(NLA)
4	JD7390	1	BEARING CONE	-
5	JD7415	1	Bearing Cup	-
6	T13379	1	SNAP RING	-
7	T12388	1	SHIM	0.05 MM (.002") (SUB M2059T)
7	M2057T	1	SHIM	0.13 MM (.005") (SUB FOR T12389) (ORDER AR146268)
7	M2058T	1	SHIM	0.25 MM (.010") (SUB FOR T12390) (ORDER AR146268) (NLA)
8	T12391	1	SPACER	(NLA)
9	T13178	1	BUSHING	(NLA)
10	AT11669	1	STEERING GEAR	(MARKED T12088) (THIRD AND FOURTH SPEED) (NLA)
11	T31800	2	SHIFT COLLAR	(SUB FOR R26251 OR T23519) (SUB T80380)
12	T12378	2	STEERING GEAR	-
13	AT11671	1	STEERING GEAR	(MARKED T12091) (SEVENTH AND EIGHTH SPEED) (NLA)
14	T12392	1	BUSHING	(NLA)
15	AT12293	1	STEERING GEAR	(MARKED T13168) (FIFTH AND SIXTH SPEED) (NLA)
16	T12393	1	BUSHING	(NLA)
17	AT12292	1	GEAR	(FIRST AND SECOND SPEED) (NLA)
18	T13177	1	BUSHING	(NLA)
19	M4260T	1	SHIM	0.05 MM (.002") (NLA)
19	M4261T	1	SHIM	0.13 MM (.005") (NLA)
19	M4262T	1	SHIM	0.25 MM (.010")
20	JD8240	1	Bearing Cup	-
21	T12665	1	BUSHING	(NLA)
22	JD8907	1	BEARING CONE	-
23	AT15884	1	STEERING GEAR	(MARKED T17664, T17665 AND T12995) (MATCHED SET) (SUB FOR AT12157) (NLA)
24	JD8225	1	Bearing Cup	-
25	JD8187	1	Bearing Cone	-
26	26H78	2	Shaft Key	1/4" X 3/4"
27	AT12288	1	SHAFT	REAR INPUT (NLA)
28	JD8865	1	Needle Bearing	-
29	T13165	1	STEERING GEAR	(SEVENTH AND EIGHTH SPEED) (NLA)
30	B1876R	1	SNAP RING	(NLA)
31	19H3219	3	Cap Screw	3/8" X 1-3/8"
32	T12789	1	LOCK PLATE	-
33	JD8171	1	Bearing Cone	-
34	JD8217	1	Bearing Cup	-
35	T12790	1	SHIM	0.05 MM (.002") (NLA)
35	T31792	1	SHIM	0.05 MM (.002") (SUB FOR T17199)
35	T12791	1	SHIM	0.13 MM (.005") (NLA)
35	T31793	1	SHIM	0.13 MM (.005") (SUB FOR T17200)
35	T12792	1	SHIM	0.25 MM (.010") (SUB T12791)
35	T31794	1	SHIM	0.25 MM (.010") (SUB FOR T17201)
36	T12697	1	RETAINER	(NLA)
36	T17251	1	RETAINER	(NLA)
37	T13180	1	STEERING GEAR	(NLA)
38	T13179	1	SNAP RING	(SUB T164199)
39	24H1307	6	Washer	13/32" X 1" X 1/16"
