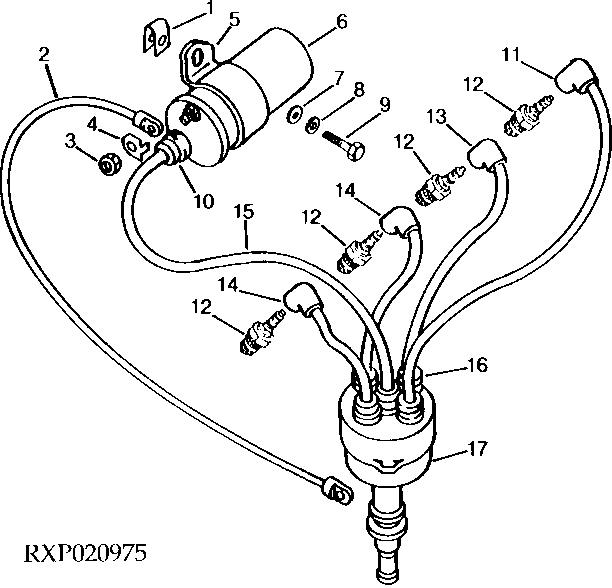

SPARK PLUGS, WIRES, COIL AND DISTRIBUTOR [01G19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H785	2	Nut	5/16"
1	P47210	2	Nut	(SUB R50198)
2	-	1	Part 3	356 MM (14") (MAKE FROM TY16069 AND (2) R32017) (SUB FOR AM355T)
3	14H631	2	Nut	0.190"
4	T18836	2	CLIP	(SUB 12H246) (SUB FOR 1909206)
5	R73142	1	BRACKET	-
6	AR46064	1	ELECTRICAL COIL	(DELCO-REMY NO. 1115379) (SUB FOR AM791T OR AM373T)
6	AT15611	1	ELECTRICAL COIL	(SUB AT14385)
6	AT14385	1	ELECTRICAL COIL	(PRESTOLITE NO. 200627)
7	24H1224	2	Washer	11/32" X 1" X 1/16"
8	19H2020	2	Cap Screw	5/16" X 1/2"
9	12H303	2	Lock Washer	5/16"
10	A4159R	1	BOOT	(SUB FOR M416T)
11	-	1	Part 14	400 MM (15-3/4") (CYLINDER NO. 1) (SUB FOR AT162T) (SUB AT24384)
12	AM514T	4	SPARK PLUG	(CHAMPION H-10) (GASOLINE)
12	AM1535T	4	SPARK PLUG	(AC 45L) (GASOLINE) (SUB AM514T)
12	AT17208	4	SPARK PLUG	(PRESTOLITE 14L7B) (GASOLINE) (SUB FOR AM1536T) (SUB TY21721)
12	AT10085	4	SPARK PLUG	(CHAMPION H-8) (LP-GAS) (SUB TY21720)
12	TY21720	4	SPARK PLUG	(PRESTOLITE 14L4B) (LP-GAS) (SUB FOR AT17209 OR TY6069)
12	AT23597	4	SPARK PLUG	(AC C43L) (LP-GAS)
13	-	1	Part 21	324 MM (12-3/4") (CYLINDER NO. 2) (SUB FOR AT163T) (SUB AT24384)
14	-	2	Part 22	254 MM (10") (CYLINDER NOS. 3 AND 4) (SUB FOR AT161T) (SUB AT24384)
15	-	1	Part 23	305 MM (12") (SUB FOR AM374T) (SUB AT24384)
16	A3539R	5	ELEC. CONNECTOR ACCESSORY	-
17	AR11162	1	IGNITION DISTRIBUTOR	(DELCO-REMY NO. 1112474) (SUB FOR AT361T, AR11145 OR AR17366) (NLA)
17	AT14384	1	IGNITION DISTRIBUTOR	(PRESTOLITE NO. 1BT-4101R) (SUB FOR AT14119) (SUB AT21351 AND AT21941)
..	AT24384	1	IGNITION KIT	IGNITION WIRING

SPARK PLUGS, WIRES, COIL AND DISTRIBUTOR [01G19]
