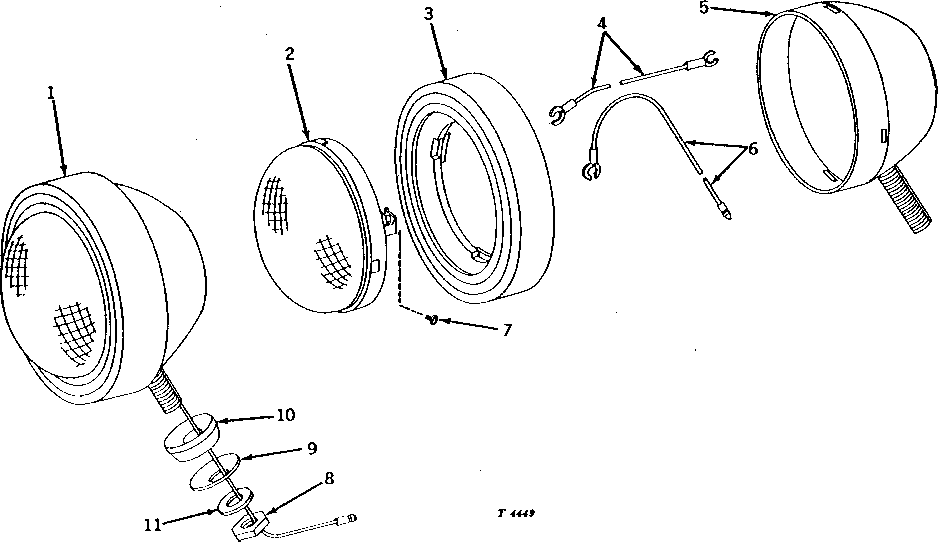

SINGLE FENDER LAMPS AND REAR WORK LAMP (ROW-CROP UTILITY) [01I07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT79869	1	LAMP	(SUB FOR AT11935)
1	RE27099	2	HEADLIGHT	(SUB FOR AT12935)
2	AF3892R	1	Bulb	FRONT, (SUB FOR AT11898)
2	AR21059	1	HEADLIGHT	WORK LAMP
2	RE285628	1	FLOODLAMP	LED LAMP, FLOOD PATTERN.
2	RE285629	1	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
3	R31250	1	BEZEL	(GUIDE)
3	R30182	1	BEZEL	(HOBBS)
4	-	1	Part 9	(SUB AT12935 OR AT11935)
5	-	1	Part 11	WORK LIGHT, (ORDER RE27099)
5	-	1	Part 10	FRONT LIGHT, (ORDER RE27099)
6	AT14770	1	WIRING LEAD	(GUIDE) (NLA)
6	-	1	Part 13	406 MM (16") (MAKE FROM R66319, R32016 AND R32026) (SUB FOR AT14771)
6	T16623	1	Elec. Connector Terminal	-
7	21H1293	1	SCREW	0.164" X 5/16", (SUB FOR R11100)
8	14H1040	2	Nut	1/2"
9	T14265	2	WASHER	FRONT LAMP, (NLA)
9	T12463	1	WASHER	WORK LAMP (NLA)
10	R28191	2	WASHER	FRONT LAMP, (NLA)
10	T12464	1	WASHER	WORK LAMP (NLA)
11	24H1162	2	Washer	17/32" X 1-1/4" X 0.060"

SINGLE FENDER LAMPS AND REAR WORK LAMP (ROW-CROP UTILITY) [01I07]
