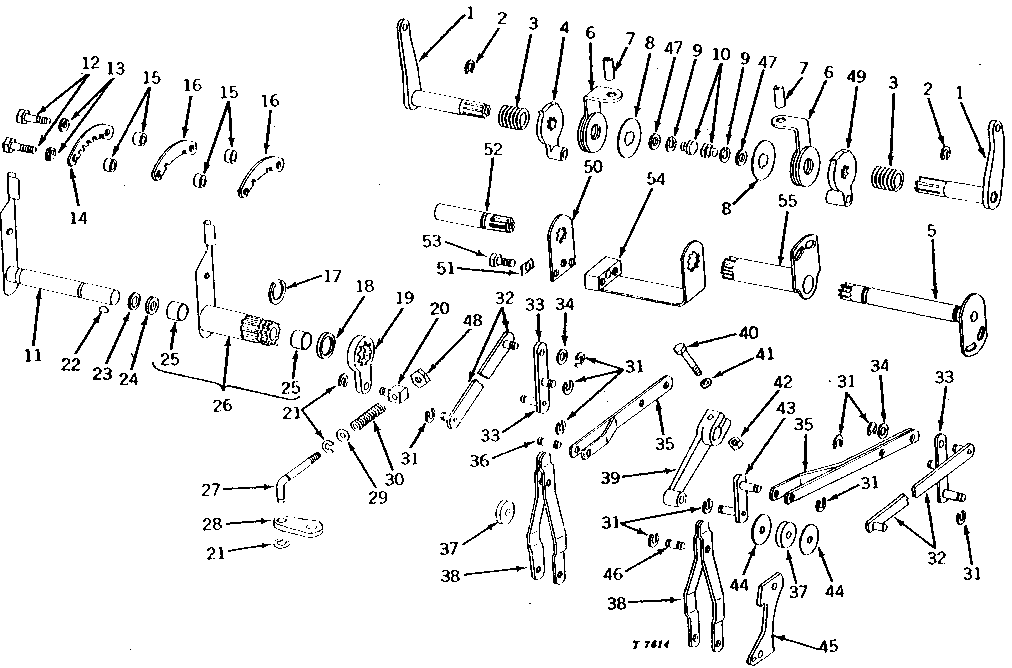

ROCKSHAFT SELECTOR LEVERS AND LINKAGE (DUAL) [02E05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT12645	2	LEVER	(A) (C) (NLA)
1	AT12645	2	LEVER	(B) (NLA)
2	F3366R	2	SNAP RING	-
3	T24128	2	SPRING	(A) (C) (SUB FOR C784R) (NLA)
3	T24127	2	SPRING	(B) (SUB FOR T13847) (NLA)
4	T19893	1	LEVER	(B) (SUB FOR T13118 OR T19382)
4	T19893	1	LEVER	(A) (C) (SUB FOR T13118 OR T19382)
5	AT16391	1	SHAFT	(A) (C) (NLA)
6	AT16723	2	PLATE	(SUB FOR T12478 OR T12479)
7	25H1177	2	GROOVE PIN	3/8" X 5/8", (NLA)
8	T13395	2	WASHER	-
9	12H303	2	Lock Washer	5/16"
10	19H2127	2	Cap Screw	5/16" X 7/8"
11	AT12270	1	LEVER	(NLA)
12	19H1849	2	Cap Screw	5/16" X 1-1/4"
13	12H303	2	Lock Washer	5/16"
14	T13136	1	QUADRANT	(NLA)
15	28H86	4	Washer	0.364" X 0.540" X 5/16"
16	T13135	2	QUADRANT	(NLA)
17	R26643	1	Snap Ring	-
18	T19580	1	SEAL	(SUB FOR AT16742)
19	T12480	1	LEVER	(NLA)
20	T12687	1	SWIVEL	(NLA)
21	R72654	3	Snap Ring	(SUB FOR R27507)
22	26H70	1	Shaft Key	1/8" X 1/2"
23	F3366R	1	SNAP RING	-
24	T12367	1	WASHER	-
25	M3736T	2	BUSHING	(NLA)
26	AT12271	1	LEVER	(NLA)
27	T15789	1	ROD	(SUB FOR T12481) (ALSO ORDER M40333)
28	T12491	1	ARM	(NLA)
29	24H1287	1	Washer	9/32" X 5/8" X 0.065"
29	24H1287	1	Washer	9/32" X 5/8" X 0.065"
30	T12514	1	SPRING	(NLA)
31	R72653	10	Snap Ring	(SUB FOR M2396T)
32	AT11972	2	LINK	(NLA)
33	AT12265	2	LEVER	(NLA)
34	24H1136	2	Washer	11/32" X 11/16" X 0.065"
35	AT11971	2	LINK	(B) (NLA)
35	AT11971	1	LINK	(B) (NLA)
35	AT16824	1	LINK	(B) (NLA)
35	AT11971	2	LINK	(A) (C) (NLA)
35	AT11971	1	LINK	(A) (C) (NLA)
35	AT16824	1	LINK	(A) (C) (NLA)
36	T12437	1	PIN FASTENER	-
37	T12477	2	WASHER	(NLA)
38	AT12470	2	SUPPORT	(NLA)
39	T12435	1	LEVER	(NLA)
40	19H2569	1	Cap Screw	5/16" X 1-5/8"
41	12H303	1	Lock Washer	5/16"
42	14H785	1	Nut	5/16"
43	AT11691	1	LINK	(NLA)
44	24H1291	2	Washer	21/64" X 1-15/32" X 7/64"
45	T18833	1	GUIDE	(SUB FOR T12774) (NLA)
46	T12436	1	PIN FASTENER	(NLA)
47	24H1294	2	Washer	11/32" X 1-1/8" X 1/16"
48	R72654	1	Snap Ring	(SUB FOR R27507)
48	M453T	1	Lock Nut	-
49	T19893	1	LEVER	(SUB FOR T13118 OR T19382)
50	T18220	1	EXTENSION	(A) (C) (NLA)
51	T13857	2	LOCK PLATE	(A) (C)
52	T12507	1	SHAFT	(A) (C) (SUB FOR T18219) (NLA)
53	19H1813	2	CAP SCREW	5/16" X 5/8"
54	AT16393	1	ARM	(A) (C) (NLA)
55	AT16390	1	TUBE	(A) (C) (NLA)
