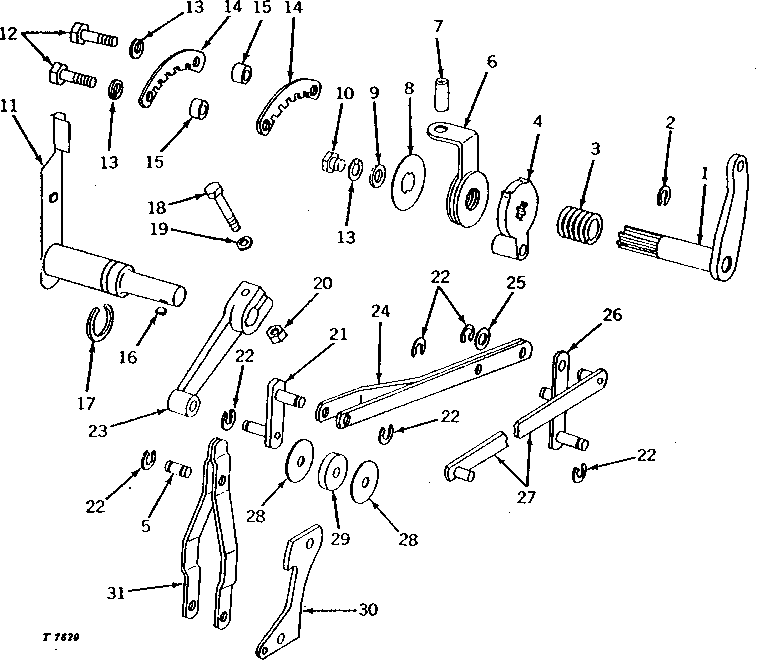

ROCKSHAFT SELECTOR LEVER AND LINKAGE (SINGLE) [02D19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT12645	1	LEVER	(A) (C) (NLA)
1	AT12645	1	LEVER	(B) (NLA)
1	AT14635	1	SHAFT	(A) (C) (NLA)
2	F3366R	1	SNAP RING	-
3	T24128	1	SPRING	(A) (C) (SUB FOR C784R) (NLA)
3	T24127	1	SPRING	(B) (SUB FOR T13847) (NLA)
4	T19893	1	LEVER	(SUB FOR T13118 OR T19382)
5	T12436	1	PIN FASTENER	(NLA)
6	AT16723	1	PLATE	(SUB FOR T12478 AND T12479)
7	25H1177	2	GROOVE PIN	3/8" X 5/8", (NLA)
8	T13395	1	WASHER	-
9	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
10	19H2127	1	Cap Screw	5/16" X 7/8"
11	AT14805	1	LEVER	(NLA)
12	19H1905	2	Cap Screw	5/16" X 1"
13	12H303	3	Lock Washer	5/16"
14	T13136	2	QUADRANT	(NLA)
15	28H86	2	Washer	0.364" X 0.540" X 5/16"
16	26H70	1	Shaft Key	1/8" X 1/2"
17	R26643	1	Snap Ring	-
18	19H2569	1	Cap Screw	5/16" X 1-5/8"
19	12H303	1	Lock Washer	5/16"
20	14H785	1	Nut	5/16"
21	AT11691	1	LINK	(NLA)
22	R72653	8	Snap Ring	(SUB FOR M2396T)
23	T12435	1	LEVER	(NLA)
24	AT11971	1	LINK	(NLA)
24	AT16824	1	LINK	(NLA)
25	24H1136	1	Washer	11/32" X 11/16" X 0.065"
26	AT12265	1	LEVER	(NLA)
27	AT11972	1	LINK	(NLA)
28	24H1291	2	Washer	21/64" X 1-15/32" X 7/64"
29	T12477	1	WASHER	(NLA)
30	T18833	1	GUIDE	(SUB FOR T12774) (NLA)
31	AT12470	1	SUPPORT	(NLA)

ROCKSHAFT SELECTOR LEVER AND LINKAGE (SINGLE) [02D19]
