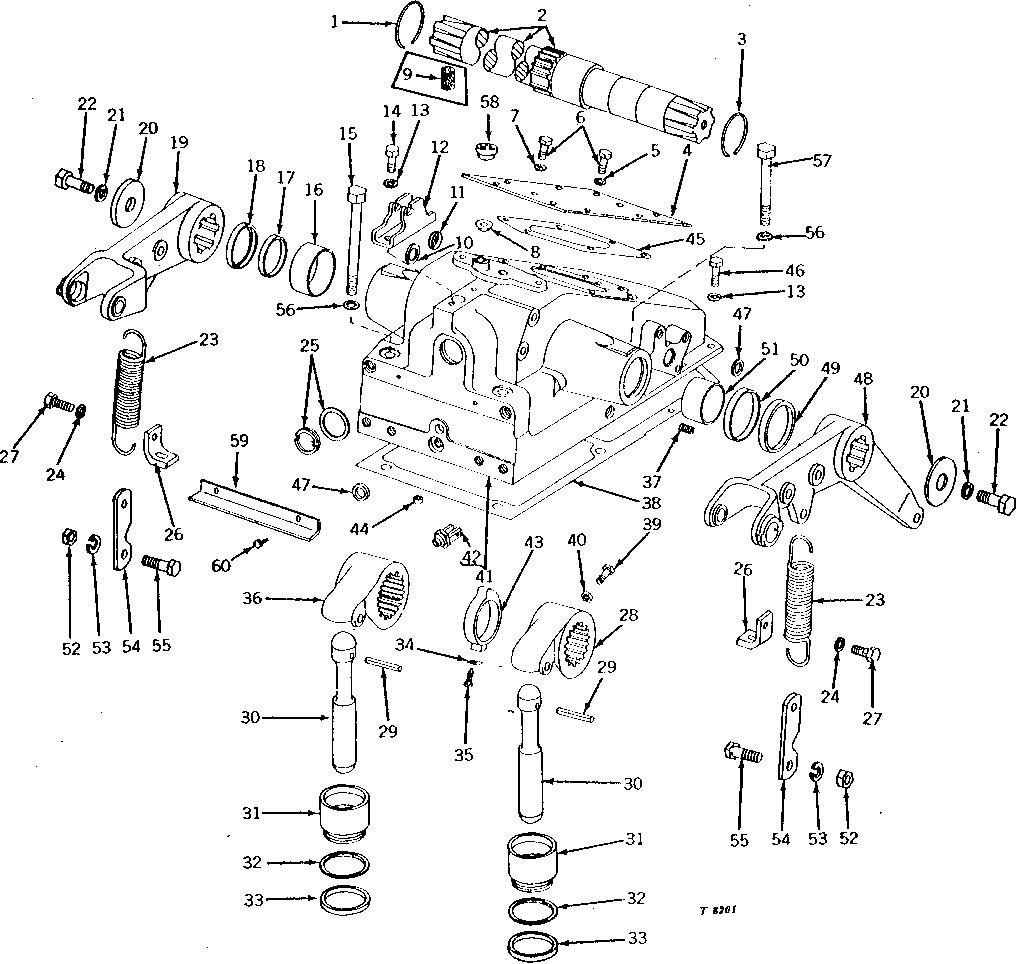

ROCKSHAFT HOUSING ASSEMBLY (SINGLE) [02D15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T12613	1	SNAP RING	(NLA)
2	T16333	1	ROCKSHAFT	(NLA)
3	T12612	1	SNAP RING	(NLA)
4	T12685	1	COVER	(A) (C) (NLA)
5	12H303	4	Lock Washer	5/16"
6	19H1900	6	Cap Screw	5/16" X 3/4"
7	R20498	2	WASHER	-
8	B1896R	1	PLUG	(NLA)
9	T12517	1	FILTER	(NLA)
10	T19580	1	SEAL	(SUB FOR AT16742)
11	30H13	1	PLUG	1"
12	T12554	1	BRACKET	(NLA)
13	12H304	8	Lock Washer	3/8"
14	19H1731	2	Cap Screw	3/8" X 1"
14	19H2284	2	Cap Screw	3/8" X 7/8"
15	19H2332	2	CAP SCREW	5/8" X 6-1/4"
16	T12588	2	BUSHING	-
17	R26543	1	O-Ring	(SUB FOR T12365 AND T18552)
18	T12364	1	RETAINER	-
19	T16332	1	ARM	(B) (C) (NLA)
19	T16073	1	ARM	(A) (NLA)
20	24H1374	2	Washer	21/32" X 3" X 3/8"
21	12H294	2	Lock Washer	5/8"
22	T11297	2	CAP SCREW	-
23	M3168T	2	SPRING	-
24	12H301	2	Lock Washer	1/2"
25	AT13021	1	PIPE PLUG	-
26	T16243	2	HOOK	(B) (C) (NLA)
27	19H1815	2	Cap Screw	1/2" X 1-1/4"
28	T12598	1	LEVER	(NLA)
29	34H336	2	Spring Pin	5/16" X 2-1/4"
30	T12603	2	ROD	(NLA)
31	T12482	2	PISTON	-
32	T12484	2	WASHER	-
33	T12483	2	SEAL	-
34	T13857	1	LOCK PLATE	-
35	R40928	1	BOLT	(SUB FOR R27196)
36	T17045	1	ARM	(SUB FOR T12599) (NLA)
37	15H666	1	Pipe Plug	3/8"
38	T13137	1	GASKET	-
39	22H974	1	SET SCREW	1/4" X 1-1/4", (NLA)
40	14H786	1	Nut	1/4"
41	AT12262	1	HOUSING	(SUB AT17512, AM1074T AND T17882)
41	AT17512	1	HOUSING	(B) (MARKED T19239) (SUB FOR AT14925, AT12262 AND T13113) (NLA)
41	AT17512	1	HOUSING	(A) (C) (MARKED T17882) (ALSO ORDER AM1074T AND (2) T17882) (SUB FOR AT14925 OR T13113) (NLA)
41	AT17511	1	HOUSING	(A) (C) (MARKED T19237) (ALSO ORDER AM1074T) (NLA) (SUB FOR AT14636)
41	AT17511	1	HOUSING	(A) (C) (MARKED T19237) (NLA)
42	T12773	1	BRACKET	(NLA)
43	T12600	1	CAM	(NLA)
44	M4224T	1	PLUG	-
45	T12495	1	GASKET	-
46	19H2552	6	CAP SCREW	3/8" X 1-1/8"
47	AM3426T	2	SEAL	-
48	T13816	1	LIFT ARM	(B) (C) (NLA)
48	T16072	1	ARM	(A) (NLA)
49	M3618T	1	ROUND RETAINER	-
50	R26863	1	O-Ring	(SUB FOR M3617T OR U11023)
51	T18767	2	BUSHING	(SUB FOR T12373) (NLA)
52	14H1039	1	Nut	5/8"
53	12H294	2	Lock Washer	5/8"
54	T16074	2	ANCHOR	(A) (NLA)
55	19H2284	2	Cap Screw	3/8" X 7/8"
56	R73290	4	Washer	(SUB FOR T497T) (SUB 24M7338)
57	19H2328	2	Cap Screw	5/8" X 4"
58	AM1074T	1	BREATHER	-
59	T19238	1	DUST SHIELD	(NLA)
60	37H7	2	Screw	0.190" X 3/8", (SUB FOR M2119T)

ROCKSHAFT HOUSING ASSEMBLY (SINGLE) [02D15]

Нет текстового описания
