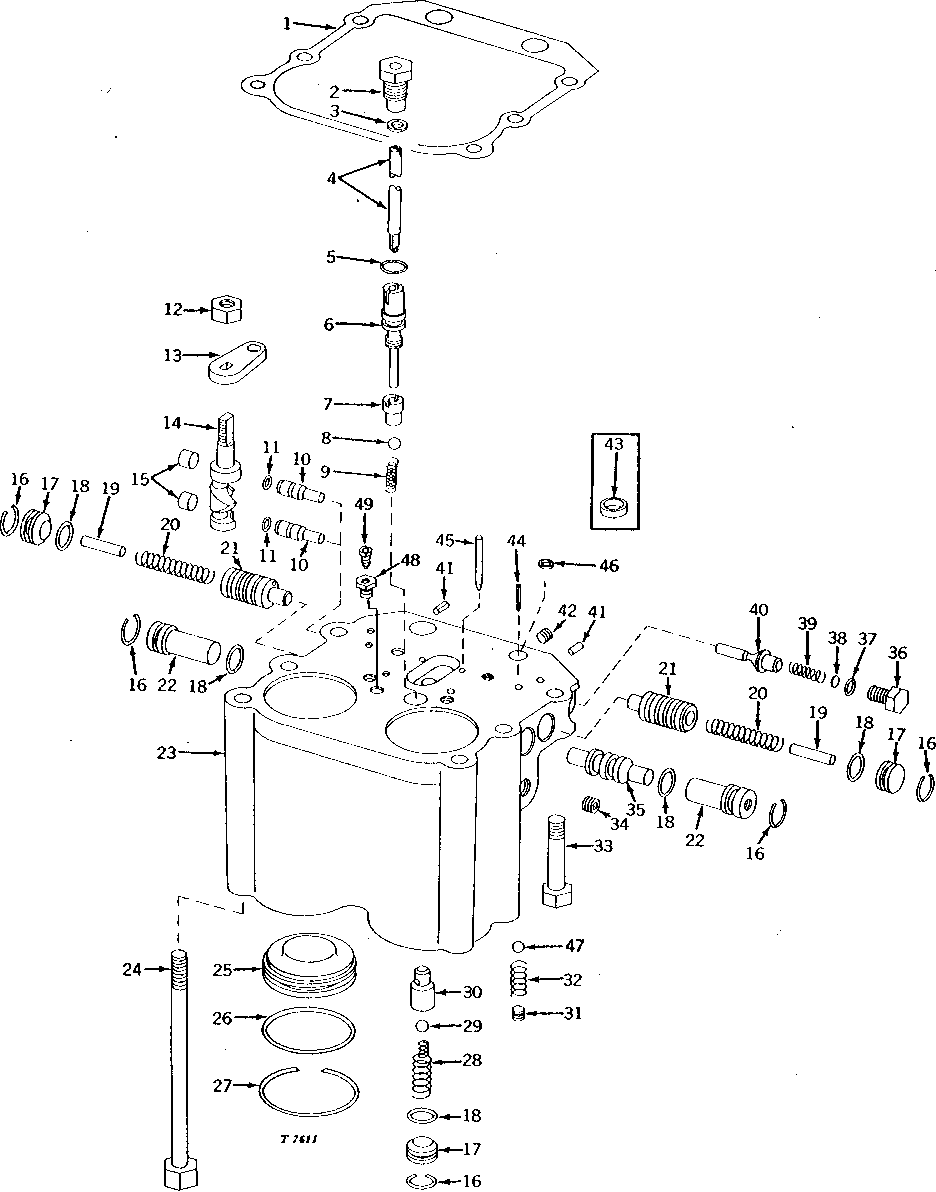

ROCKSHAFT CONTROL VALVE (DUAL) [02E03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T16683	1	GASKET	(SUB FOR T13128)
2	T12684	1	FITTING	(NLA)
3	A4847R	1	Washer	-
4	T12781	1	SHAFT	(NLA)
5	R459R	1	O-Ring	-
6	T12776	1	SCREW	(NLA)
7	T12493	1	SEAT	(NLA)
8	R26552	1	Ball	-
9	T12492	1	SPRING	-
10	T12489	2	VALVE	(NLA)
11	A3917R	2	O-Ring	-
12	14H866	1	Nut	5/8"
13	T12491	1	ARM	(NLA)
14	T12490	1	SHAFT	(NLA)
15	M1098T	2	CAP	-
16	M3265T	6	SNAP RING	-
17	T12619	4	PLUG	-
18	T13119	6	O-Ring	-
19	T15566	1	VALVE	(SUB (2) T19228) (NLR)
20	T12703	2	SPRING	-
21	T19228	2	VALVE	(SUB FOR T12488) (NLA)
22	T17048	2	PLUG	(SUB FOR T12620) (NLA)
23	AT16738	1	HOUSING	(MARKED T19040) (SUB FOR T12657 OR T16963) (NLA)
24	19H1991	4	Cap Screw	1/2" X 8"
25	T12485	2	COVER	-
26	A4444R	2	O-Ring	-
27	T12486	2	Snap Ring	-
28	R26565	2	COMPRESSION SPRING	(SUB FOR T14061)
29	400R	2	Ball	-
30	R59083	2	VALVE	(SUB FOR T15786, R27512 OR R44299)
31	15H275	1	Pipe Plug	1/4"
32	T13815	2	SPRING	-
33	19H1990	2	Cap Screw	1/2" X 2-1/4"
34	15H666	2	Pipe Plug	3/8"
35	T12487	1	VALVE	-
36	R27094	2	Drain Plug	-
37	R26286	2	O-Ring	-
38	T12616	1	SOLID SHIM	0.51 MM (.02")
38	T17538	1	SOLID SHIM	0.76 MM (.03") (NLA)
39	T12615	2	Spring	-
40	T12614	2	VALVE	(NLA)
41	T17370	3	DOWEL PIN	(SUB FOR T12461) (NLA)
42	15H275	9	Pipe Plug	1/4"
43	T16993	1	WASHER	(SUB R26919)
44	T14277	2	SHAFT	-
45	T12775	2	PIN FASTENER	-
46	T17882	1	WASHER	(SUB FOR T13718 AND T16132)
47	R26552	2	Ball	-
48	15H275	1	Pipe Plug	1/4"
48	15H639	1	Pipe Bushing	1/8"
49	AA6314R	1	VALVE	-
49	AA6314R	2	VALVE	-

ROCKSHAFT CONTROL VALVE (DUAL) [02E03]
