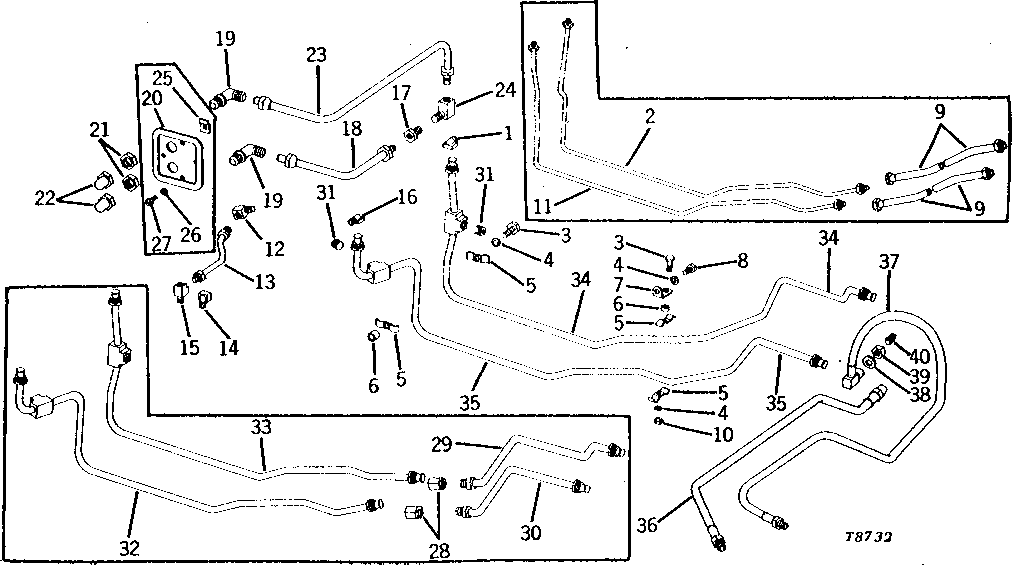

REMOTE CONTROL OIL LINES AND HOSES (SINGLE AND DUAL) [02F01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M1342T	1	ELBOW FITTING	-
2	AT16626	1	LINE	(ALSO ORDER 15H583) (SUB FOR AT12856) (NLA)
3	19H1849	2	Cap Screw	5/16" X 1-1/4"
4	12H303	3	Lock Washer	5/16"
5	T14073	4	Clamp	-
6	T10080	2	WASHER	(NLA)
7	T14074	1	SUPPORT	(NLA)
8	19H1813	1	CAP SCREW	5/16" X 5/8"
9	AM2952T	2	HYDRAULIC HOSE	-
10	14H785	1	Nut	5/16"
11	AT16627	1	LINE	(ALSO ORDER 15H583) (SUB FOR AT12857)
12	T11180	1	Elbow Fitting	-
13	AT13569	1	LINE	-
14	T11180	1	Elbow Fitting	(MANUAL STEERING)
15	T14079	1	TEE FITTING	(POWER STEERING)
16	T14075	1	ELBOW FITTING	-
17	M1343T	1	ADAPTER FITTING	(A) (NLA)
18	AT13942	1	LINE	(A) L.H. (NLA)
19	T15641	2	Fitting	(A) (SUB H113757)
20	AT13943	1	COVER	(A) (SUB FOR T15640) (NLA)
21	R26627	2	Nut	(A)
22	AT17003	2	CAP	(A) (SUB FOR T15643) (NLA)
23	AT13941	1	OIL LINE	(A) R.H. (NLA)
24	T15644	1	ELBOW FITTING	(A) (NLA)
25	T15639	4	CLAMP	(A) (NLA)
26	12H246	4	LOCK WASHER	(A) 0.190"
27	21H1163	4	Screw	(A) 0.216" X 1/2"
28	M1350T	2	UNION FITTING	-
29	AT15170	1	LINE	UPPER (NLA)
30	AT15171	1	LINE	LOWER (NLA)
31	15H666	2	Pipe Plug	3/8"
32	AT16627	1	LINE	L.H.
33	AT16626	1	LINE	R.H. (NLA)
34	AT17438	1	LINE	R.H. LOWER
35	AT17439	1	LINE	L.H. UPPER
36	C14650	1	HYDRAULIC HOSE	(B) (C) (USE WITH AT16627) (NLA)
36	C14650	1	HYDRAULIC HOSE	L.H. (NLA)
37	C14648	1	HYDRAULIC HOSE	(B) (C) (USE WITH AT16626) (NLA)
37	C14648	1	HYDRAULIC HOSE	R.H. (NLA)
38	24H1480	2	Washer	(B) (C) 1-5/32" X 2" X 0.060"
39	14H877	2	Nut	1-1/8"
40	15H624	2	Pipe Plug	(B) (C) 1/2"
