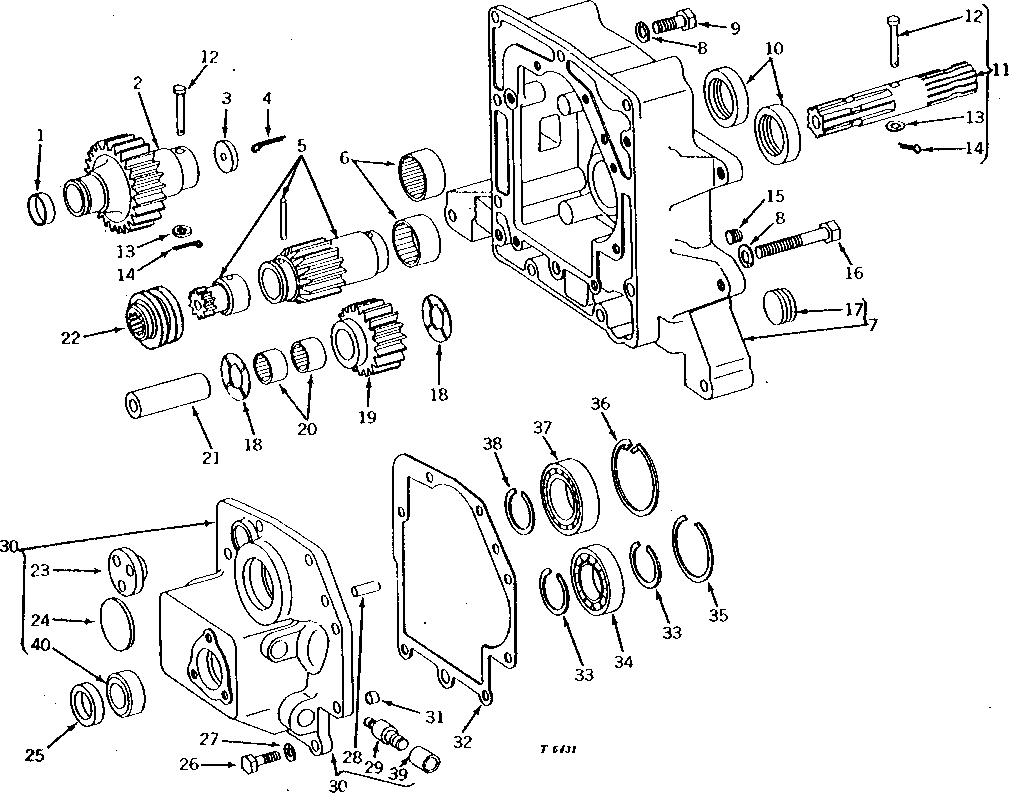

PTO DRIVE SHAFT AND HOUSING (DUAL RANGE) [02B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T13519	1	Plug	-
2	T13512	1	GEAR	-
3	T18627	1	ROUND RETAINER	(SUB FOR T15510)
4	11M7015	1	Cotter Pin	3.200 X 25 MM
5	AT16777	1	DRIVE SHAFT	(ALSO ORDER AT16497) (SUB FOR AT13303)
5	AT16777	1	DRIVE SHAFT	-
6	JD8823	2	Needle Bearing	-
7	AT15168	1	HOUSING	(MARKED T19579) (SUB FOR T14025) (NLA)
8	12H293	9	Lock Washer	7/16"
9	19H1821	3	CAP SCREW	7/16" X 1-1/4"
10	AT12566	2	SEAL	(SUB AT58390)
11	AT16497	1	SHAFT	(SUB FOR T13530 OR T17878)
12	M88436	2	Pin Fastener	(SUB FOR T13531 OR T17471 OR T17879)
13	24H1285	2	Washer	17/64" X 7/16" X 0.065"
14	11M7077	2	Cotter Pin	1.600 X 25 MM
14	11M7079	2	Cotter Pin	0.098" X 0.472"
15	15H666	2	Pipe Plug	3/8"
16	19H2324	4	Cap Screw	7/16" X 4-1/2"
16	19H2640	2	CAP SCREW	7/16" X 2-3/8"
17	T14189	1	Cap	-
17	15H280	1	Pipe Plug	1-1/4"
17	T19216	1	Plug	-
18	T14934	2	THRUST WASHER	-
19	T13511	1	GEAR	-
20	JD8809	2	Needle Bearing	-
21	T13515	1	DOWEL PIN	-
22	T13522	1	SHIFT COLLAR	(NLA)
22	T17005	1	SHIFT COLLAR	-
23	AM1074T	1	BREATHER	-
24	T13518	1	Plug	-
25	AT13945	1	SEAL	-
26	19H1732	7	Cap Screw	3/8" X 1-1/4"
26	19H1731	7	Cap Screw	3/8" X 1"
27	12H304	7	Lock Washer	3/8"
28	R26650	1	Dowel Pin	(SUB FOR B153R)
29	T14184	1	PIN FASTENER	(NLA)
30	AT15090	1	HOUSING	(MARKED T17000) (SUB FOR AT13857) (NLA)
31	T12806	1	BUSHING	-
32	T13514	1	GASKET	(INCLUDED IN AT16080)
33	T14931	2	Snap Ring	-
34	JD8568	1	Ball Bearing	-
35	T14935	1	SNAP RING	-
36	T13513	1	SNAP RING	-
37	JD7692	1	Ball Bearing	-
38	T13521	1	RING	-
39	AT12889	1	Seal	-
40	T18537	1	WASHER	(SUB FOR T16336)

PTO DRIVE SHAFT AND HOUSING (DUAL RANGE) [02B07]

Нет текстового описания
