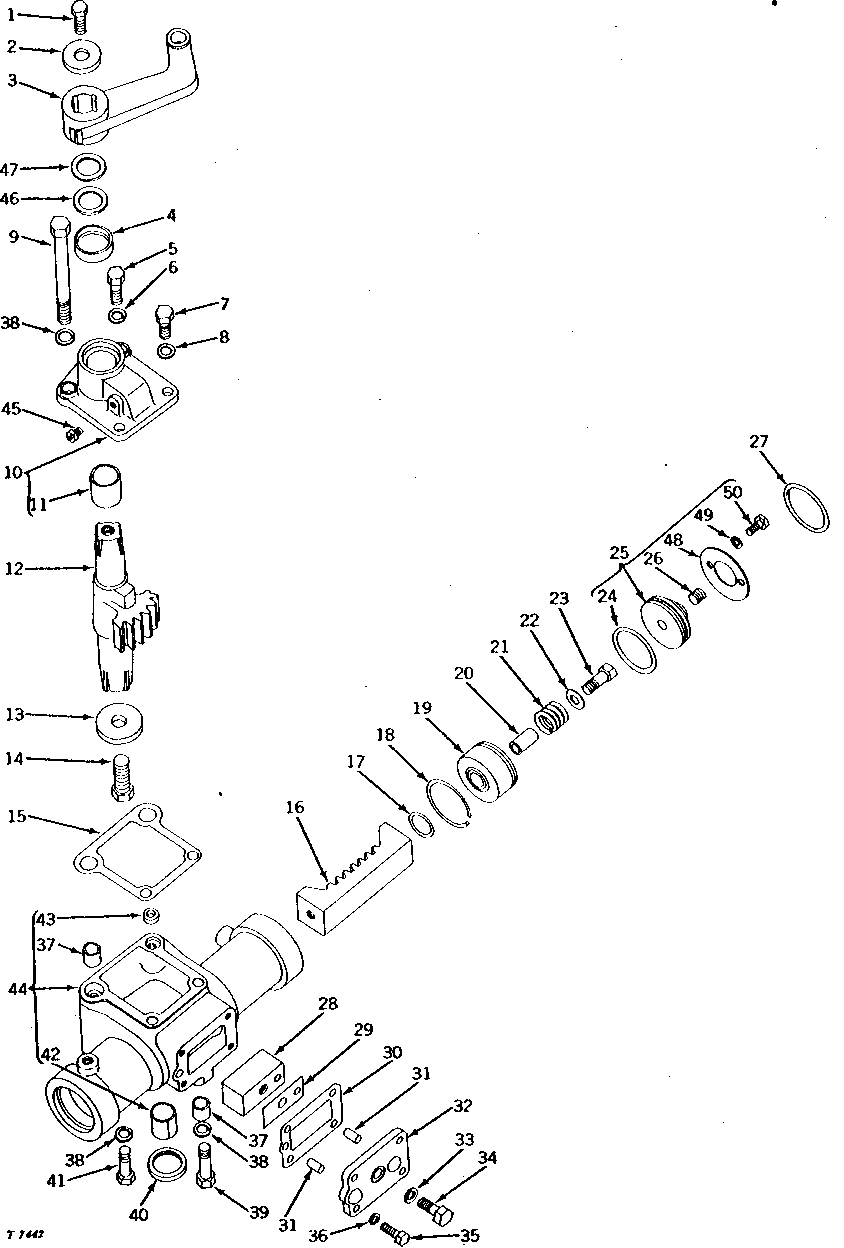

POWER STEERING MOTOR ASSEMBLY (ROW-CROP UTILITY AND HI-CROP) [02D01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1756	1	Cap Screw	5/8" X 1-1/2"
2	M1006T	1	WASHER	(NLA)
3	T18064	1	LEVER	(SUB FOR T12376) (NLA)
4	AT11665	1	SEAL	(SUB H2586B)
5	19H1721	1	CAP SCREW	1/2" X 1-1/2"
6	12H301	1	Lock Washer	1/2"
7	19H1815	2	Cap Screw	1/2" X 1-1/4"
8	F2846R	2	WASHER	-
9	19H2331	1	Cap Screw	5/8" X 7"
10	AT11776	1	BEARING HOUSING W/O BEARING	(MARKED T12218)
11	T15998	1	BUSHING	(SUB FOR T12217)
12	T12432	1	SPINDLE	(NLA)
13	F3607R	1	Washer	-
14	19H1768	1	Cap Screw	3/4" X 2"
15	T12577	1	GASKET	-
16	T18400	1	RACK	(SUB FOR T13039) (NLA)
17	R1225R	2	O-Ring	-
18	T12639	2	PISTON RING	-
18	T18404	2	RING	-
19	T12593	2	PISTON	(NLA)
19	T18399	2	PISTON	(NLA)
20	T12587	2	BUSHING	(NLA)
20	T18397	2	SPACER	(SUB M43318)
21	T12586	2	SPRING	(NLA)
22	24H1162	2	Washer	17/32" X 1-1/4" X 0.060"
23	T12637	2	SCREW	-
23	19H1815	2	Cap Screw	1/2" X 1-1/4"
24	T12582	2	O-Ring	-
25	AT16559	2	COVER	(SUB FOR AT12911) (NLA)
26	15H275	1	Pipe Plug	1/4"
27	T12585	2	SNAP RING	-
28	T12578	1	GUIDE	(NLA)
29	T12579	1	SHIM	0.25MM (.010")
29	T12522	1	SHIM	0.13MM (.005")
30	T12581	1	GASKET	-
31	R1612R	2	Dowel Pin	-
32	T12580	1	COVER	(NLA)
33	F2846R	1	WASHER	-
34	19H1815	1	Cap Screw	1/2" X 1-1/4"
35	19H2552	4	CAP SCREW	3/8" X 1-1/8"
36	12H304	4	Lock Washer	3/8"
37	T12100	1	BUSHING	(NLA)
38	12H294	3	Lock Washer	5/8"
39	19H2592	1	CAP SCREW	5/8" X 2-1/8"
40	AT11927	1	SEAL	-
41	19H2592	1	CAP SCREW	5/8" X 2-1/8"
42	T12704	1	BUSHING	(SUB FOR T12117)
43	T12099	1	BUSHING	(SMALL) (NLA)
44	AT16563	1	HOUSING	(ALSO ORDER AT25808 AND AT16559) (SUB FOR AT11679) (NLA)
44	AT16561	1	HOUSING	(MARKED T18395) (NLA)
45	T11371	1	UNION FITTING	-
46	D1821R	2	WASHER	-
47	T15285	4	Shim	-
48	T18389	2	STOP	(ORDER AT16559) (NLA)
49	12H302	4	Lock Washer	1/4"
50	19H1919	2	Cap Screw	1/4" X 5/8"
50	19H1948	2	Cap Screw	1/4" X 3/4"

POWER STEERING MOTOR ASSEMBLY (ROW-CROP UTILITY AND HI-CROP) [02D01]
