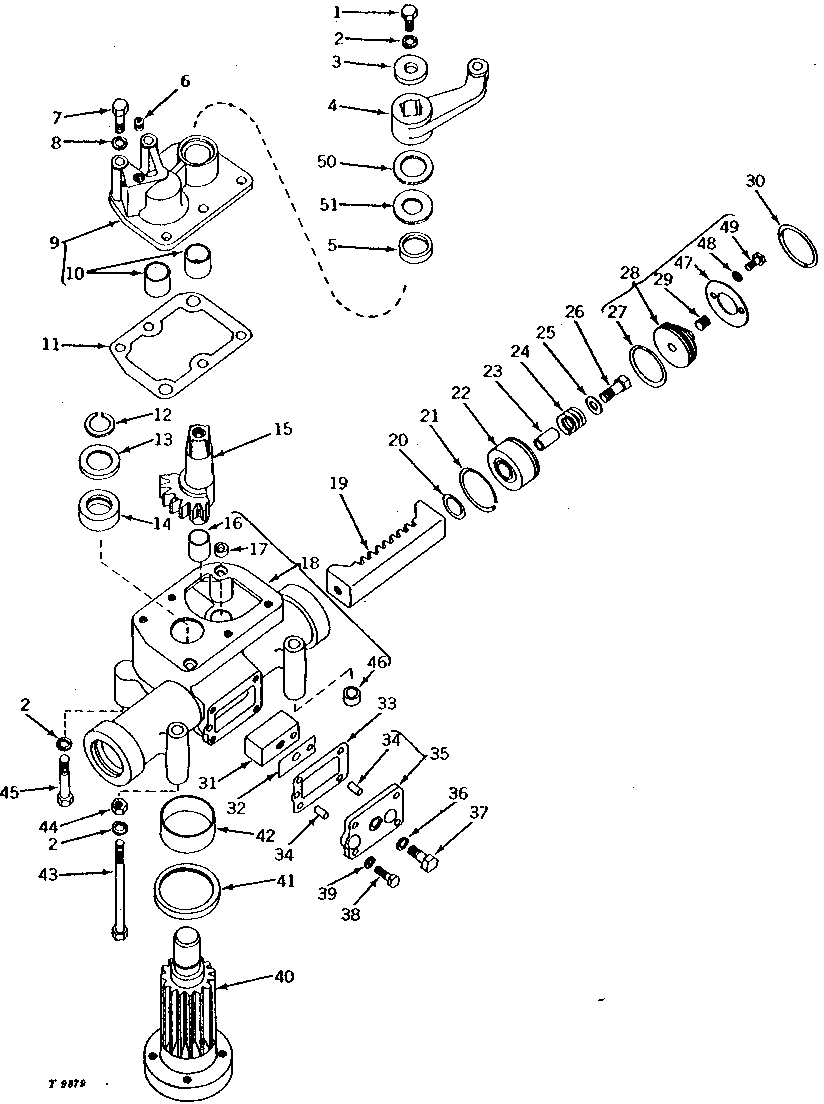

POWER STEERING MOTOR ASSEMBLY (ROW-CROP) [02C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1756	1	Cap Screw	5/8" X 1-1/2"
2	12H294	5	Lock Washer	5/8"
3	M1006T	1	WASHER	(NLA)
4	T13506	1	LEVER	(NLA)
5	AT11665	1	SEAL	(SUB H2586B)
6	15H666	1	Pipe Plug	3/8"
7	19H2473	4	Cap Screw	1/2" X 1-3/4"
7	19H1840	2	CAP SCREW	1/2" X 5-1/2"
8	12H301	6	Lock Washer	1/2"
9	AT12558	1	BEARING HOUSING W/O BEARING	(MARKED T13497) (NLA)
10	T15998	2	BUSHING	(SUB FOR T13498)
11	T13505	1	GASKET	-
12	A562R	1	SNAP RING	-
13	R507R	1	WASHER	-
14	JD8410	1	THRUST BEARING	-
15	T13504	1	SHAFT	(NLA)
16	T14670	1	BUSHING	-
17	T12099	2	BUSHING	(NLA)
18	AT12559	1	HOUSING	(MARKED T13501) (NLA)
18	AT16565	1	HOUSING	(MARKED T18402) (NLA)
19	T18403	1	SHEET	(SUB FOR T13502) (NLA)
20	R1225R	2	O-Ring	-
21	T12639	2	PISTON RING	-
21	T18404	2	RING	-
22	T12593	2	PISTON	(NLA)
22	T18399	2	PISTON	(NLA)
23	T12587	2	BUSHING	(NLA)
23	T18397	2	SPACER	(SUB M43318)
24	T12586	2	SPRING	(NLA)
25	24H1162	2	Washer	17/32" X 1-1/4" X 0.060"
26	19H1815	2	Cap Screw	1/2" X 1-1/4"
26	T12637	2	SCREW	-
27	T12582	2	O-Ring	-
28	AT16559	2	COVER	(SUB FOR AT12911) (NLA)
29	15H275	1	Pipe Plug	1/4"
30	T12585	2	SNAP RING	-
31	T12578	1	GUIDE	(NLA)
32	T12579	1	SHIM	0.25MM (.010")
32	T12522	1	SHIM	0.13MM (.005")
33	T12581	1	GASKET	-
34	R1612R	2	Dowel Pin	-
35	T12580	1	COVER	(NLA)
36	F2846R	1	WASHER	-
37	19H1815	1	Cap Screw	1/2" X 1-1/4"
38	19H2552	4	CAP SCREW	3/8" X 1-1/8"
39	12H304	4	Lock Washer	3/8"
40	T13503	1	SPINDLE	(NLA)
41	AT43688	2	SEAL	(SUB FOR AT12557)
42	T14669	1	BUSHING	-
43	08H4136	2	CAP SCREW	5/8" X 8"
44	14H1039	2	Nut	5/8"
45	19H2641	2	Cap Screw	5/8" X 3-1/4"
46	T12100	1	BUSHING	(NLA)
47	T18389	2	STOP	(ORDER AT16559) (NLA)
48	12H302	4	Lock Washer	1/4"
49	19H1948	4	Cap Screw	1/4" X 3/4"
50	T15285	1	Shim	-
51	D1821R	2	WASHER	-
