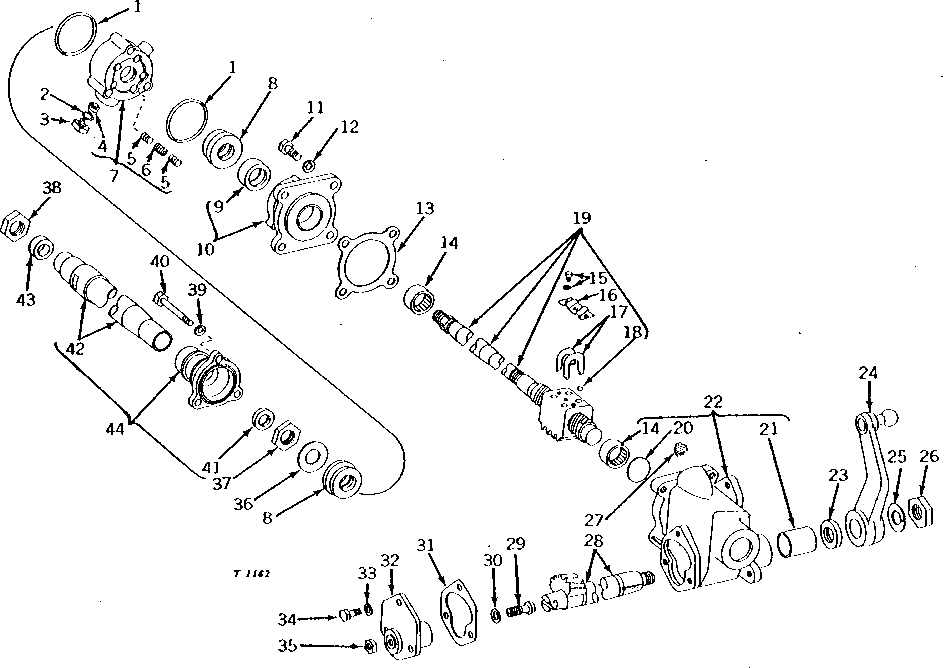

POWER STEERING GEAR HOUSING AND SHAFT [02C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A29498	2	O-Ring	(SUB FOR T13641)
2	R459R	1	O-Ring	(SUB FOR T10750 OR T13642)
3	T13644	1	FITTING	(NLA)
4	T13635	3	FITTING	(NLA)
5	T13636	10	PLUNGER	-
6	T13637	5	SPRING	-
7	AT12600	1	VALVE	(NLA)
8	AT12601	2	THRUST BEARING	-
9	AT129241	1	SEAL KIT	(SUB FOR AT12604)
10	AT12602	1	ADAPTER FITTING	(NLA)
11	19H2964	4	Cap Screw	7/16" X 1-1/8"
12	12H293	4	Lock Washer	7/16"
13	T13638	1	GASKET	-
14	JD8832	2	NEEDLE BEARING	(SUB FOR AT12603)
15	AT12595	3	SCREW	(NLA)
16	T13645	1	CLAMP	(A) (C) (NLA)
16	T13647	1	CLAMP	(B) (NLA)
17	T13646	4	GUIDE	(A) (C) (NLA)
17	T13648	4	GUIDE	(B) (NLA)
18	T13624	72	Ball	-
19	AT12607	1	SHAFT	(A) (C)
19	AT12612	1	SHAFT	(B) (NLA)
20	30H23	1	PLUG	1-3/4"
21	T13634	1	BUSHING	-
22	AT12606	1	HOUSING	(NLA)
23	AT12598	1	SEAL	-
24	T19294	1	LEVER	(NLA)
24	AT12282	1	ARM	(NLA)
25	12H245	1	Lock Washer	7/8"
26	T13629	1	NUT	(NLA)
27	15H584	1	Pipe Plug	1/2"
28	T13633	1	STEERING GEAR	(NLA)
29	T13632	1	ADJUSTER	(NLA)
30	AT12597	1	SHIM	(NLA)
31	T13631	1	GASKET	-
32	AT12599	1	COVER	(NLA)
33	12H304	3	Lock Washer	3/8"
34	19H2284	3	Cap Screw	3/8" X 7/8"
35	14H934	1	Nut	7/16"
36	T13643	1	WASHER	(NLA)
37	T13639	1	LOCK NUT	-
38	T13630	1	Nut	-
39	12H304	3	Lock Washer	3/8"
40	19H2023	3	CAP SCREW	3/8" X 3-1/4"
41	AT12605	1	SEAL	-
42	AT12609	1	TUBE	(A) (C) (NLA)
42	AT16898	1	LINE	(A) (C) (NLA)
42	AT12610	1	TUBE	(B) (NLA)
42	AT16900	1	LINE	(B) (NLA)
43	AT12596	1	BEARING	(SUB AT56224, T71999, T72000 AND T72001)
44	AT12608	1	COVER	(A) (C) (NLA)
44	AT16897	1	COVER	(A) (C) (NLA)
44	AT12611	1	COVER	(B) (NLA)
44	AT16899	1	LINE	(B) (NLA)

POWER STEERING GEAR HOUSING AND SHAFT [02C17]

Нет текстового описания
