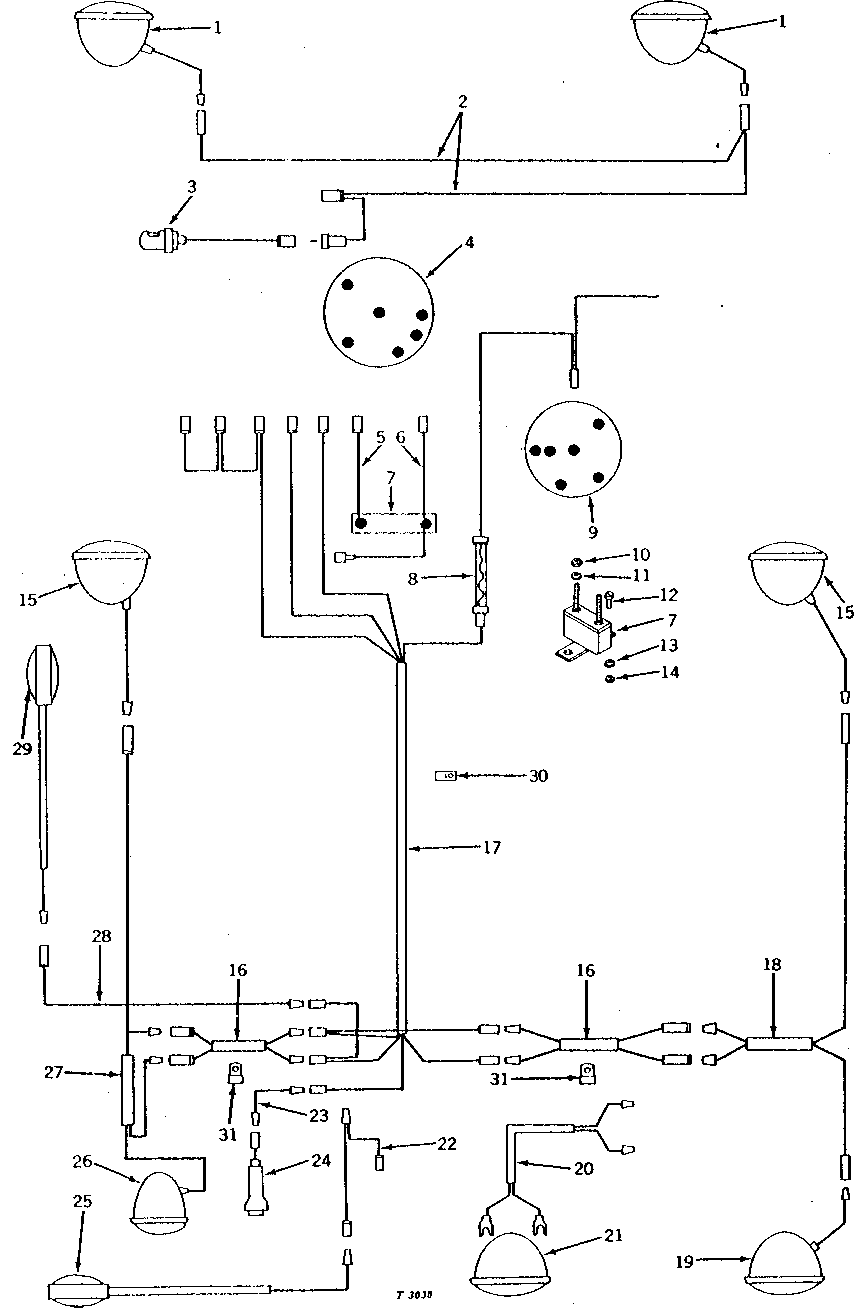

LIGHTING SYSTEM WIRING HARNESS (HI-CROP AND ROW-CROP UTILITY) (TRACTOR SERIAL NO. 010001-042000) [01G07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE27099	2	HEADLIGHT	(SUB FOR AT12935)
2	AT15949	1	WIRING HARNESS	(SUB FOR AT12936) (NLA)
3	AR33479	1	LAMP	(SUB FOR AR35993)
4	AR28401	1	SWITCH	-
5	-	1	Part 5	127 MM (5") (MAKE FROM R66319, R32018, R32024 AND R32027) (SUB FOR AT12932)
6	AT15823	1	WIRING LEAD	(SUB FOR AT12931) (NLA)
7	AR28403	1	CIRCUIT BREAKER	-
8	AT12928	1	FUSE HOLDER	(NLA)
9	AR26528	1	SWITCH	(A)
9	AT11889	1	SWITCH	(SUB AT16703 AND AT16704)
9	AT16703	1	SWITCH	(B)
10	14H631	2	Nut	0.190"
11	12H246	2	LOCK WASHER	0.190"
12	21H1017	2	SCREW	0.190" X 3/8"
13	12H246	2	LOCK WASHER	0.190"
14	14H778	2	Nut	0.190"
15	RE27099	2	HEADLIGHT	(C) (SUB FOR AT12935)
16	AT14139	2	WIRING HARNESS	(C) (NLA)
17	AT12934	1	WIRING HARNESS	(NLA)
18	AT14140	1	WIRING HARNESS	(C) (NLA)
19	AT11935	1	LAMP	(C)
20	AT13371	1	WIRING HARNESS	(D) (NLA)
21	AR77326	1	FLOODLAMP	(D) (SUB FOR AT16288)
22	AT13376	1	WIRING HARNESS	(D) (NLA)
23	-	1	Part 25	406 MM (16") (MAKE FROM R66319, R32024, R32025 AND (2) R32027) (SUB FOR AT12927)
24	AR26571	1	SOCKET	-
25	AT13375	1	LAMP	(D) (NLA)
26	AT11883	1	LAMP	(C) (NLA)
27	AT14141	1	WIRING HARNESS	(C) (NLA)
28	-	1	Part 30	(C) 1320 MM (52") (MAKE FROM R66319, R32024, R32025 AND (2) R32027) (SUB FOR AT12925)
29	RE65495	1	LAMP	(C) (SUB FOR AT12311 OR AR26584)
30	T13814	3	Clamp	(C)
31	T14264	2	Clamp	(C)

LIGHTING SYSTEM WIRING HARNESS (HI-CROP AND ROW-CROP UTILITY) (TRACTOR SERIAL NO. 010001-042000) [01G07]
