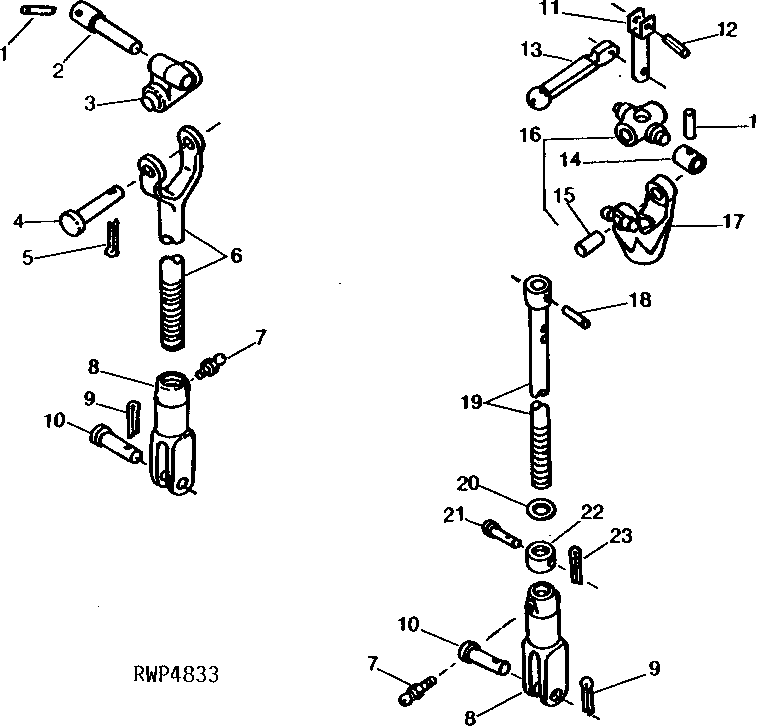

LIFT LINKS (ROW-CROP AND ROW-CROP UTILITY) [02F09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H335	2	SPRING PIN	5/16" X 2-1/8"
2	T18235	1	PIN FASTENER	-
3	T18237	1	UNIVERSAL JOINT	(NLA)
4	T18234	1	PIN	(NLA)
5	11M7021	1	Cotter Pin	4 X 25 MM
6	AT16413	1	YOKE	(C) (NLA)
6	AT16415	1	YOKE	(A) (C) (NLA)
6	AT16417	1	YOKE	(B) (D) (NLA)
6	AT16413	1	YOKE	(A) (B) (D) (NLA)
7	JD7797	2	Lubrication Fitting	-
8	T12531	2	CLEVIS	-
9	11M7030	2	Cotter Pin	5 X 40 MM
10	T12628	2	Pin	-
11	T13859	2	SHAFT	-
11	T13859	1	SHAFT	-
12	34H283	2	Spring Pin	3/16" X 1-1/8"
12	34H283	1	Spring Pin	3/16" X 1-1/8"
13	T13858	2	GRIP	-
13	T13858	1	GRIP	-
14	R26619	2	BUSHING	-
14	R26619	1	BUSHING	-
15	R26616	2	DOWEL PIN	-
15	R26616	4	DOWEL PIN	-
16	AR26691	2	KNUCKLE	(SUB R26612, (2) R26616 AND R26619)
16	AR26691	1	KNUCKLE	(SUB R26612, (2) R26616 AND R26619)
17	R26613	1	YOKE	R.H.
17	R26614	1	YOKE	L.H.
18	34H316	2	Spring Pin	1/4" X 1-1/2"
18	34H316	1	Spring Pin	1/4" X 1-1/2"
19	T13348	2	LINK	(B) (NLA)
19	T13258	1	LINK	(A) (B) (D) (NLA)
19	T13258	2	LINK	(A) (B) (NLA)
19	T13348	1	LINK	(B) (D) (NLA)
19	T13261	1	LINK	(C) (NLA)
19	T13261	2	LINK	(A) (C) (NLA)
19	T13258	1	LINK	(C) (NLA)
19	T13258	1	LINK	(C) (NLA)
20	R26808	1	WASHER	0.91 MM (.036")
20	24M7292	1	Washer	1.52 MM (.06") (SUB FOR R26809)
21	R26810	2	Pin Fastener	-
21	R26810	1	Pin Fastener	-
22	R26714	2	BUSHING	-
22	R26714	1	BUSHING	-
23	11M7081	2	Cotter Pin	2.500 X 20 MM
23	11M7081	1	Cotter Pin	2.500 X 20 MM

LIFT LINKS (ROW-CROP AND ROW-CROP UTILITY) [02F09]
