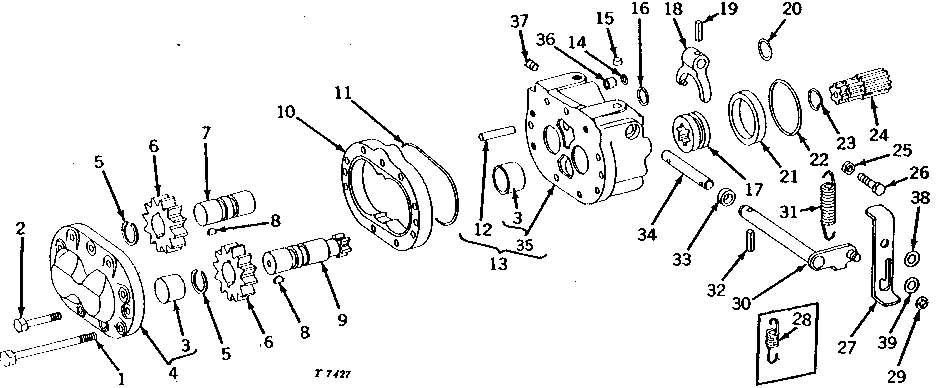

HYDRAULIC PUMP (MANUAL STEERING) [02D13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2104	3	Cap Screw	3/8" X 5"
2	19H1801	6	CAP SCREW	3/8" X 2"
3	T13780	1	BUSHING	(NLA)
4	AT12673	1	COVER	(MARKED T13781) (NLA)
5	T13790	4	SNAP RING	-
6	T13794	2	STEERING GEAR	(NLA)
7	T13793	1	SHAFT	(NLA)
8	M1869T	2	Shaft Key	-
9	T13792	1	DRIVE SHAFT	(NLA)
10	T13791	1	HOUSING	-
11	T16572	2	WASHER	(SUB FOR M1030T)
12	R32186	2	DOWEL PIN	(SUB FOR M1027T)
13	AT14942	1	BASE	(MARKED T16699) (SUB FOR AT12674) (NLA)
14	A3917R	2	O-Ring	-
15	M1102T	1	PLUG	-
16	B2762R	1	O-Ring	-
17	T13788	1	SPLINED COUPLING	-
18	T13784	1	FORK	-
19	34H280	1	Spring Pin	3/16" X 7/8"
20	T16693	1	WASHER	(SUB FOR A4730R)
21	T13797	1	BUSHING	(NLA)
21	T15137	1	BUSHING	(NLA)
22	T16692	1	WASHER	-
22	M4237T	1	O-Ring	(SUB FOR T13798 OR T13722)
23	M205T	1	SNAP RING	-
24	T13796	1	SHAFT	-
25	14H850	1	NUT	1/4"
26	19H1791	1	Cap Screw	1/4" X 1-1/4"
27	T15353	1	ACTUATOR	(HI-CROP AND ROW-CROP UTILITY)
27	T15189	1	LEVER	(ROW-CROP) (NLA)
28	T15354	1	SPRING	(SUB T16736 AND (2) 24H1136)
29	R72653	1	Snap Ring	(SUB FOR M2396T)
30	AT12677	1	SHAFT	(NLA)
30	AT13747	1	SHAFT	(NLA)
31	T15190	1	SPRING	(ROW-CROP) (NLA)
31	T15355	1	SPRING	(HI-CROP AND ROW-CROP UTILITY)
32	34H280	1	Spring Pin	3/16" X 7/8"
33	AM3391T	1	SEAL	-
34	T13789	1	PIN FASTENER	(NLA)
34	T15450	1	PIN	(NLA)
35	AT15622	1	BASE	(MARKED T16699) (NLA)
36	T16479	1	WASHER	-
37	15H666	1	Pipe Plug	3/8"
38	24H1685	2	Washer	11/32" X 47/64" X 0.083"
39	T16736	1	Washer	-
..	AT12670	1	HYDRAULIC PUMP	(7 GPM) (NLA)
..	AT14933	1	HYDRAULIC PUMP	(7 GPM) (NLA)

HYDRAULIC PUMP (MANUAL STEERING) [02D13]
