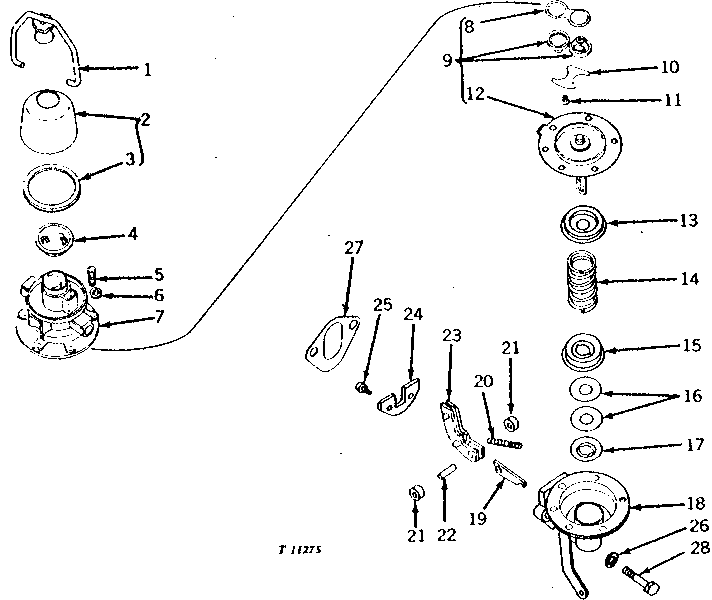

FUEL PUMP ASSEMBLY (AUXILIARY DIESEL FUEL FILTER) (NOT USED IN U.S. AND CANADA) [01E02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT10638	1	BAIL	-
2	AT15172	1	BOWL	(USE WITH AT11897)
2	AR40407	1	SEDIMENT BOWL	(USE WITH AT21725)
3	R30409	1	Gasket	(USE WITH AT11897)
3	R40565	1	WASHER	(USE WITH AT21725)
4	AT10635	1	SCREEN	-
5	21H1104	6	Screw	0.190" X 5/8"
5	21H983	6	SCREW	0.190" X 5/8"
6	12H246	6	LOCK WASHER	0.190"
7	T10805	1	HOUSING	(SUB AR55692)
8	T10807	1	GASKET	-
9	AT15803	1	KIT	FUEL PUMP DIAPHRAGM, (SUB AR55692)
10	T10800	1	PLATE	(USE WITH AT11897) (SUB AR55692) (NLA)
11	21H1103	2	SCREW	0.138" X 3/8"
12	-	1	Part 15	(SUB AR55692)
13	T17081	1	RETAINER	(NLA)
14	T17083	1	SPRING	(NLA)
15	T10801	1	RETAINER	(NLA)
16	T10803	2	WASHER	(NLA)
17	T10802	1	RETAINER	(NLA)
18	AT15173	1	HOUSING	(NLA)
19	T10799	1	LINK	(NLA)
20	T10804	1	SPRING	-
21	R30414	2	BEARING	(NLA) (SUB FOR T18957)
22	R30413	1	PIN	(NLA)
23	AT15174	1	ROCKER ARM	(NLA)
24	T17080	1	VALVE	(NLA)
25	21H1103	2	SCREW	0.138" X 3/8", (SUB FOR T17082)
26	T27860	2	Washer	(SUB FOR R20498, THIS APPLICATION)
27	R97350	1	GASKET	(SUB FOR R27285)
28	19H1849	2	Cap Screw	5/16" X 1-1/4"
..	AR55692	1	FUEL PUMP	(SUB FOR AT11897 OR AT21725)

FUEL PUMP ASSEMBLY (AUXILIARY DIESEL FUEL FILTER) (NOT USED IN U.S. AND CANADA) [01E02]
