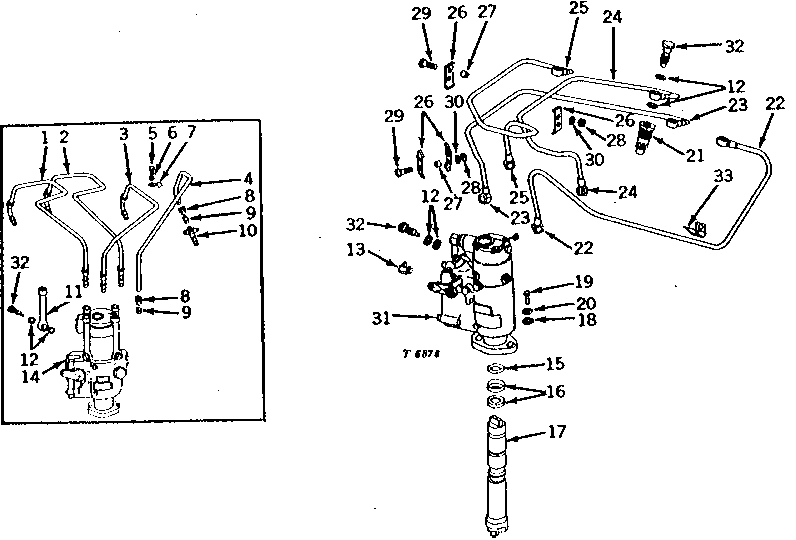

FUEL INJECTION SYSTEM (TRACTOR SERIAL NO. 010001-042000) [01E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT13730	1	FUEL LINE	(NO. 4)
2	AT13729	1	FUEL LINE	(NO. 3)
3	AT13732	1	FUEL LINE	(NO. 2) (NLA)
4	AT13731	1	FUEL LINE	(NO. 1) (NLA)
5	19H1900	4	Cap Screw	5/16" X 3/4"
6	12H303	4	Lock Washer	5/16"
7	T11337	4	CLAMP	(NLA)
8	R469R	8	FITTING	-
9	R468R	8	SLEEVE	-
10	AT11077	4	NOZZLE	-
11	T11291	4	FITTING	-
12	T11292	8	WASHER	(SUB FOR T11950)
12	T11292	16	WASHER	-
13	AT11713	1	ELBOW FITTING	(NLA)
13	T16621	1	ELBOW FITTING	(NLA)
13	T12938	1	Elbow Fitting	-
14	AT11769	1	FUEL INJECTION PUMP	(NLA)
15	R460R	1	O-Ring	-
16	T11290	2	SEAL	-
17	T11289	1	DRIVE SHAFT	-
18	24H1136	2	Washer	11/32" X 11/16" X 0.065", (SUB FOR L1198T)
19	19H1849	2	Cap Screw	5/16" X 1-1/4"
20	12H303	2	Lock Washer	5/16"
21	AT16344	4	NOZZLE HOLDER	-
22	AT16474	1	FUEL LINE	(NO. 1)
23	AT16475	1	FUEL LINE	(NO. 2)
24	AT16476	1	FUEL LINE	(NO. 3) (NLA)
25	AT16477	1	FUEL LINE	(NO. 4) (NLA)
26	T18557	4	CLAMP	(NLA)
27	T18333	4	BUSHING	-
28	14H778	4	Nut	0.190"
29	21H1148	4	Screw	0.190" X 3/4"
30	12H246	4	LOCK WASHER	0.190"
31	AT16518	1	FUEL INJECTION PUMP	(NLA)
32	R26726	4	HOLLOW SCREW	-
32	R26726	8	HOLLOW SCREW	-
33	T13913	1	Clip	-

FUEL INJECTION SYSTEM (TRACTOR SERIAL NO. 010001-042000) [01E18]
