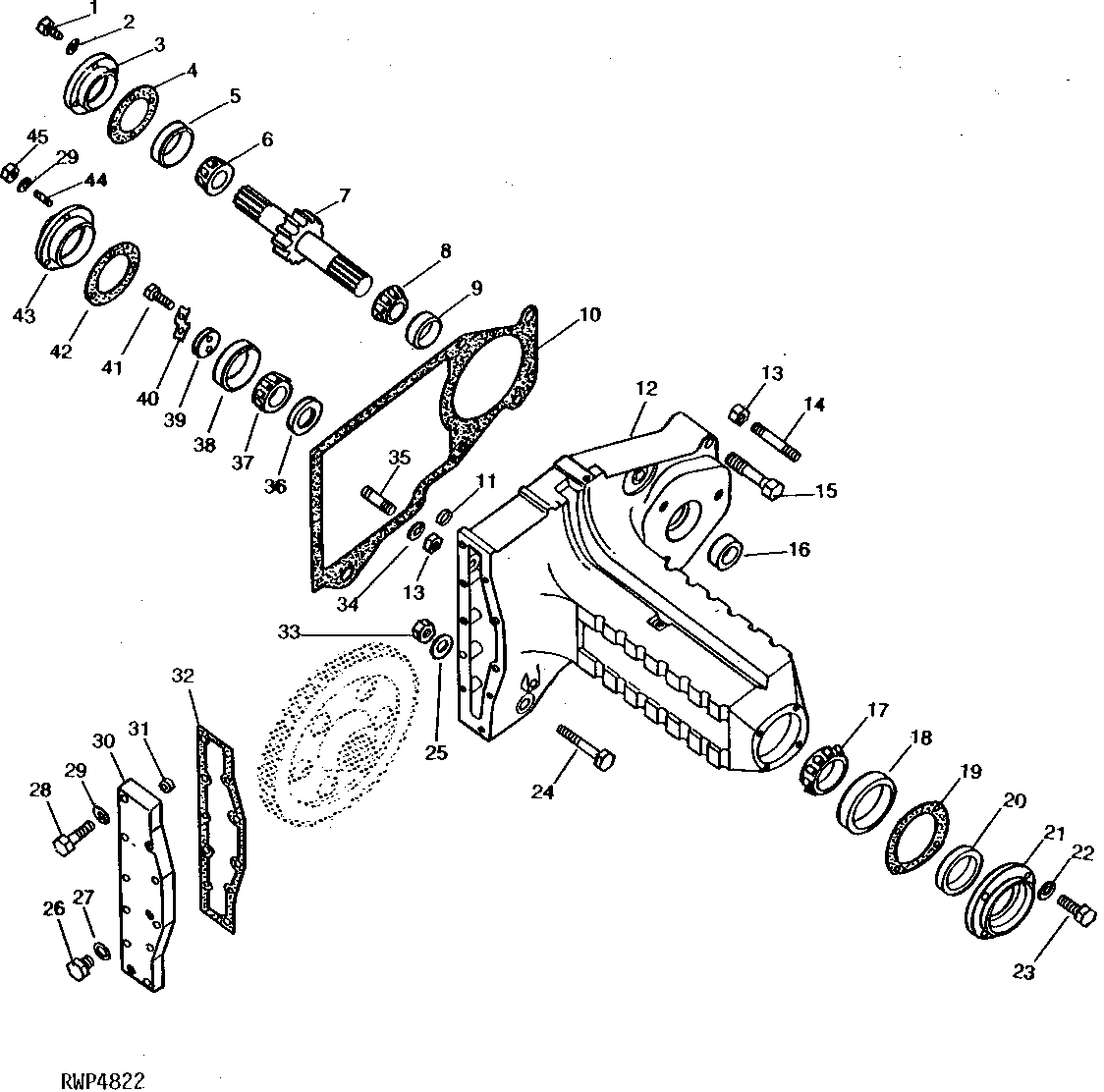

FINAL DRIVE ASSEMBLY (ROW-CROP AND ROW-CROP UTILITY) [02C06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1905	4	Cap Screw	5/16" X 1"
2	12H303	4	Lock Washer	5/16"
3	T12566	1	BEARING HOUSING W/O BEARING	(NLA)
4	T12573	1	SHIM	0.05 MM (.002")
4	T12574	1	SHIM	0.13 MM (.005") (NLA)
4	T12575	1	SHIM	0.25 MM (.010") (NLA)
5	JD8219	1	BEARING CUP	-
6	JD8174	1	BEARING CONE	-
7	T12568	1	SHAFT	(NLA)
7	T18163	1	DRIVE SHAFT	(NLA)
8	JD8100	1	Bearing Cone	-
9	JD7424	1	Bearing Cup	-
10	T12572	1	GASKET	-
11	30H17	2	Plug	1-1/4"
12	T17254	1	HOUSING	R.H. (SUB FOR T12624, T15592 AND T16160) (NLA)
12	T17255	1	HOUSING	L.H. (SUB FOR T12625, T15593 AND T16161) (NLA)
13	14H1039	2	Nut	5/8"
14	T13216	1	STUD	(NLA)
15	M2671T	1	BOLT	(4 USED RIGHT HOUSING, 3 USED LEFT HOUSING) (NLA)
16	AT12540	1	Seal	-
17	JD8169	1	Bearing Cone	-
17	JD8975	1	BEARING CONE	(A) (PINION ADJUSTED REAR WHEEL)
18	JD8216	1	Bearing Cup	-
18	JD8210	1	Bearing Cup	(A) (PINION ADJUSTED WHEELS)
19	T12563	1	SHIM	0.05 MM (.002")
19	T12564	1	SHIM	0.13 MM (.005")
19	T12565	1	SHIM	0.25 MM (.010")
20	AT12541	1	SEAL	-
20	AT16431	1	SEAL	(A) (SUB RE13181) (PINION ADJUSTED WHEELS)
21	T12567	1	HOUSING	-
21	T18287	1	HOUSING	(B) (HIGH CLEARANCE) (A) (PINION ADJUSTED WHEELS) (NLA)
22	12H293	4	Lock Washer	7/16"
23	19H1978	4	Cap Screw	7/16" X 1-1/2"
23	19H1821	4	CAP SCREW	7/16" X 1-1/4"
24	19H2627	2	CAP SCREW	7/8" X 4-3/4"
25	T19572	2	Washer	-
26	M1746T	2	Drain Plug	-
27	T13213	2	WASHER	(SUB FOR M1038T)
28	19H1801	10	CAP SCREW	3/8" X 2"
29	12H304	13	Lock Washer	3/8"
30	T16159	1	COVER	(SUB FOR T12571) (NLA)
30	T16158	1	COVER	(SUB FOR T12570) (NLA)
31	M2152T	5	WASHER	-
31	M2152T	4	WASHER	-
32	T12569	1	GASKET	-
33	14H830	2	NUT	7/8"
34	12H294	1	Lock Washer	5/8"
35	M3210T	2	STUD	(SUB FOR B1333R)
36	M1005T	1	WASHER	-
36	T18169	1	WASHER	(NLA)
37	JD7395	1	Bearing Cone	-
38	JD7418	1	Bearing Cup	-
39	M2369T	1	BEARING HOUSING W/O BEARING	-
40	M2370T	1	LOCK	-
41	19H1815	2	Cap Screw	1/2" X 1-1/4"
42	T18170	1	GASKET	(SUB FOR T12562) (NLA)
43	T12561	1	BEARING HOUSING W/O BEARING	-
44	R32042	3	STUD	3/8" X 1-3/8"
45	14H1076	3	Nut	3/8"

FINAL DRIVE ASSEMBLY (ROW-CROP AND ROW-CROP UTILITY) [02C06]
