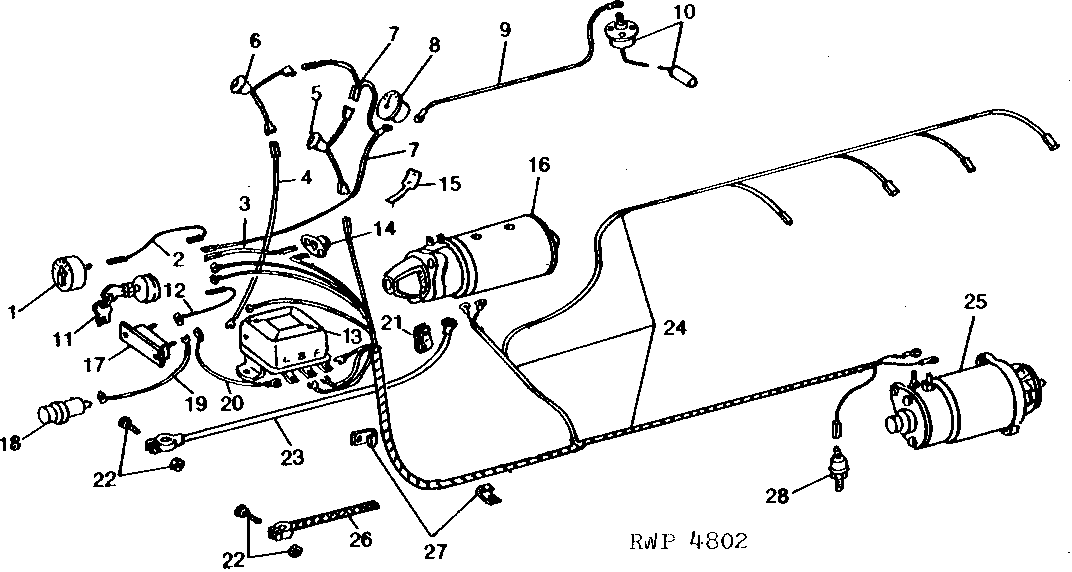

ELECTRICAL WIRING (DIESEL) (TRACTOR SERIAL NO. 042001- ) [01G11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR28401	1	SWITCH	LIGHT
2	-	1	Part 2	165 MM (6-1/2") (MAKE FROM TY16069 AND (2) R32024)
3	-	1	Part 3	381 MM (15") (MAKE FROM R66319 AND (2) R32024)
4	-	1	Part 4	318 MM (12-1/2") (MAKE FROM R66319, R32016 AND R32024)
5	-	1	Part 5	OIL PRESSURE INDICATOR, (SUB FOR AT17816)
6	-	1	Part 6	GENERATOR INDICATOR
7	AT17602	1	WIRING HARNESS	TEL-LIGHT (NLA)
8	AR46271	1	GAUGE	FUEL, (SUB FOR R34262 OR AT27153)
9	-	1	Part 9	508 MM (20") (MAKE FROM R66319 AND (2) R32018)
10	AT12643	1	SENDER	FUEL GAUGE
11	AT17621	1	SWITCH	IGNITION
12	-	1	Part 12	130 MM (5-1/8") (MAKE FROM TY16069, R32019 AND R32024)
13	AT11855	1	VOLTAGE REGULATOR	(DELCO-REMY NO. 1118779)
14	RE42069	1	STARTER MOTOR KIT	NEUTRAL START (SUB FOR AR26413, APPL)
15	-	1	Part 15	318 MM (12-1/2") (MAKE FROM R66319, R32016 AND R32024)
16	TY6695	1	STARTER MOTOR	(12-VOLT) (DELCO-REMY) (REMANUFACTURED) (SUB FOR AT17411, AT17515 OR TY1457)
16	AT17515	1	STARTER MOTOR	STARTING (PRESTOLITE NO. MFX-8001A) (SUB TY6695)
16	AT17411	1	STARTER MOTOR	STARTING (DELCO-REMY NO. 1107573) (SUB TY6695)
17	AR28403	1	CIRCUIT BREAKER	-
18	AT17607	1	ELECTRICAL LIGHTER	(SUB FOR AT17608) (NLA)
19	-	1	Part 21	140 MM (5-1/2") (MAKE FROM R66319 AND (2) R32018) (SUB FOR AT559T)
20	-	1	Part 22	406 MM (16") (MAKE FROM R66321 AND (2) R32019)
21	T13814	1	Clamp	BATTERY CABLE
22	AM505T	2	BOLT	-
23	AT16286	1	CABLE	BATTERY, (SUB FOR AT12644)
24	AT17598	1	WIRING HARNESS	-
25	AR21906	1	DC GENERATOR	(DELCO-REMY NOS. 1100399 AND 1947579) (20 AMPS) (SUB FOR AT12649) (SUB TY1440)
25	TY24307	1	ALTERNATOR	(SUB FOR AR21906 OR TY1430)
25	SE501389	1	GENERATOR	(REMAN FOR AR21906)
26	AB1833R	1	GROUND CABLE	BATTERY
27	T19935	3	Clamp	-
28	AR27977	1	TOUCH SWITCH	OIL PRESSURE INDICATOR
