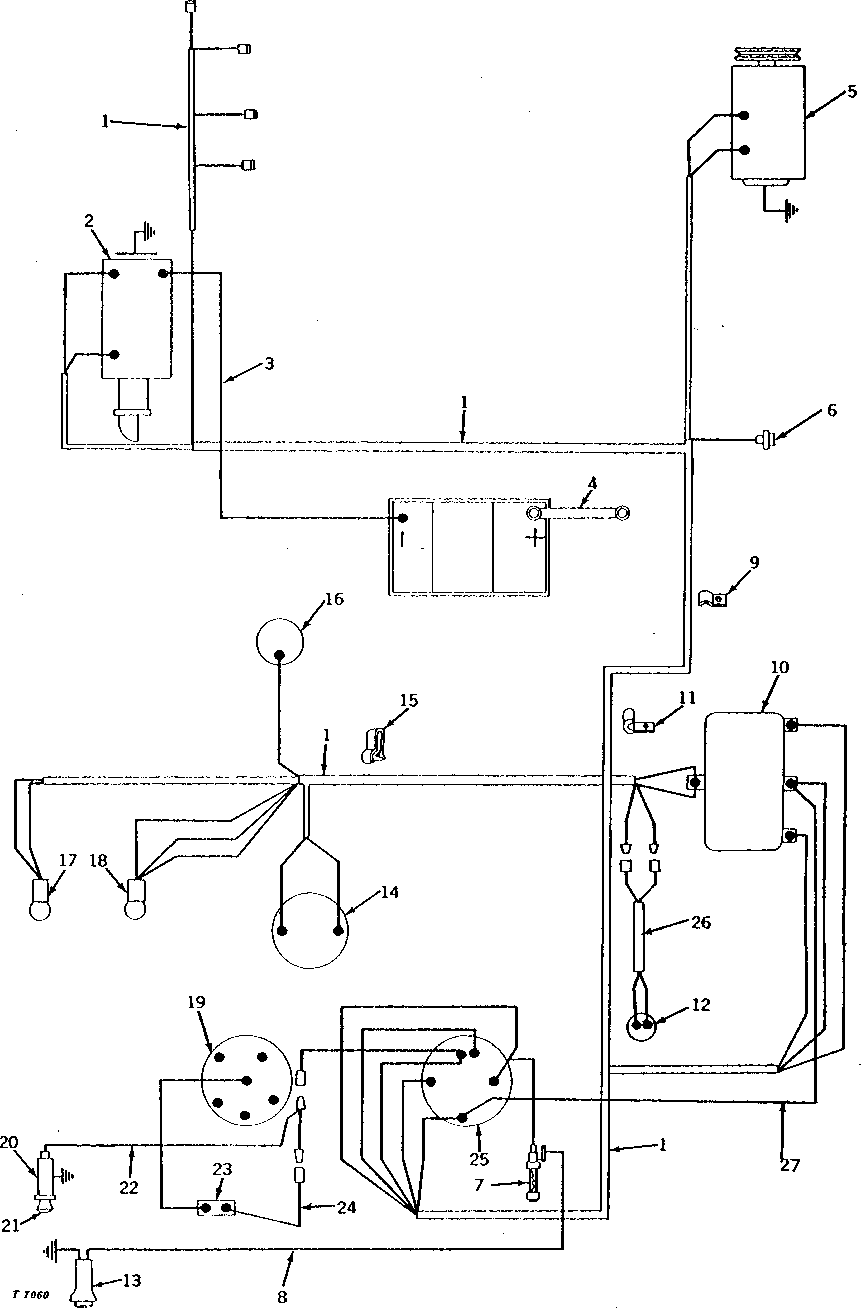

ELECTRICAL SYSTEM WIRING HARNESS (DIESEL) (TRACTOR SERIAL NO. 010001-042000) [01G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT16868	1	WIRING HARNESS	(NLA)
1	AT15948	1	WIRING HARNESS	(ALSO ORDER AT15945) (SUB FOR AT12947 OR AT14035)
2	AT17411	1	STARTER MOTOR	(DELCO-REMY NO. 1107573) (SUB FOR AT12458, AT15334 OR AT16209) (SUB TY6695)
2	TY6695	1	STARTER MOTOR	(12-VOLT) (DELCO-REMY) (REMANUFACTURED)
3	AT16286	1	CABLE	(SUB FOR AT12644, AT17411 OR TY1457)
4	AB1833R	1	GROUND CABLE	-
5	AR21906	1	DC GENERATOR	(DELCO-REMY NOS. 1100399 AND 1947579) (20 AMPS) (SUB FOR AT12649) (SUB TY1440)
5	SE501389	1	GENERATOR	(REMAN FOR AR21906)
6	AR27977	1	TOUCH SWITCH	-
7	AT12928	1	FUSE HOLDER	(NLA)
8	-	1	Part 11	406 MM (16") (MAKE FROM R66319, R32024, R32025 AND (2) R32027) (SUB FOR AT12927)
9	T13814	5	Clamp	-
10	AT11855	1	VOLTAGE REGULATOR	(DELCO-REMY NO. 1118779)
11	T13744	1	Clamp	-
12	RE42069	1	STARTER MOTOR KIT	NEUTRAL START (SUB FOR AR26413, APPL)
13	AR26571	1	SOCKET	-
14	AR46271	1	GAUGE	FUEL, (SUB FOR AR26716, R34262 OR AT27153)
15	R44302	1	Tie Band	(SUB FOR F2084R)
16	AT12643	1	SENDER	-
17	-	1	Part 20	GENERATOR
18	-	1	Part 21	OIL PRESSURE, (SUB FOR AT17816)
19	AR28401	1	SWITCH	-
20	AT15543	1	ELECTRICAL LIGHTER	(NLA)
21	AR60937	1	Electrical Lighter	(SUB FOR AA5787R)
22	AT15823	1	WIRING LEAD	(SUB FOR AT12942 OR AT15544) (NLA)
23	AR28403	1	CIRCUIT BREAKER	-
24	AT15823	1	WIRING LEAD	(SUB FOR AT12931) (NLA)
25	AT11889	1	SWITCH	(SUB AT16703 AND AT16704)
25	AT16703	1	SWITCH	-
26	AT15945	1	WIRING HARNESS	-
27	-	1	Part 31	559 MM (22") (MAKE FROM R66321 AND (2) R32021) (SUB FOR AT14039)
