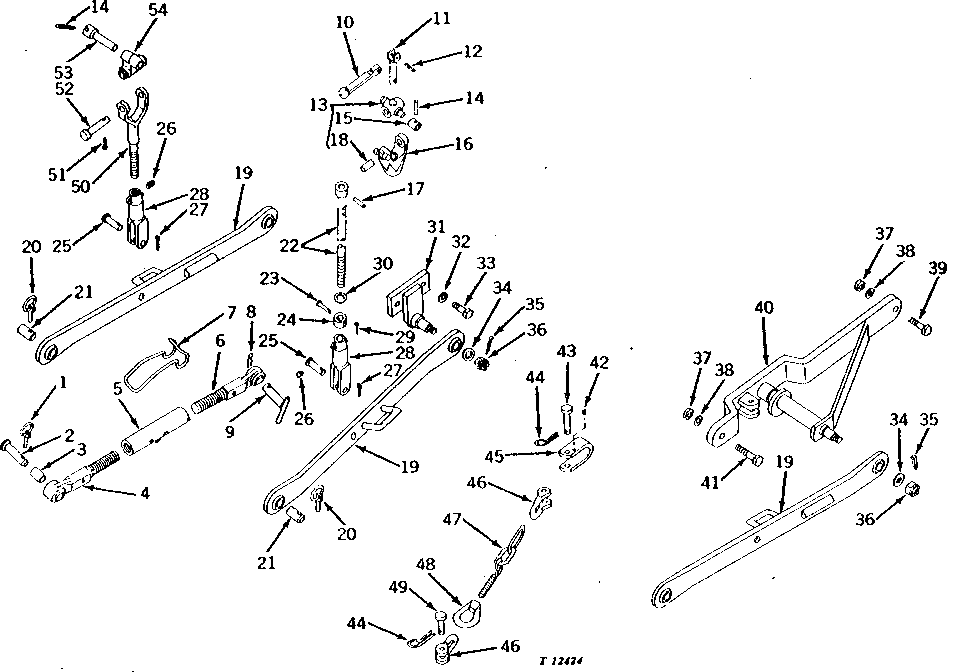

DRAFT LINKS, LIFT LINKS AND CENTER LINK (HI-CROP) [02F15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	B11182	1	QUICK LOCK PIN	(SUB AA21292) (NLA)
2	R58262	1	Pin	(A) (SUB FOR F2682R, R28061 OR R44917)
2	R53296	1	Pin Fastener	(B) (SUB FOR F2683R)
3	T12553	1	Bushing	(A)
4	AT11684	1	END	(NLA)
4	AT16625	1	END	-
5	T16062	1	HOUSING	(NLA)
6	AT11685	1	END	-
7	R42495	1	HANDLE	(SUB FOR R27007)
8	A3581R	1	Spring Locking Pin	-
9	AT21270	1	PIN	(SUB FOR M2071T)
10	T13858	2	GRIP	-
10	T13858	1	GRIP	-
11	T13859	2	SHAFT	-
11	T13859	1	SHAFT	-
12	34H283	2	Spring Pin	3/16" X 1-1/8"
12	34H283	1	Spring Pin	3/16" X 1-1/8"
13	AR26691	2	KNUCKLE	(SUB R26612, (2) R26616 AND R26619)
13	AR26691	1	KNUCKLE	(SUB R26612, (2) R26616 AND R26619)
14	34H335	2	SPRING PIN	5/16" X 2-1/8"
15	R26619	1	BUSHING	-
15	R26619	2	BUSHING	-
16	R26613	1	YOKE	R.H.
16	R26614	1	YOKE	L.H.
17	34H316	2	Spring Pin	1/4" X 1-1/2"
17	34H316	1	Spring Pin	1/4" X 1-1/2"
18	R26616	4	DOWEL PIN	-
18	R26616	2	DOWEL PIN	-
19	AT14284	2	LINK	(NLA)
20	DA5883A	2	QUICK LOCK PIN	(SUB AR62149)
21	R66432	2	Bushing	(A) 54 MM (2.1") (SUB FOR F2684R)
21	R66433	2	Bushing	(A) 64 MM (2.5") (SUB FOR F2685R)
22	T16061	2	STUD	(NLA)
22	T16061	1	STUD	(NLA)
23	R26810	2	Pin Fastener	-
23	R26810	1	Pin Fastener	R.H.
24	R26714	2	BUSHING	-
24	R26714	1	BUSHING	R.H.
25	T12628	2	Pin	-
26	JD7797	2	Lubrication Fitting	-
27	11M7030	2	Cotter Pin	5 X 40 MM
28	T12531	2	CLEVIS	-
29	11M7081	2	Cotter Pin	2.500 X 20 MM
29	11M7081	1	Cotter Pin	2.500 X 20 MM
30	R26808	1	WASHER	0.91 MM (.36")
30	24M7292	1	Washer	1.52 MM (.6") (SUB FOR R26809)
31	AT14287	2	TRUNNION	(C) (NLA)
32	12H294	4	Lock Washer	(C) 5/8"
33	19H1356	4	CAP SCREW	(C) 5/8" X 1-3/4"
34	T10510	2	Washer	(SUB FOR T12623)
34	T17776	2	Washer	-
34	T17776	1	Washer	R.H.
34	T29049	1	Washer	L.H. (SUB FOR T19472)
35	11M7083	2	Cotter Pin	3.200 X 50 MM
36	14H1086	2	Nut	3/4"
37	14H794	4	Nut	3/4"
38	12H236	4	Lock Washer	3/4"
39	19H1782	2	Cap Screw	3/4" X 2-1/4"
40	AT14291	2	TRUNNION	(NLA)
41	19H1440	2	Cap Screw	3/4" X 3"
42	34H245	2	Spring Pin	1/8" X 5/8"
43	T16068	2	Pin	-
44	A3581R	4	Spring Locking Pin	-
45	T16067	2	CLEVIS	(NLA)
46	31603A	4	CLEVIS	-
47	AT14292	2	LINK CHAIN	(NLA)
48	R21342	2	NUT	-
49	RV695A	2	PIN FASTENER	(SUB FOR DA4560A)
50	AT16419	1	YOKE	(NLA)
51	11M7021	1	Cotter Pin	4 X 25 MM, (NLA)
52	T18234	1	PIN	-
53	T18235	1	PIN FASTENER	-
54	T18237	1	UNIVERSAL JOINT	(NLA)

DRAFT LINKS, LIFT LINKS AND CENTER LINK (HI-CROP) [02F15]
