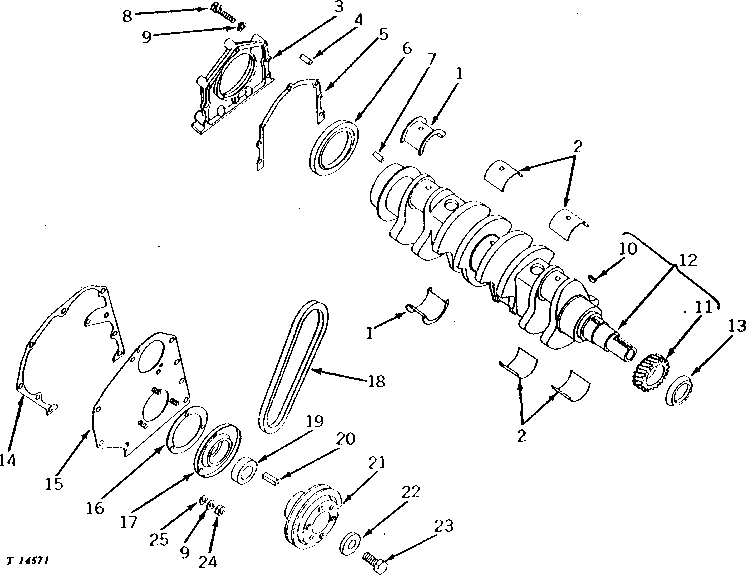

CRANKSHAFT AND MAIN BEARINGS (GASOLINE AND LP-GAS) [01B18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT16295	1	BEARING	(2 HALVES)
1	AT10808	1	BEARING	(2 HALVES)
1	AT16300	1	BEARING	0.76 MM (.030") UNDERSIZE, (2 HALVES)
1	AT10813	1	BEARING	0.76 MM (.030") UNDERSIZE, (2 HALVES)
1	AT24433	1	BEARING	0.51 MM (.020") UNDERSIZE, (2 HALVES)
1	AT24427	1	BEARING	0.51 MM (.020") UNDERSIZE, (2 HALVES)
1	AT24425	1	BEARING	0.25 MM (.010") UNDERSIZE, (2 HALVES)
1	AT24430	1	BEARING	0.05 MM (.002") UNDERSIZE, (2 HALVES)
1	AT24424	1	BEARING	0.05 MM (.002") UNDERSIZE, (2 HALVES)
1	AT24431	1	BEARING	0.25 MM (.010") UNDERSIZE (2 HALVES)
2	-	2	Part 15	(2 HALVES) (ORDER AL27579)
2	AT16297	2	BEARING	0.76 MM (.030") UNDERSIZE, (2 HALVES)
2	AT10810	2	BEARING	0.76 MM (.030") UNDERSIZE, (2 HALVES)
2	AT24421	2	BEARING	0.51 MM (.020") UNDERSIZE, (2 HALVES)
2	AT24416	2	BEARING	0.51 MM (.020") UNDERSIZE, (2 HALVES)
2	AT24419	2	BEARING	0.25 MM (.010") UNDERSIZE, (2 HALVES)
2	AT24414	2	BEARING	0.25 MM (.010") UNDERSIZE (2 HALVES)
2	AT24413	2	BEARING	0.05 MM (.002") UNDERSIZE, (2 HALVES)
2	AT24412	2	BEARING	0.05 MM (.002") UNDERSIZE, (2 HALVES)
2	AT16294	2	BEARING	(2 HALVES)
2	AT10807	2	BEARING	(2 HALVES)
3	T659T	1	HOUSING	(NLA)
4	BP11946	2	DOWEL PIN	(SUB FOR L4126T OR L2139CU) (SUB R42881)
5	T507T	1	GASKET	-
6	AT14199	1	SEAL	(SUB FOR AT345T OR E17475)
7	T504T	1	DOWEL PIN	-
8	19H2569	5	Cap Screw	5/16" X 1-5/8"
9	12H303	8	Lock Washer	5/16"
10	26H77	1	Shaft Key	3/16" X 3/4"
11	T500T	1	GEAR	-
12	AT21048	1	CRANKSHAFT	(ALSO ORDER T504T) (SUB FOR AT349T OR AT15255) (NLA)
13	T509T	1	OIL SLINGER	-
14	T16469	1	GASKET	(SUB FOR T488T)
15	AT14501	1	COVER	(NLA)
15	AT14151	1	COVER	(SUB FOR AT11614) (NLA)
16	T510T	1	GASKET	-
17	T501T	1	PLATE	-
18	T626T	1	V-BELT	-
19	AT344T	1	SEAL	-
20	T424T	1	KEY	-
21	T19435	1	PULLEY	(SUB FOR T17036) (NLA)
22	T18407	1	WASHER	(SUB FOR T425T)
23	19H2635	1	CAP SCREW	9/16" X 1-1/4"
24	14H785	3	Nut	5/16"
25	24H1243	3	WASHER	11/32" X 5/8" X 1/16"
