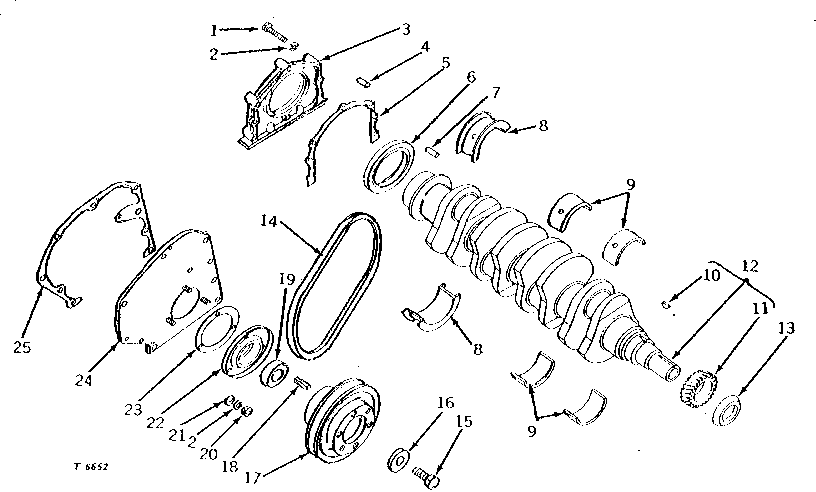

CRANKSHAFT AND MAIN BEARINGS (DIESEL) [01B16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2569	5	Cap Screw	5/16" X 1-5/8"
2	12H303	8	Lock Washer	5/16"
3	T659T	1	HOUSING	(NLA)
4	BP11946	2	DOWEL PIN	(SUB FOR L4126T OR L2139CU) (SUB R42881)
5	T507T	1	GASKET	-
6	AT14199	1	SEAL	(SUB FOR AT345T OR E17475)
7	T504T	1	DOWEL PIN	(CRANKSHAFT TO FLYWHEEL)
8	AT24431	1	BEARING	0.254 MM (.010") UNDERSIZE, (2 HALVES)
8	AT16300	1	BEARING	0.762 MM (.030") UNDERSIZE, (2 HALVES)
8	AT10813	1	BEARING	0.762 MM (.030") UNDERSIZE, (2 HALVES)
8	AT24433	1	BEARING	0.508 MM (.020") UNDERSIZE, (2 HALVES)
8	AT24427	1	BEARING	0.508 MM (.020") UNDERSIZE, (2 HALVES)
8	AT24425	1	BEARING	0.254 MM (.010") UNDERSIZE, (2 HALVES)
8	AT24430	1	BEARING	0.05 MM (.002") UNDERSIZE, (2 HALVES)
8	AT24424	1	BEARING	0.05 MM (.002") UNDERSIZE, (2 HALVES)
8	AT16295	1	BEARING	(2 HALVES)
8	AT10808	1	BEARING	(2 HALVES)
9	AT16297	4	BEARING	0.762 MM (.030") UNDERSIZE, (2 HALVES)
9	AT10810	4	BEARING	0.762 MM (.030") UNDERSIZE, (2 HALVES)
9	AT24421	4	BEARING	0.508 MM (.020") UNDERSIZE, (2 HALVES)
9	AT24416	4	BEARING	0.508 MM (.020") UNDERSIZE, (2 HALVES)
9	AT24419	4	BEARING	O.254 MM (.010") UNDERSIZE, (2 HALVES)
9	AT24414	4	BEARING	0.254 MM (.010") UNDERSIZE (2 HALVES)
9	AT24413	4	BEARING	0.05 MM (.002") UNDERSIZE, (2 HALVES)
9	AT24412	4	BEARING	0.05 MM (.002") UNDERSIZE, (2 HALVES)
9	AT16294	4	BEARING	(2 HALVES) (MARKED T18921 AND T18922)
9	AT10807	4	BEARING	(2 HALVES)
9	-	4	Part 22	(2 HALVES) (ORDER AL27579)
10	26H77	1	Shaft Key	3/16" X 3/4"
11	T500T	1	GEAR	-
12	AT21049	1	CRANKSHAFT	(ALSO ORDER T504T) (SUB FOR AT11002, AT15257 OR T11173)
13	T509T	1	OIL SLINGER	-
14	T626T	1	V-BELT	-
15	19H2635	1	CAP SCREW	9/16" X 1-1/4"
16	T18407	1	WASHER	(SUB FOR T425T)
17	T19435	1	PULLEY	(SUB FOR T17036) (NLA)
18	T424T	1	KEY	(NLA)
19	AT344T	1	SEAL	-
20	14H785	3	Nut	5/16"
21	24H1243	3	WASHER	11/32" X 5/8" X 1/16"
22	T501T	1	PLATE	-
23	T510T	1	GASKET	-
24	AT14154	1	COVER	(SUB FOR AT11737) (NLA)
24	AT14502	1	COVER	(NLA)
25	T16469	1	GASKET	(SUB FOR T488T)

CRANKSHAFT AND MAIN BEARINGS (DIESEL) [01B16]
