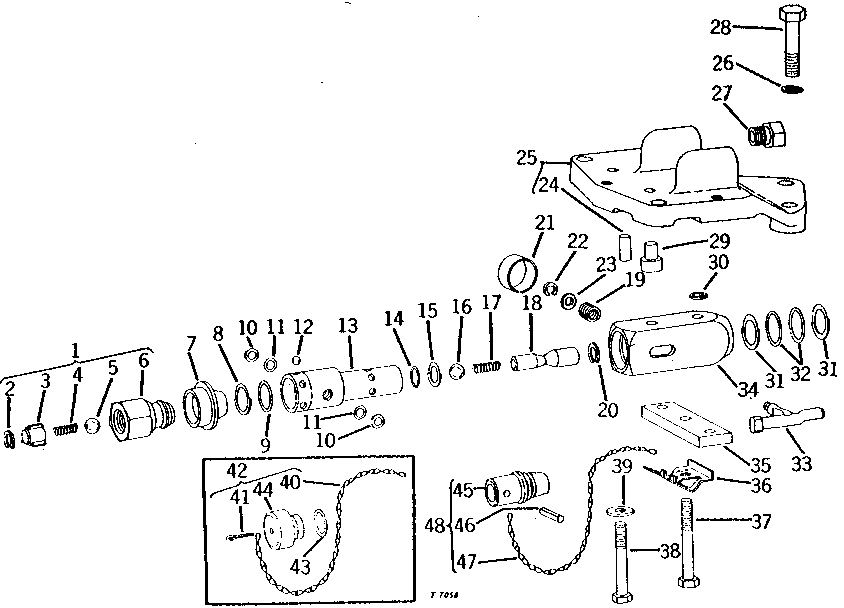

BREAKAWAY COUPLER AND BRACKET (TRACTOR SERIAL NO. 019240-042000) [02G06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR30210	1	HYDR.QUICK COUPLER PLUG	(SUB AR93819)
2	R59633	1	WEAR RING	(SUB FOR R28204)
3	R28085	1	GUIDE	(SUB RE15361)
4	R28084	1	SPRING	-
5	D2361R	1	Ball	-
6	R27430	1	HYD. QUICK-CONNECT COUPLER	(SUB AR93819)
7	R28006	2	CAP	-
8	R26485	1	BACK-UP RING	-
9	R495R	1	O-Ring	-
10	R26484	2	Back-Up Ring	-
11	A3917R	2	O-Ring	-
12	400R	6	Ball	-
13	R28815	1	SOCKET OUTLET	(SUB R34397)
14	R375R	1	O-Ring	-
15	R26482	1	Ring	-
16	D2361R	1	Ball	-
17	R28084	1	SPRING	-
18	R28816	1	PLUG	(SUB R34400)
19	R31890	1	Spring	(SUB FOR R28669)
20	R26483	1	SNAP RING	-
21	R28672	1	BUSHING	-
22	R72653	1	Snap Ring	(SUB FOR M2796T)
23	24H1289	1	Washer	21/64" X 5/8" X 0.049"
24	R28671	2	Dowel Pin	-
25	T19200	1	BRACKET	(ALSO ORDER (2) R28671) (SUB FOR AT15169 OR T17077) (NLA)
26	12H301	2	Lock Washer	1/2"
27	M1370T	2	ADAPTER FITTING	-
28	19H2473	2	Cap Screw	1/2" X 1-3/4"
29	R28673	2	CAM	(NLA)
30	A4847R	2	Washer	-
31	R26480	2	BACK-UP RING	(SUB R65285)
32	A4730R	2	O-Ring	-
33	AR31584	1	LEVER	(SUB FOR AR27880)
33	AR31584	1	LEVER	(SUB FOR AR27881)
34	R28813	1	BREAKAWAY COUPLER	-
34	R28814	1	BREAKAWAY COUPLER	-
35	R28674	1	STRAP	(NLA)
36	R30818	1	SPRING	-
37	19H1944	3	Cap Screw	3/8" X 2-3/4"
38	19H1733	1	CAP SCREW	3/8" X 2-1/2"
39	A4231R	1	WASHER	-
40	R49193	2	Link Chain	(SUB FOR A3184R) (SUB AN163885)
41	11M7084	2	Cotter Pin	5 X 25 MM
42	AR31637	1	PLUG	(SUB AR52623) (SUB FOR AR28257, AR31637 OR AR34059)
43	A3190R	2	O-Ring	-
44	AR52623	1	PLUG	(SUB FOR R28959, R32381, AR34059 OR R32381)
45	AR52623	1	PLUG	(SUB FOR R32381)
46	34H282	2	Spring Pin	3/16" X 1"
47	R49193	2	Link Chain	(SUB FOR A3184R) (SUB AN163885)
48	AR31637	1	PLUG	(SUB AR52623)
