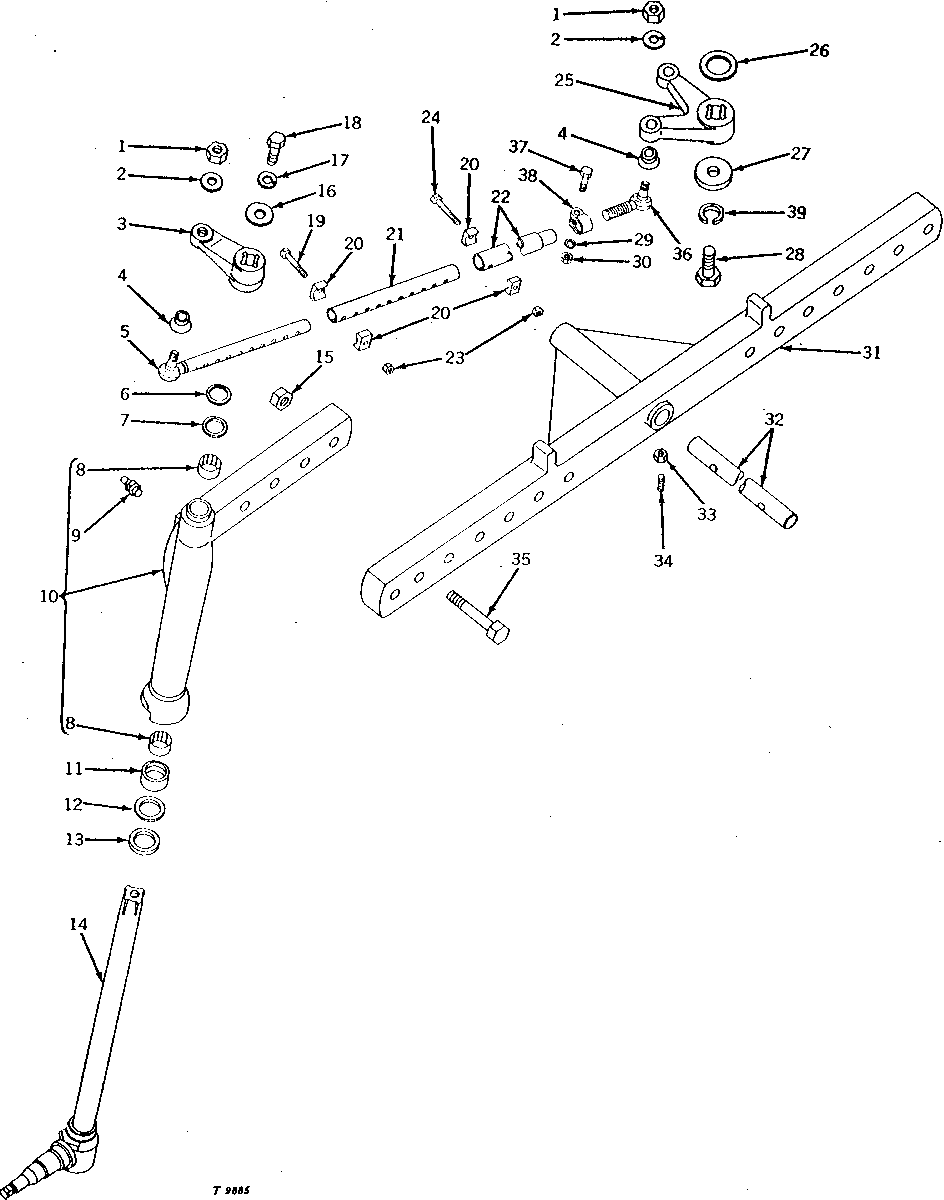

ADJUSTABLE FRONT AXLE (HI-CROP) [02H14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H888	4	Nut	9/16"
2	12H317	4	Lock Washer	9/16"
3	T16017	1	LEVER	L.H. (NLA)
3	T16016	1	LEVER	R.H. (NLA)
4	M648T	4	Dust Shield	(SUB FOR T15688)
5	AT13972	2	TIE ROD ASSEMBLY	-
6	M1250T	1	SHIM	0.69 MM (.027")
7	M1518T	2	WASHER	-
8	JD8821	4	NEEDLE BEARING	(NO LONGER AVAILABLE)
9	JD7759	2	Lubrication Fitting	-
10	AT14254	1	EXTENSION	R.H. (MARKED T16014) (NLA)
10	AT14255	1	EXTENSION	L.H. (MARKED T16015) (NLA)
11	JD8407	2	THRUST BEARING	-
12	M2283T	2	WASHER	-
13	M2282T	2	WASHER	-
14	AT14257	2	SPINDLE	(MARKED T16013) (NLA)
15	14H852	4	Nut	7/8"
16	M1006T	2	WASHER	(NLA)
17	12H294	2	Lock Washer	5/8"
18	19H1756	2	Cap Screw	5/8" X 1-1/2"
19	19H1913	2	Cap Screw	5/16" X 2-1/4"
20	T15690	8	CLAMP	-
21	T15691	2	TUBE	-
22	T15692	1	TUBE	(SUB T18057 AND T17700)
22	T18057	2	TUBE	-
23	BP12232	4	LOCK NUT	(SUB FOR M376T)
23	T16464	4	Lock Nut	-
24	19H1949	2	Cap Screw	5/16" X 2-1/2"
25	T16020	1	ARM	(A) (NLA)
25	T16019	1	ARM	(B) (NLA)
26	D1821R	1	WASHER	(A)
27	F3607R	1	Washer	(B)
27	M1006T	1	WASHER	(A) (NLA)
28	19H1756	1	Cap Screw	(A) 5/8" X 1-1/2"
28	19H1768	1	Cap Screw	(B) 3/4" X 2"
29	12H304	2	Lock Washer	3/8"
29	12H303	2	Lock Washer	5/16"
30	14H1076	2	Nut	3/8" HS, SAE 8
30	14H785	2	Nut	5/16"
31	T16018	1	FRONT AXLE	(NLA)
32	T12786	1	DOWEL PIN	-
33	14H826	2	Nut	1/2"
34	22H988	2	SET SCREW	1/2" X 1-1/4"
35	19H3316	4	CAP SCREW	7/8" X 5"
36	AT13971	2	BALL JOINT	-
37	19H1765	2	Cap Screw	3/8" X 1-3/4"
37	19H3552	2	Cap Screw	5/16" X 1-1/2"
38	M2300T	2	CLAMP	(SUB FOR T15689) (SUB H145112)
38	T17700	2	CLAMP	(NLA)
39	12H294	1	Lock Washer	(A) 5/8"
39	12H236	1	Lock Washer	(B) 3/4"
..	AT16230	2	TIE ROD ASSEMBLY	(COMPLETE) (SUB FOR AT13970) (NLA)

ADJUSTABLE FRONT AXLE (HI-CROP) [02H14]
