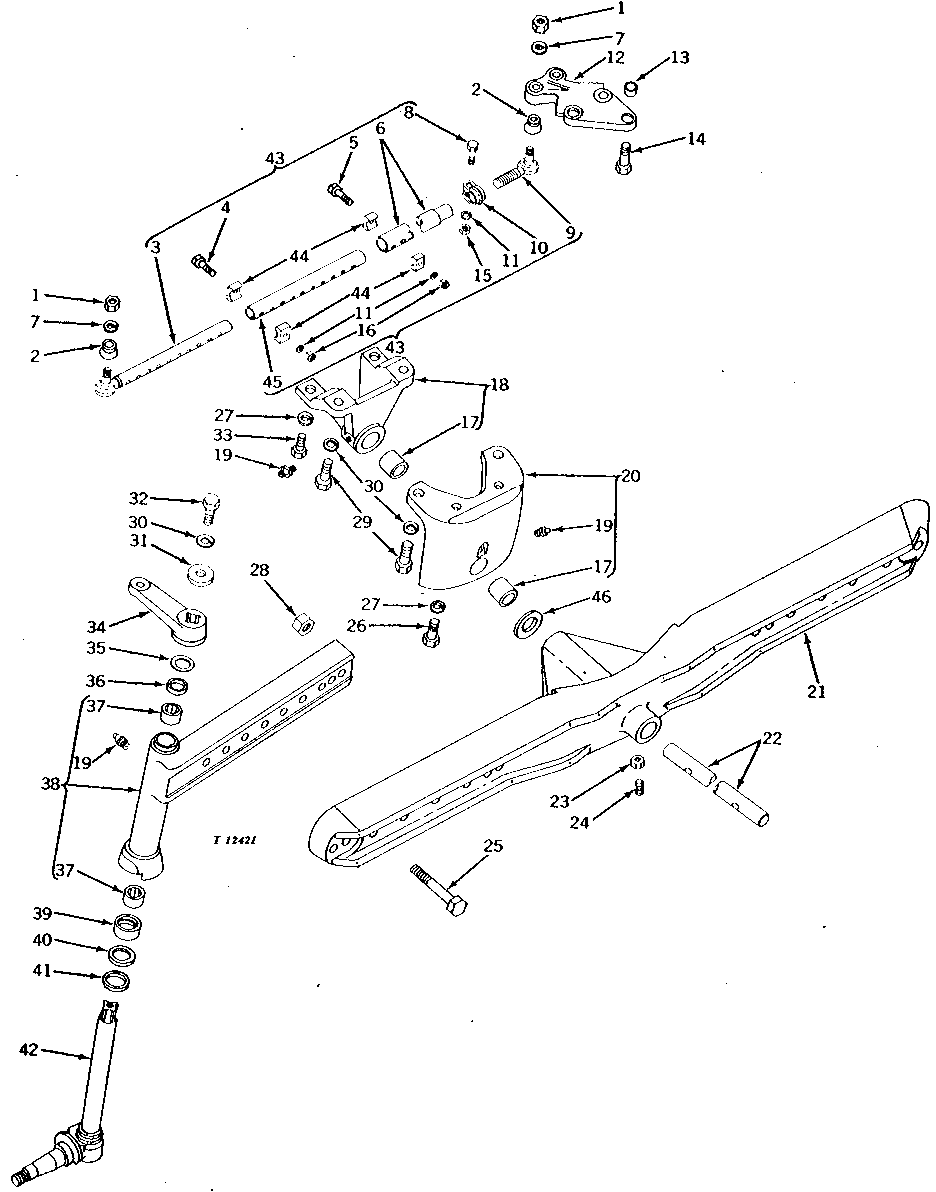

ADJUSTABLE FRONT AXLE (1575-2235MM (62"-88")) (ROW-CROP) [02H06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H888	4	Nut	9/16"
2	M648T	4	Dust Shield	-
3	AT13972	2	TIE ROD ASSEMBLY	-
4	19H1913	2	Cap Screw	5/16" X 2-1/4"
5	19H1949	2	Cap Screw	5/16" X 2-1/2"
6	T17699	2	TUBE	-
7	12H317	4	Lock Washer	9/16"
8	19H3552	2	Cap Screw	5/16" X 1-1/2"
9	AT13971	2	BALL JOINT	-
10	T17700	2	CLAMP	(NLA)
11	12H303	6	Lock Washer	5/16"
12	T13403	1	ARM	(NLA)
13	M14T	2	WASHER	-
14	19H2575	3	CAP SCREW	5/8" X 1-1/2"
15	14H785	2	Nut	5/16"
16	BP12232	1	LOCK NUT	(SUB FOR M376T)
17	T12694	2	BUSHING	-
18	AT12480	1	SUPPORT	(MARKED T13405)
19	JD7759	4	Lubrication Fitting	-
20	AT12479	1	SUPPORT	(MARKED T13404)
21	T17687	1	AXLE	(NLA)
22	T12786	1	DOWEL PIN	-
23	14H826	2	Nut	1/2"
24	22H988	2	SET SCREW	1/2" X 1-1/4"
25	19H2084	4	Cap Screw	3/4" X 4-1/2"
26	19H1831	2	Cap Screw	1/2" X 2"
27	12H301	4	Lock Washer	1/2"
28	14H794	4	Nut	3/4"
29	19H2706	4	Cap Screw	5/8" X 2", HS, SAE 8
30	12H294	6	Lock Washer	5/8"
31	M1006T	2	WASHER	(NLA)
32	19H1756	2	Cap Screw	5/8" X 1-1/2"
33	19H1721	2	CAP SCREW	1/2" X 1-1/2"
34	T13424	1	LEVER	(NLA)
34	T13425	1	LEVER	(NLA)
35	M1250T	1	SHIM	0.69MM (.027")
36	M1518T	2	WASHER	-
37	JD8820	4	NEEDLE BEARING	-
38	AT12482	1	EXTENSION	R.H. (MARKED T13426) (NLA)
38	AT12483	1	EXTENSION	L.H. (MARKED T13427) (NLA)
39	JD8407	2	THRUST BEARING	-
40	M2283T	2	WASHER	-
41	M2282T	2	WASHER	-
42	AT12484	2	SPINDLE	(MARKED T13428) (NLA)
43	AT15904	2	TIE ROD ASSEMBLY	(NLA)
44	T15690	8	CLAMP	-
45	T18855	2	TUBE	(NLA)
46	M4142T	1	WASHER	(SUB M4145T)
46	M4145T	1	SHIM	-

ADJUSTABLE FRONT AXLE (1575-2235MM (62"-88")) (ROW-CROP) [02H06]
