Auxiliary Low Flow Control Valve Hydraulic Lines Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4286986	1	Control Valve	-
2	4295463	2	Pressure Relief Valve	-
7	A853366	1	Elbow Fitting	-
7	AT318035	1	O-Ring	SUB FOR 4506424
8	A852143	2	Adapter Fitting	-
8	4506418	2	O-Ring	SUB FOR FFSB109687
10	A853166	1	Adapter Fitting	SUB FOR THA853166 OR 4189619
10	AT318035	1	O-Ring	SUB FOR 4506424
13	A852333	1	Elbow Fitting	-
13	4297380	1	O-Ring	SUB FOR 4622346, 4674883 OR 4509180
18	4187308	2	O-Ring	SUB FOR 9206366
23	-	1	Part 12	9265573 NLA
24	-	1	Part 15	9232793 NLA
25	-	1	Part 18	9237523 NLA
26	-	1	Part 21	9263866 NLA
34	M800650	1	Packing	SUB FOR 957366
34	4154670	1	Elbow Fitting	SUB FOR A852322
43	4437738	1	Hydraulic Hose	SUB FOR 4445271, TH4437738, 4488626 OR 9190867
44	4631505	1	Hydraulic Hose	-
48	T24432	1	Clamp	SUB FOR 4190277
49	AT131725	1	Clip	SUB FOR 4190291
50	-	1	Part 30	J271020 NLA
50	19M7938	1	Cap Screw	M10 X 20, SUB FOR J901020
50	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
53	H77698	3	Tie Band	SUB FOR 4055312
54	H77698	14	Tie Band	SUB FOR 4121859
55	-	1	Part 35	9273835 NLA
55	4451836	1	Hydraulic Hose	-
55	-	1	Part 37	4327315 NLA, MAKE FROM E90991 CTL
95	-	1	Part 38	(Additional Components On Separate Pages) 2.91 m, Arm Low Flow Auxiliary Lines, AT337184 NLA, WHOLE GOODS
23A	4488228	1	Hydraulic Hose	-
23B	-	1	Part 14	4327315 NLA, MAKE FROM E90991 CTL
24A	4661331	1	Hydraulic Hose	-
24B	-	1	Part 17	4327315 NLA, MAKE FROM E90991 CTL
25A	4661332	1	Hydraulic Hose	-
25B	-	1	Part 20	-
26A	4641744	1	Hydraulic Hose	-
26B	-	1	Part 23	4446406 NLA, MAKE FROM XHG-100 CTL

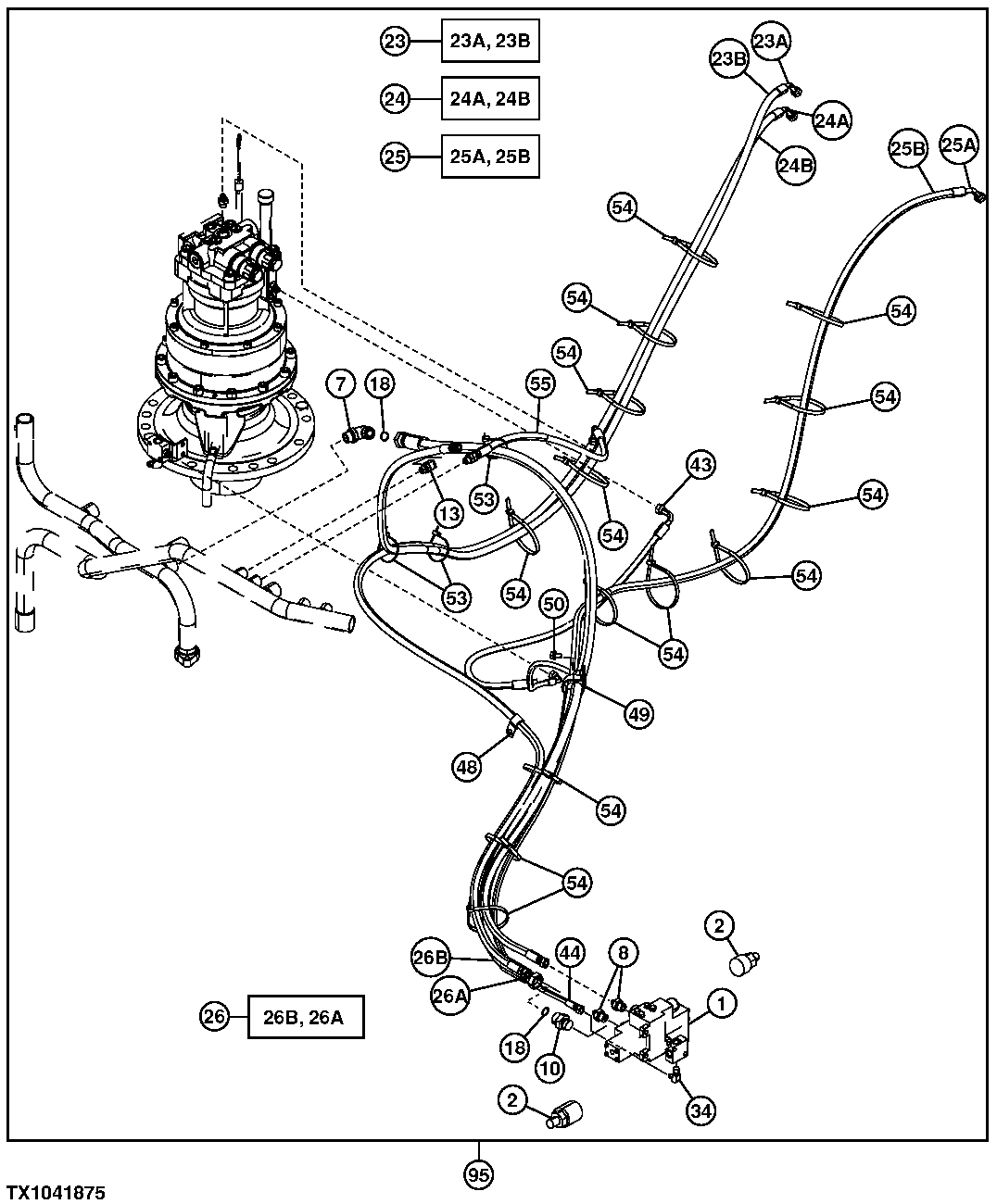

Auxiliary Low Flow Control Valve Hydraulic Lines Kit
