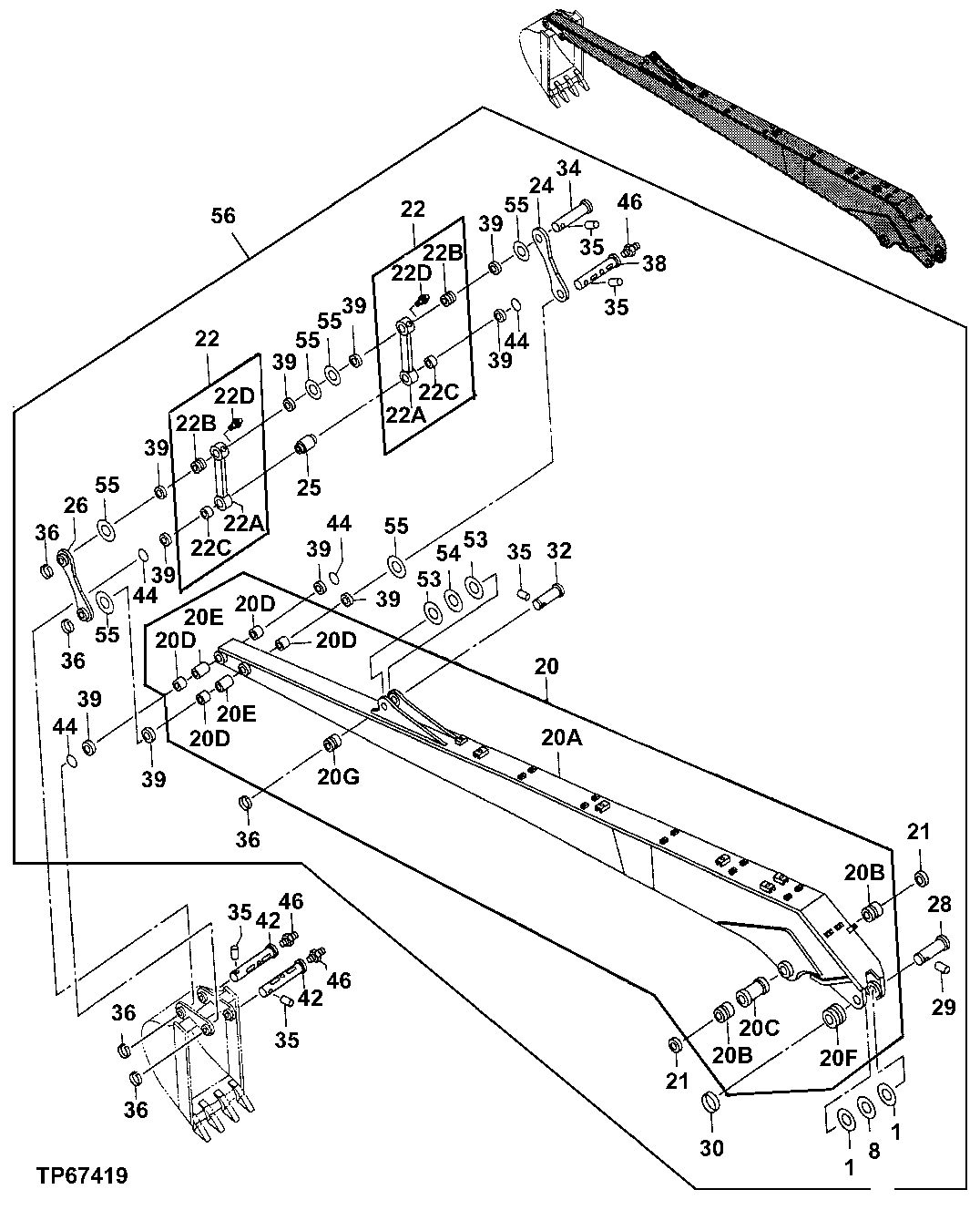

SUPER LONG FRONT ARM AND BUCKET LINKAGE ( -31OCT04)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4366691	2	Thrust Washer	(SUB FOR AT214029)
8	4367409	1	Thrust Washer	(SUB FOR AT214039)
20	7031847	1	Arm	(SUB FOR <service-part qty="1">AT186460</service-part>)(CA)
21	TH102446	2	Seal	-
22	8072993	2	Link	(SUB FOR AT186461)
24	4287250	1	Link	(SUB FOR AT159599)
25	4287249	1	Spacer	(SUB FOR AT159600)
26	9738223	1	Link	(SUB FOR AT159598)
28	3071063	1	Pin Fastener	(SUB FOR AT186462)
29	4098713	1	Pin	(SUB FOR TH103627)
30	4098712	1	Ring	(SUB FOR TH103629)
32	P60925	1	Pin Fastener	-
34	AT159601	1	Pin	-
35	4065689	5	Pin Fastener	(SUB FOR TH100625)
36	4065688	5	Retainer	(SUB FOR TH100624)
38	AT318041	1	Pin Fastener	(SUB FOR 3058763, AT159602)
39	TH100374	10	Seal	-
42	AT159603	2	Pin	-
44	4066923	4	O-Ring	(SUB FOR AT121233)
46	TH100074	3	Lubrication Fitting	-
53	P60447	2	Plate	-
54	4367411	1	Plate	(SUB FOR P60449)
55	4366693	6	Plate	(SUB FOR AT186463)
56	-	1	Part 35	Installed On Units Prior To November 2004 Long Front Assembly Kit Contains All Items On This Page - Additional Components Listed On Separate Pages, (WHOLE GOODS) ( AT186457 NLA)(ALSO ORDER T190565, T153672, T153673, AH165671 AND AH165673 )
20A	-	1	Part 4	(CA)
20B	3072697	2	Bushing	(SUB FOR AT213781)
20C	4370876	1	Spacer	(SUB FOR AT186464)
20D	AT122209	4	Bushing	-
20E	4287248	2	Bushing	(SUB FOR AT186465 ) (SUB FOR AT159595)
20F	TH104509	1	Bushing	-
20G	TH108649	1	Bushing	-
22A	-	1	Part 13	-
22B	4371132	1	Bushing	(SUB FOR AT186466)
22C	AT122209	1	Bushing	(SUB FOR P61799)
22D	TH100074	1	Lubrication Fitting	-

SUPER LONG FRONT ARM AND BUCKET LINKAGE ( -31OCT04)
