RADIATOR COMPARTMENT PANELS, COVER AND ISOLATORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	19M7662	5	Cap Screw	M10 X 30
3	-	1	Part 2	( DH900150 NLA), (SUB FOR THDH900150)
4	DH700015	1	Support	(SUB FOR THDH700015)
5	DH600004	1	Support	(SUB FOR THDH600004)
6	4415013	1	Isolator	(SUB FOR TH4415013)
7	4425577	1	Isolator	(SUB FOR TH4425577)
8	-	1	Part 7	( DH400292 AND THDH400292 NLA)
9	-	1	Part 8	( DH400293 AND THDH400293 NLA)
10	-	1	Part 9	( DH400294 AND THDH400294 NLA)
11	-	1	Part 10	( DH400295 AND THDH400295 NLA)
12	-	1	Part 11	( DH400296 AND THDH400296 NLA)
13	19M7662	4	Cap Screw	M10 X 30
14	DH900300	1	Latch	( 9751797 NLA), (SUB FOR TH9751797)
15	24M7054	1	Washer	6.400 X 12 X 1.600 mm
16	M800051	1	Pin	(SUB FOR CH10542)
17	4609950	2	Stop	(SUB FOR TH4424157, 4424157)
18	DH800073	1	Bracket	(SUB FOR DH300063)
20	19M7550	2	Cap Screw	M10 X 35
21	24M7346	2	Washer	11 X 20 X 2 mm
22	4431357	1	Stop	(SUB FOR TH4431357)
23	19M7177	2	Cap Screw	M6 X 35
24	19M7662	4	Cap Screw	M10 X 30
29	DH700014	1	Cover	(SUB FOR THDH700014)
31	DH700035	1	Cover	(SUB FOR THDH700035)
32	DH700028	1	Cover	(SUB FOR THDH700028)
33	19M7662	2	Cap Screw	M10 X 30
34	12M7058	2	Lock Washer	12 mm, (SUB FOR 12M7067)
35	24M7346	2	Washer	11 X 20 X 2 mm
39	12M7066	5	Lock Washer	10 mm
40	24M7028	5	Washer	10.500 X 20 X 2 mm
41	12M7058	4	Lock Washer	12 mm, (SUB FOR 12M7067)
42	24M7346	4	Washer	11 X 20 X 2 mm
43	12M7066	2	Lock Washer	10 mm
44	12M7012	2	LOCK WASHER	6 mm
45	24M7054	2	Washer	6.400 X 12 X 1.600 mm
46	12M7066	4	Lock Washer	10 mm
47	24M7028	4	Washer	10.500 X 20 X 2 mm
48	-	1	Part 38	( DH700015F NLA)
49	DH800063	1	Bracket	-
50	DH800064	1	Bracket	-

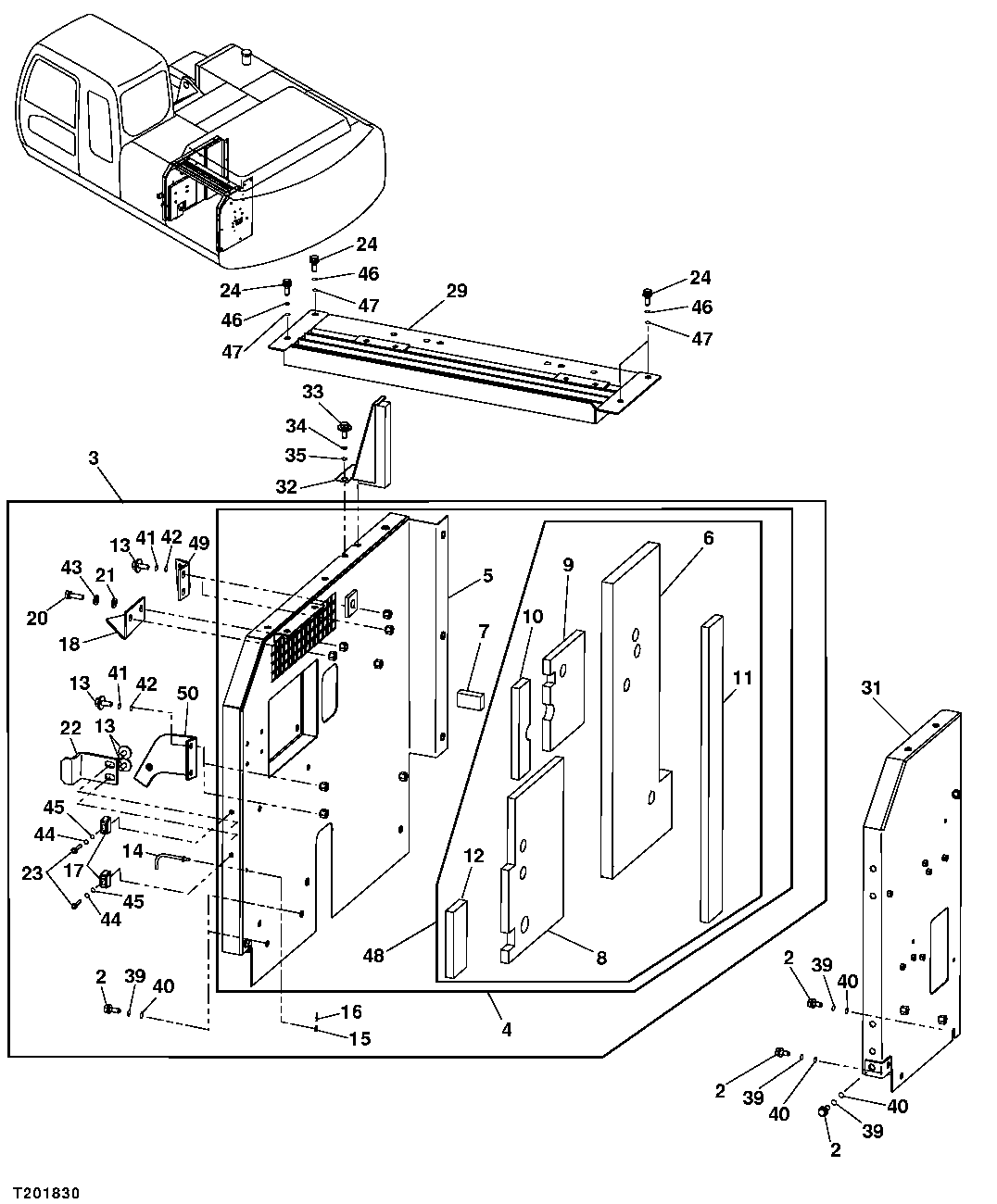

RADIATOR COMPARTMENT PANELS, COVER AND ISOLATORS
