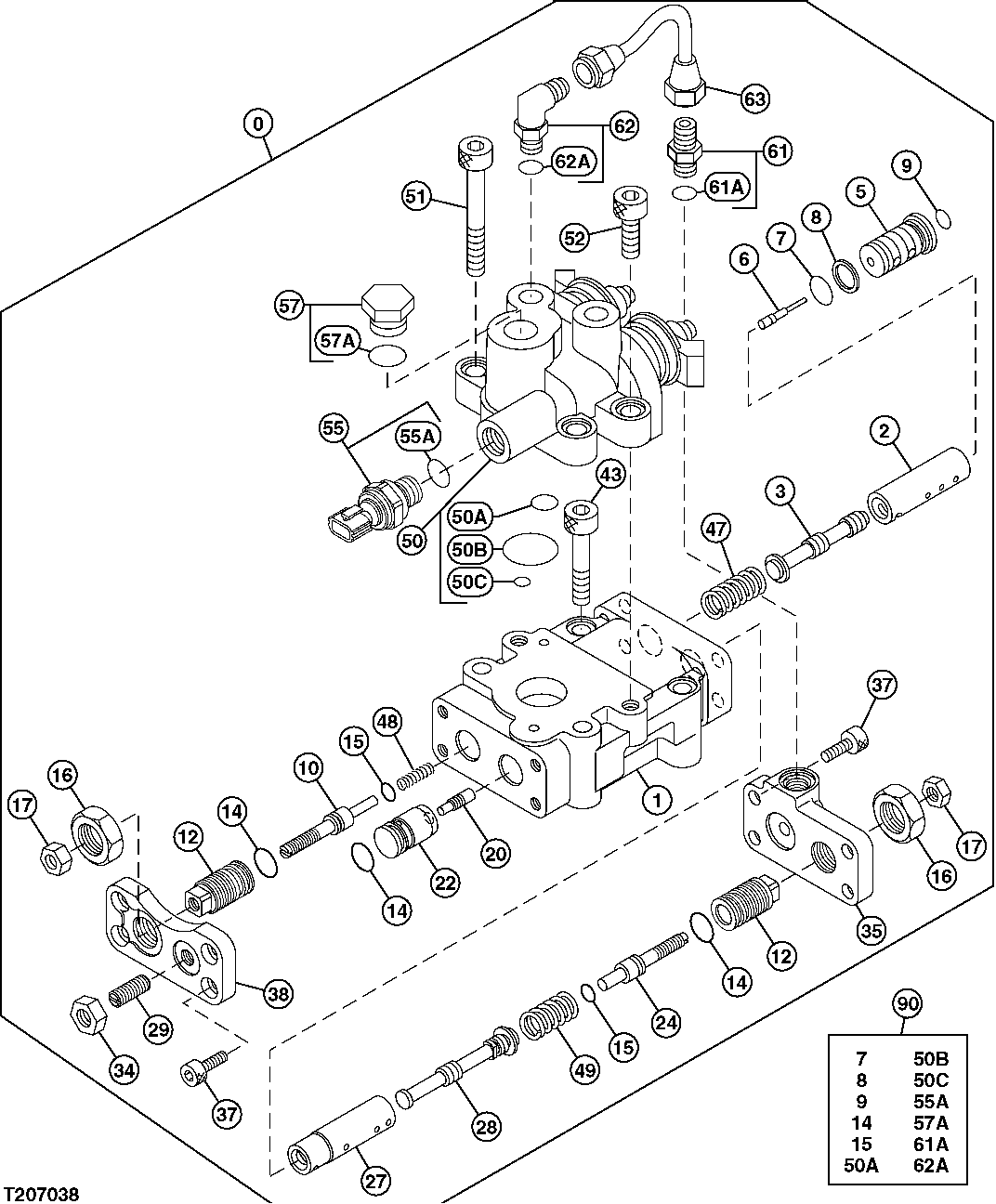

MAIN HYDRAULIC PUMP LEFT HAND REGULATOR

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9198935	1	Regulator	(SUB FOR TH9198935)
1	-	1	Part 2	( <service-part>TH1026282</service-part> NLA)
2	4179155	1	Sleeve	(SUB FOR TH109892)
3	4179156	1	Spool	(SUB FOR TH109893)
5	4422202	1	Piston	(SUB FOR TH4422202)
6	4422188	1	Flow Control Hyd. Valve	-
7	TH102560	1	O-Ring	(K) 15.800 X 2.400 mm (0.622" X 3/32")
8	4085607	1	Back-Up Ring	(K) (SUB FOR TH102562)
9	CH11560	1	Packing	(K)
10	4368619	1	Stop	SUB FOR AT214045
12	4179161	2	Stop	SUB FOR TH109898
14	4342843	3	O-Ring	(K) SUB FOR AT213892
15	4342841	2	O-Ring	(K) SUB FOR AT213891
16	4068898	2	Nut	M20, SUB FOR TH102567
17	14M7273	2	Nut	M8
20	4179171	1	Piston	SUB FOR TH109911
22	4451498	1	Piston	SUB FOR TH4451498
24	4347107	1	Stop	SUB FOR AT213917
27	4346522	1	Sleeve	SUB FOR AT213913
28	4346521	1	Valve Spool	SUB FOR AT213912
29	22M7098	1	Set Screw	M10 X 25, SUB FOR AT201005 OR 4265964
34	14M7274	1	Nut	M10
35	3075775	1	End Plate	SUB FOR AT213794
37	19M8446	8	Screw	M8 X 20
38	-	1	Part 25	4433327 NSEP; SUB FOR AT192511
43	19M8339	2	Screw	M10 X 55
47	4194176	1	Compression Spring	SUB FOR TH111263
48	4423345	1	Spring	(SUB FOR TH4423345)
49	4350928	1	Compression Spring	SUB FOR AT213951
50	9218269	1	Solenoid Valve	SUB FOR TH4400442 OR 4400442
51	19M9763	2	Screw	M10 X 80, SUB FOR M341080
52	19M8337	2	Screw	M10 X 30
55	4436536	1	Sensor	SUB FOR TH4436536
57	4174541	1	Fitting	SUB FOR TH110477
61	4255304	1	Fitting	SUB FOR AT155270
62	4293950	1	Fitting	SUB FOR AT160584
63	4436800	1	Oil Line	SUB FOR TH4436800
90	4455733	1	Seal Kit	(SUB FOR <service-part qty="1">TH4455733</service-part> OR <service-part qty="1">4455733</service-part>)(CONTAINS ALL PARTS MARKED K)
50A	TH102560	1	O-Ring	15.800 X 2.400 mm (0.622" X 3/32")
50B	4153534	1	O-Ring	-
50C	4153087	1	O-Ring	-
55A	CH11570	1	O-Ring	(K) 13.800 X 2.400 mm (0.543" X 3/32")
57A	4506418	1	O-Ring	(K) 17.800 X 2.400 mm (0.701" X 3/32"), SUB FOR U46489
61A	M800650	1	Packing	(K)
62A	M800650	1	Packing	(K)

MAIN HYDRAULIC PUMP LEFT HAND REGULATOR
